Product series
VVS stainless steel
Applications

Screw to connect couplings for high pressure applications, Faster interchange, stainless steel

Screw-on stainless steel (AISI 316) couplings commonly used for applications characterized by very high working pressures and peaks. High resistance to corrosion. Heavy duty internal components guarantee the maximum safety and reliability. Faster proprietary profile.
Downloads
Female

Female

Filter items
Units
PartNumber Thread Details HEX1 HEX3 D1 L1
6,3 1/4" VVS 14 GAS F 2V BSPP 1/4" FEMALE
Specs
Flow Rate: 8 (l/min) at 0.2 MPa 2.113 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 206.6 g 0.46 lb
22 0.87 27 1.06 30 1.18 2.68 68
6,3 1/4" VVS 14 NPT F 2V NPTF 1/4" FEMALE
Specs
Flow Rate: 8 (l/min) at 0.2 MPa 2.113 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 206.6 g 0.46 lb
22 0.87 27 1.06 30 1.18 2.68 68
10 3/8" VVS 38 GAS F 2V BSPP 3/8" FEMALE
Specs
Flow Rate: 18 (l/min) at 0.2 MPa 4.755 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 387.2 g 0.85 lb
30 1.18 36 1.42 40 1.57 2.97 75.4
10 3/8" VVS 38 NPT F 2V NPTF 3/8" FEMALE
Specs
Flow Rate: 18 (l/min) at 0.2 MPa 4.755 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 390.4 g 0.86 lb
30 1.18 36 1.42 40 1.57 2.99 76
12,5 1/2" VVS 12 GAS F 2V BSPP 1/2" FEMALE
Specs
Flow Rate: 30 (l/min) at 0.2 MPa 7.925 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 588.8 g 1.3 lb
34 1.34 41 1.61 45 1.77 3.43 87
12,5 1/2" VVS 12 NPT F 2V NPTF 1/2" FEMALE
Specs
Flow Rate: 30 (l/min) at 0.2 MPa 7.925 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 588.8 g 1.3 lb
34 1.34 41 1.61 45 1.77 3.43 87
20 3/4" VVS 34 GAS F 2V BSPP 3/4" FEMALE
Specs
Flow Rate: 45 (l/min) at 0.2 MPa 11.888 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 1007.7 g 2.22 lb
41 1.61 50 1.97 55 2.17 4.17 106
20 3/4" VVS 34 NPT F 2V NPTF 3/4" FEMALE
Specs
Flow Rate: 45 (l/min) at 0.2 MPa 11.888 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 1023.7 g 2.26 lb
41 1.61 50 1.97 55 2.17 4.17 106
25 1" VVS 1 GAS F 2V BSPP 1" FEMALE
Specs
Flow Rate: 90 (l/min) at 0.2 MPa 23.775 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 1501 g 3.31 lb
50 1.97 55 2.17 60 2.36 4.88 124
25 1" VVS 1 NPT F 2V NPTF 1" FEMALE
Specs
Flow Rate: 90 (l/min) at 0.2 MPa 23.775 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 1505.5 g 3.32 lb
50 1.97 55 2.17 60 2.36 4.88 124
31,5 1-1/4" VVS114 GAS F 2V BSPP 1-1/4" FEMALE
Specs
Flow Rate: 140 (l/min) at 0.2 MPa 36.984 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 2994.5 g 6.6 lb
65 2.56 75 2.95 80 3.15 6.02 153
31,5 1-1/4" VVS114 NPT F 2V NPTF 1-1/4" FEMALE
Specs
Flow Rate: 140 (l/min) at 0.2 MPa 36.984 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 3014 g 6.64 lb
65 2.56 75 2.95 80 3.15 6.02 153
37,5 1-1/2" VVS112 GAS F 2V BSPP 1-1/2" FEMALE
Specs
Flow Rate: 300 (l/min) at 0.2 MPa 79.252 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
75 2.95 90 3.54 98 3.86 6.77 172
37,5 1-1/2" VVS112 NPT F 2V NPTF 1-1/2" FEMALE
Specs
Flow Rate: 300 (l/min) at 0.2 MPa 79.252 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
75 2.95 90 3.54 98 3.86 6.77 172
50 2" VVS 2 GAS F 2V BSPP 2" FEMALE
Specs
Flow Rate: 1000 (l/min) at 0.2 MPa 264.172 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
100 3.94 125 4.92 129 5.08 8.15 207
50 2" VVS 2 NPT F 2V NPTF 2" FEMALE
Specs
Flow Rate: 1000 (l/min) at 0.2 MPa 264.172 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 7470.1 g 16.47 lb
100 3.94 125 4.92 129 5.08 8.15 207
Male

Male

Filter items
Units

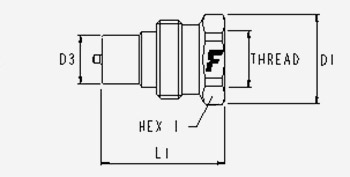

PartNumber Thread Specs HEX1 D1 D3 L1
6,3 1/4" VVS 14 GAS M 2V BSPP 1/4" FEMALE
Specs
Flow Rate: 8 (l/min) at 0.2 MPa 2.113 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 90.7 g 0.2 lb
25 0.98 28 1.1 14.1 0.56 1.69 43
6,3 1/4" VVS 14 NPT M 2V NPTF 1/4" FEMALE
Specs
Flow Rate: 8 (l/min) at 0.2 MPa 2.113 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 92.6 g 0.2 lb
25 0.98 28 1.1 14.1 0.56 1.69 43
10 3/8" VVS 38 GAS M 2V BSPP 3/8" FEMALE
Specs
Flow Rate: 18 (l/min) at 0.2 MPa 4.755 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 158.9 g 0.35 lb
32 1.26 35 1.38 18.9 0.74 1.89 48
10 3/8" VVS 38 NPT M 2V NPTF 3/8" FEMALE
Specs
Flow Rate: 18 (l/min) at 0.2 MPa 4.755 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 61 g 0.13 lb
32 1.26 35 1.38 18.9 0.74 1.89 48
12,5 1/2" VVS 12 GAS M 2V BSPP 1/2" FEMALE
Specs
Flow Rate: 30 (l/min) at 0.2 MPa 7.925 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 196.1 g 0.43 lb
34 1.34 38 1.5 20.5 0.81 2.09 53
12,5 1/2" VVS 12 NPT M 2V NPTF 1/2" FEMALE
Specs
Flow Rate: 30 (l/min) at 0.2 MPa 7.925 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 196.1 g 0.43 lb
34 1.34 38 1.5 20.5 0.81 2.09 53
20 3/4" VVS 34 GAS M 2V BSPP 3/4" FEMALE
Specs
Flow Rate: 45 (l/min) at 0.2 MPa 11.888 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 375 g 0.83 lb
65 2.56 50 1.97 27.9 1.1 2.48 63
20 3/4" VVS 34 NPT M 2V NPTF 3/4" FEMALE
Specs
Flow Rate: 45 (l/min) at 0.2 MPa 11.888 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 387 g 0.85 lb
46 1.81 50 1.97 27.9 1.1 2.48 63
25 1" VVS 1 GAS M 2V BSPP 1" FEMALE
Specs
Flow Rate: 90 (l/min) at 0.2 MPa 23.775 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 533.8 g 1.18 lb
50 1.97 55 2.17 31.3 1.23 2.83 72
25 1" VVS 1 NPT M 2V NPTF 1" FEMALE
Specs
Flow Rate: 90 (l/min) at 0.2 MPa 23.775 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 549.5 g 1.21 lb
50 1.97 55 2.17 31.3 1.23 2.83 72
31,5 1-1/4" VVS114 GAS M 2V BSPP 1-1/4" FEMALE
Specs
Flow Rate: 140 (l/min) at 0.2 MPa 36.984 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 1079.5 g 2.38 lb
65 2.56 70 2.76 43.9 1.73 3.39 86
31,5 1-1/4" VVS114 NPT M 2V NPTF 1-1/4" FEMALE
Specs
Flow Rate: 140 (l/min) at 0.2 MPa 36.984 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 1075.9 g 2.37 lb
65 2.56 70 2.76 43.9 1.73 3.39 86
37,5 1-1/2" VVS112 GAS M 2V BSPP 1-1/2" FEMALE
Specs
Flow Rate: 300 (l/min) at 0.2 MPa 79.252 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 1746 g 3.85 lb
80 3.15 84 3.31 53.4 2.1 3.74 95
37,5 1-1/2" VVS112 NPT M 2V NPTF 1-1/2" FEMALE
Specs
Flow Rate: 300 (l/min) at 0.2 MPa 79.252 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
80 3.15 84 3.31 53.4 2.1 3.74 95
50 2" VVS 2 GAS M 2V BSPP 2" FEMALE
Specs
Flow Rate: 1000 (l/min) at 0.2 MPa 264.172 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
Weight: 4321.6 g 9.53 lb
110 4.33 115 4.53 81.9 3.22 4.65 118
50 2" VVS 2 NPT M 2V NPTF 2" FEMALE
Specs
Flow Rate: 1000 (l/min) at 0.2 MPa 264.172 (gal/min) at 0.2 MPa
Temperature: -20 °C to 200 °C -4 °F to 392 °F
Seals: FKM
110 4.33 115 4.53 81.9 3.22 4.65 118
  • Dust Protections

Accessories & Spares

Aluminium caps female Dust Protection - Aluminium - Female
Size Part Number Color
1"
25 mm
TMV 1 S
Metal
1/2"
12,5 mm
TMV 12 S
Metal
1/4"
6,3 mm
TMV 14 S
Metal
2"
50 mm
TMV 2 S
Metal
3/4"
20 mm
TMV 34 S
Metal
3/8"
10 mm
TMV 38 S
Metal
1-1/2"
37,5 mm
TMV112 S
Metal
1-1/4"
31,5 mm
TMV114 S
Metal
1/2"
12,5 mm
TMVM 12 SN
Metal
1/2"
12,5 mm
TMVM 12 SR
Red
3/8"
10 mm
TMVM 38 SB
Blue
3/8"
10 mm
TMVM 38 SG
Yellow
3/8"
10 mm
TMVM 38 SN
Black
3/8"
10 mm
TMVM 38 SR
Red
Aluminium caps male Dust Protection - Aluminium - Male
Size Part Number Color
1"
25 mm
TFV 1 S
Metal
1/2"
12,5 mm
TFV 12 S
Metal
1/4"
6,3 mm
TFV 14 S
Metal
2"
50 mm
TFV 2 S
Metal
3/4"
20 mm
TFV 34 S
Metal
3/8"
10 mm
TFV 38 S
Metal
1-1/2"
37,5 mm
TFV112 S
Metal
1-1/4"
31,5 mm
TFV114 S
Metal
1/2"
12,5 mm
TFVM 12 SR
Red
3/8"
10 mm
TFVM 38 SB
Blue
3/8"
10 mm
TFVM 38 SG
Yellow
3/8"
10 mm
TFVM 38 SN
Black
3/8"
10 mm
TFVM 38 SR
Red
Stainless Steel caps female Dust Protection - Stainless Steel - Female
Size Part Number Color
1"
25 mm
TMV 1 SS
Metal
1/2"
12,5 mm
TMV 12 SS
Metal
1/4"
6,3 mm
TMV 14 SS
Metal
2"
50 mm
TMV 2 SS
Metal
3/4"
20 mm
TMV 34 SS
Metal
1-1/2"
37,5 mm
TMV112 SS
Metal
1-1/4"
31,5 mm
TMV114 SS
Metal
Stainless Steel caps male Dust Protection - Stainless Steel - Male
Size Part Number Color
1"
25 mm
TFV 1 SS
1/2"
12,5 mm
TFV 12 SS
1/4"
6,3 mm
TFV 14 SS
Metal
2"
50 mm
TFV 2 SS
3/4"
20 mm
TFV 34 SS
3/8"
10 mm
TFV 38 SS
Metal
1-1/2"
37,5 mm
TFV112 SS
Metal
1-1/4"
31,5 mm
TFV114 SS
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
04 6.3 1/4" 60 MPa 8702.264 psi 8 2.113 0.4 180 MPa 26106.793 psi 280 MPa 40610.567 psi 280 MPa 40610.567 psi
06 10 3/8" 65 MPa 9427.453 psi 18 4.755 0.8 195 MPa 28282.359 psi 200 MPa 29007.548 psi 250 MPa 36259.435 psi
08 12.5 1/2" 60 MPa 8702.264 psi 30 7.925 1.3 180 MPa 26106.793 psi 195 MPa 28282.359 psi 245 MPa 35534.246 psi
12 20 3/4" 50 MPa 7251.887 psi 45 11.888 1.8 150 MPa 21755.661 psi 160 MPa 23206.038 psi 190 MPa 27557.17 psi
16 25 1" 46 MPa 6671.736 psi 90 23.775 8 150 MPa 21755.661 psi 140 MPa 20305.283 psi 160 MPa 23206.038 psi
20 31.5 1-1/4" 38 MPa 5511.434 psi 140 36.984 15 115 MPa 16679.34 psi 120 MPa 17404.529 psi 150 MPa 21755.661 psi
24 37.5 1-1/2" 36 MPa 5221.359 psi 300 79.252 38 110 MPa 15954.151 psi 140 MPa 20305.283 psi 155 MPa 22480.849 psi
32 50 2" 21 MPa 3045.792 psi 1000 264.172 46 65 MPa 9427.453 psi 75 MPa 10877.83 psi 85 MPa 12328.208 psi
Material:
Stainless Steel
Seals:
FKM
Working temperatures:
-20 °C to 200 °C -4 °F to 392 °F
Specifications:
Series Interchange: FASTER
Valve Type: Poppet
Connection: Screw to Connect
Disconnection: Unscrew to Disconnect
Connection Under Pressure: Allowed Residual
