Product series
PS06-x
Applications
Agriculture

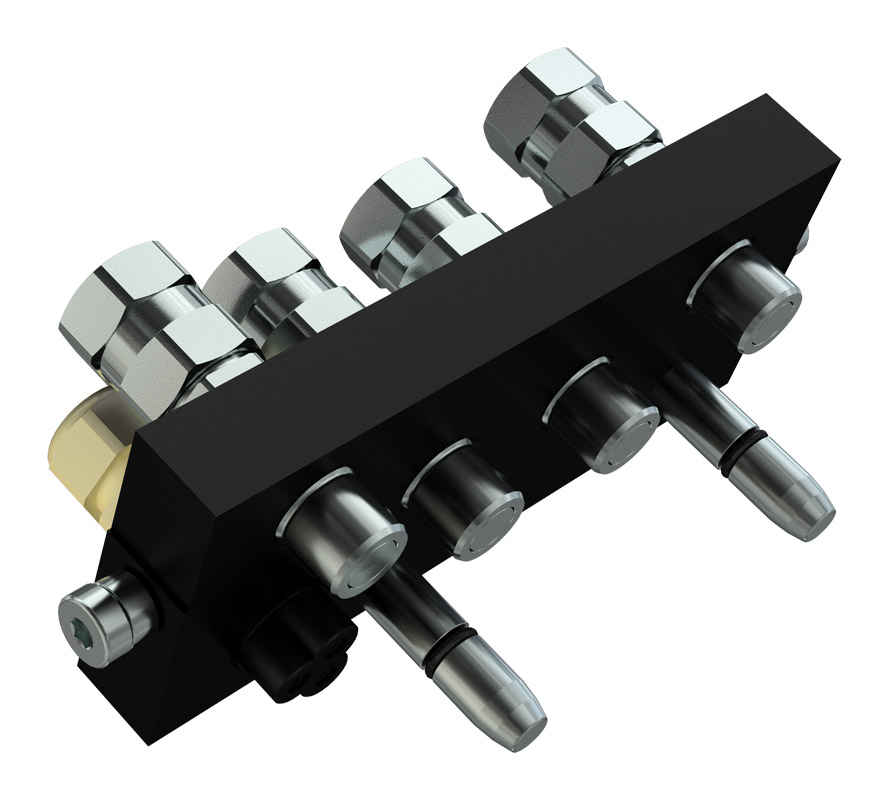

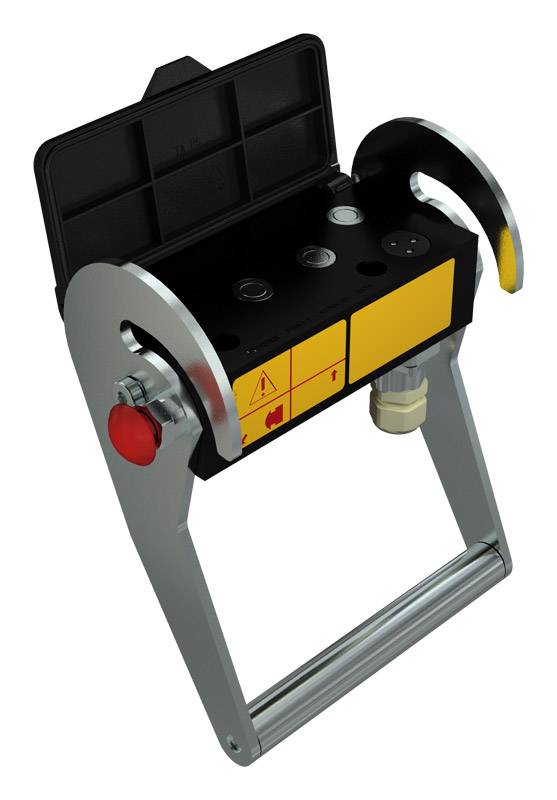

MultiFaster 5 lines. 4 lines size 06 (3/8"), 1 line size 08 (1/2").

Multifaster suitable for 4 lines size 06 + 1 line size 08. The additional line could be either an electrical connector or an hydraulic coupling.

Configure your Multifaster

Female

Filter items
Units
PartNumber Details Housings Couplings Electrical Contacts
10 & 12,5 3/8" & 1/2" 2PS06-1-4-12GFC
Specs
4 x Couplings 3/8":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :3 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR

For more information contact us: [email protected]
5 4 1
10 & 12,5 3/8" & 1/2" 2PS06-1-4-2/2FC
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :3 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3543 g 7.81 lb

For more information contact us: [email protected]
5 4 1
10 & 12,5 3/8" & 1/2" 2PS06-1-4-38GFC
Specs
4 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :3 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR

For more information contact us: [email protected]
5 4 1
10 & 12,5 3/8" & 1/2" 2PS06-A-4-2/2FC
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :7 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR

For more information contact us: [email protected]
5 4 1

Male

Filter items
Units
PartNumber Specs Housings Couplings Electrical Contacts
10 & 12,5 3/8" & 1/2" 2PS06-0-4-2/2MC
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1670 g 3.68 lb

For more information contact us: [email protected]
5 4
10 & 12,5 3/8" & 1/2" 2PS06-1-4-12GMC
Specs
4 x Couplings 3/8":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :3 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1778.8 g 3.92 lb

For more information contact us: [email protected]
5 4 1
10 & 12,5 3/8" & 1/2" 2PS06-1-4-12SMC
Specs
4 x Couplings 3/8":3/4" - 16 UNF FEMALE ORB - ISO 11926-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :3 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1813 g 4 lb

For more information contact us: [email protected]
5 4 1
10 & 12,5 3/8" & 1/2" 2PS06-1-4-2/2MC
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :3 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1694 g 3.73 lb

For more information contact us: [email protected]
5 4 1
10 & 12,5 3/8" & 1/2" 2PS06-1-4-38GMC
Specs
4 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :3 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR

For more information contact us: [email protected]
5 4 1
10 & 12,5 3/8" & 1/2" 2PS06-A-4-2/2MC
Specs
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR

For more information contact us: [email protected]
5 4 1
10 & 12,5 3/8" & 1/2" 2PS06-A-4-CMC
Specs
4 x Couplings 3/8":BSPP 1/2" FEMALE SWIVEL NUT - ISO 8434-6
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :7 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1933 g 4.26 lb

For more information contact us: [email protected]
5 4 1
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
06 10 3/8" 25 MPa 3625.943 psi 40 10.567 8 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
08 12.5 1/2" 25 MPa 3625.943 psi 70 18.492 0.01 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
MATE 500 (CrIII) & Paint
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual
