Product series
PS06
Applications
Agriculture

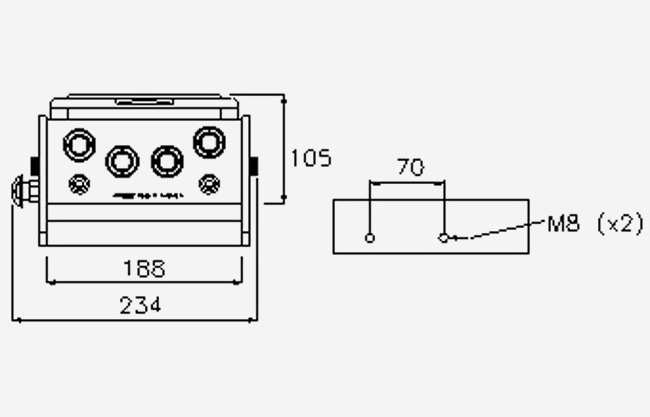

MultiFaster 4 lines, size 06 (3/8").

Multifaster suitable for 4 hydraulic lines size 06.

Configure your Multifaster

Female

Filter items
Units
PartNumber Details Housings Couplings
10 3/8" 2PS06-4-12G F C
Specs
4 x Couplings 3/8":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3821 g 8.42 lb

For more information contact us: [email protected]
4 4
10 3/8" 2PS06-4-2/22F C
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3810 g 8.4 lb

For more information contact us: [email protected]
4 4
10 3/8" 2PS06-4-2/22FA
Specs
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 5327 g 11.74 lb

For more information contact us: [email protected]
4 4
10 3/8" 2PS06-4-2/2FFAC
Specs
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3851.8 g 8.49 lb

For more information contact us: [email protected]
4 4
10 3/8" 2PS06-4-38G F C
Specs
4 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3904 g 8.61 lb

For more information contact us: [email protected]
4 4
10 3/8" 2PS06-4-I F C
Specs
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR

For more information contact us: [email protected]
4 4
10 3/8" 2PS06-4-L F C
Specs
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3774 g 8.32 lb

For more information contact us: [email protected]
4 4
10 3/8" 2PS06A-4-B F C
Specs
4 x Couplings 3/8":13/16"-16 UN MALE ORFS - ISO 8434-3
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3787 g 8.35 lb

For more information contact us: [email protected]
* "U" lever with right handle, right safety lock
4 4
10 3/8" 2PS06B-4-2/22FC
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3605 g 7.95 lb

For more information contact us: [email protected]
* "U" lever with central handle, right safety lock
4 4
10 3/8" 2PS06B-4-2/2F C
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 4089 g 9.01 lb

For more information contact us: [email protected]
* "U" lever with central handle, right safety lock. Additional fittings male thread G1/2"
4 4
10 3/8" 2PS06B-4-B F C
Specs
4 x Couplings 3/8":13/16"-16 UN MALE ORFS - ISO 8434-3
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3775 g 8.32 lb

For more information contact us: [email protected]
* "U" lever with central handle, right safety lock
4 4

Male

Filter items
Units
PartNumber Specs Housings Couplings
10 3/8" 2PS06-2-2/2 MA
Specs
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR

For more information contact us: [email protected]
4 2
10 3/8" 2PS06-2-2/22M C
Specs
2 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1395 g 3.08 lb

For more information contact us: [email protected]
4 2
10 3/8" 2PS06-2-2/2FMAC
Specs
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3253 g 7.17 lb

For more information contact us: [email protected]
4 2
10 3/8" 2PS06-4-11/FSMC
Specs
4 x Couplings 3/8":13/16"-16 UN MALE ORFS - ISO 8434-3
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1700 g 3.75 lb

For more information contact us: [email protected]
4 4
10 3/8" 2PS06-4-12G M C
Specs
4 x Couplings 3/8":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1729 g 3.81 lb

For more information contact us: [email protected]
4 4
10 3/8" 2PS06-4-16/3GMC
Specs
4 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1680 g 3.7 lb

For more information contact us: [email protected]
4 4
10 3/8" 2PS06-4-2/22M C
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1874.3 g 4.13 lb

For more information contact us: [email protected]
4 4
10 3/8" 2PS06-4-2/22MAN
Specs
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 5221.2 g 11.51 lb

For more information contact us: [email protected]
4 4
10 3/8" 2PS06-4-2/2FMAC
Specs
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3511 g 7.74 lb

For more information contact us: [email protected]
4 4
10 3/8" 2PS06-4-20/12MC
Specs
4 x Couplings 3/8":BSPP 1/2" FEMALE SWIVEL NUT - ISO 8434-6
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1861 g 4.1 lb

For more information contact us: [email protected]
4 4
10 3/8" 2PS06-4-38G M C
Specs
4 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1725 g 3.8 lb

For more information contact us: [email protected]
4 4
10 3/8" 3PS06-4-12G M C
Specs
4 x Couplings 3/8":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Seals: NBR & PUR
4 4
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
06 10 3/8" 25 MPa 3625.943 psi 40 10.567 0.008 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
MATE 500 (CrIII) & Paint
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual
