PH510
Applications
Construction Equipment Vehicles & Road Machines

MultiFaster, high pressure version, 2 lines size 08, 2 lines size 12.

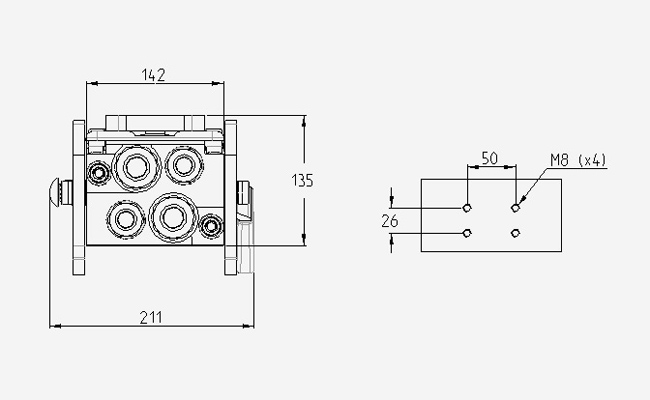

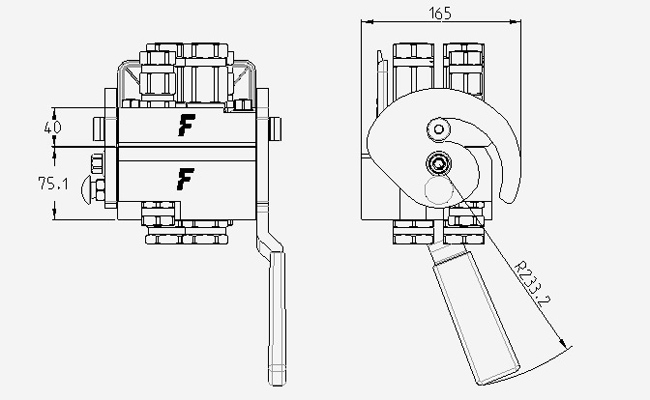

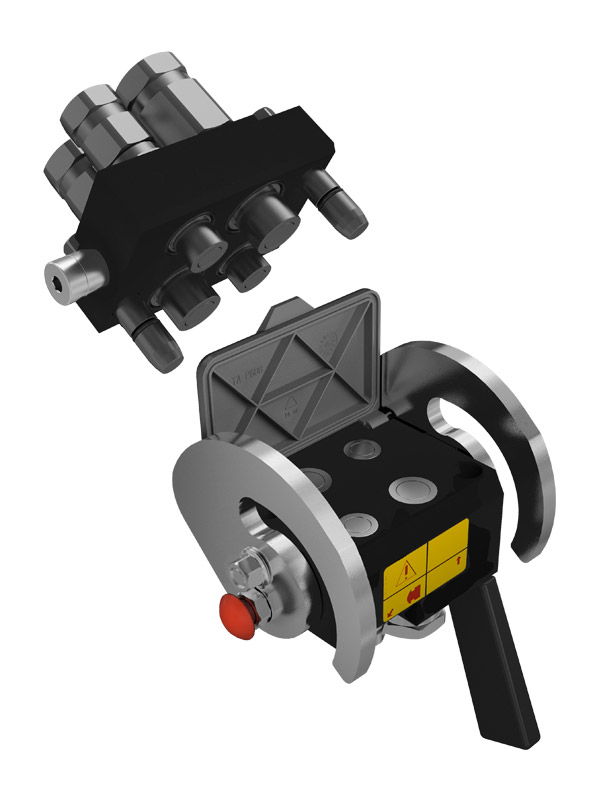

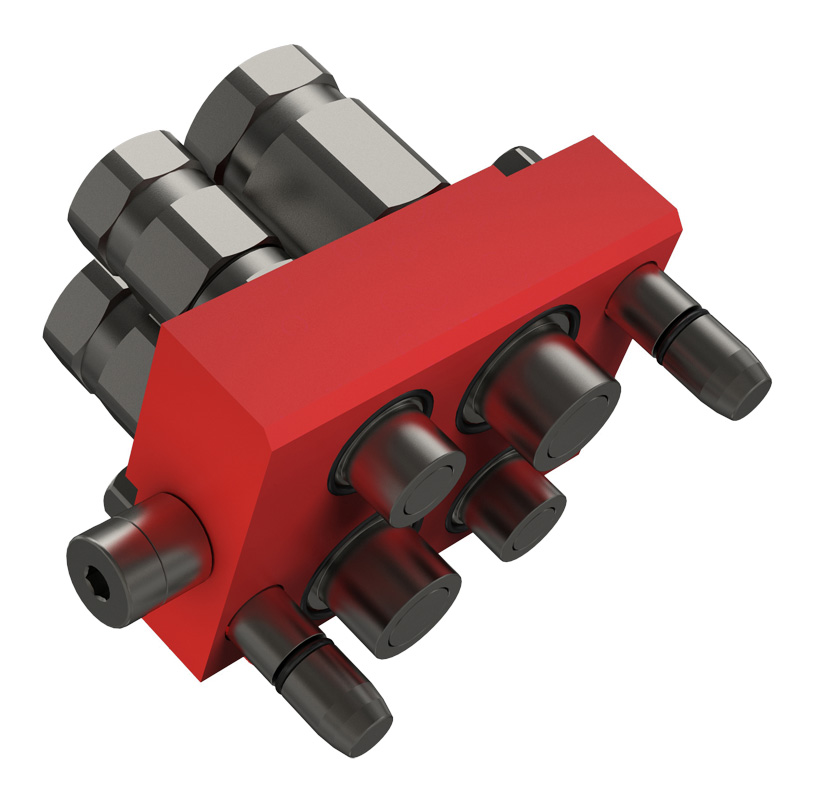

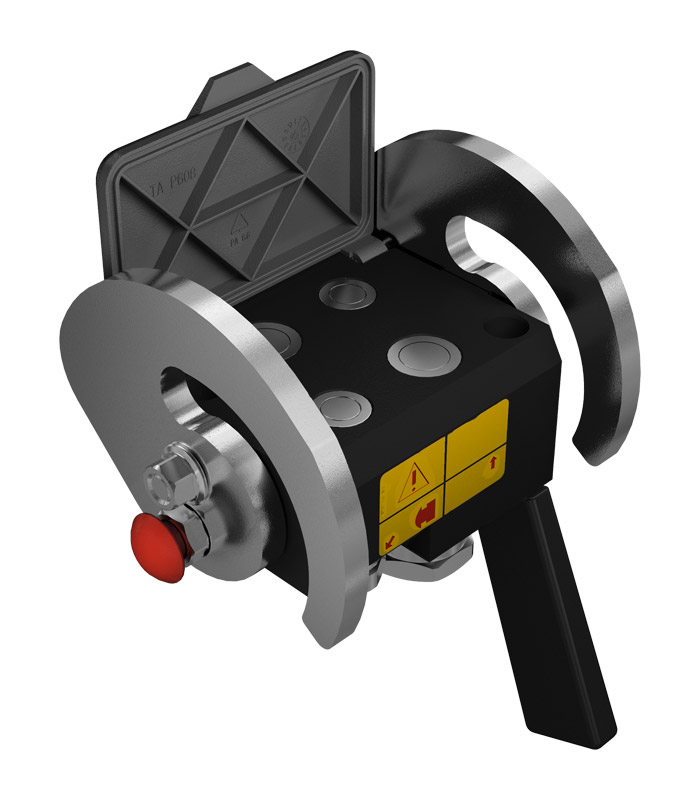

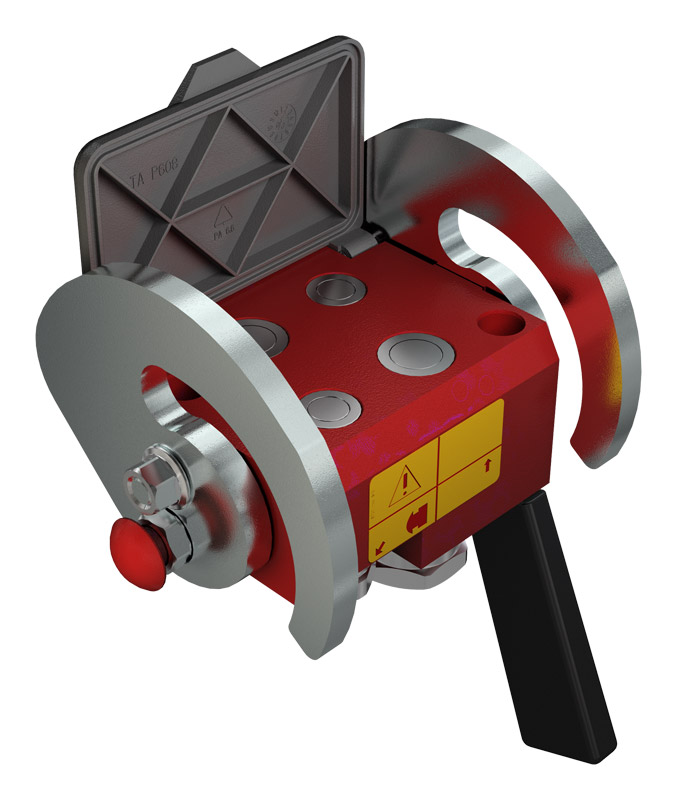

New multi-connection system specifically designed to withstand high pressure applications (46 MPa). Equipped with 2 lines size 08 and 2 lines size 12. Available in two versions: Red paint plates with stainless steel handle and cams, or Black cataphoresis plates with Zn-Ni plated carbon steel handle and cams (part number with S).
Configure your Multifaster

Female

Filter items
Units
PartNumber Details Housings Couplings
12,5 & 20 1/2" & 3/4" PH510-4-A F C
Specs

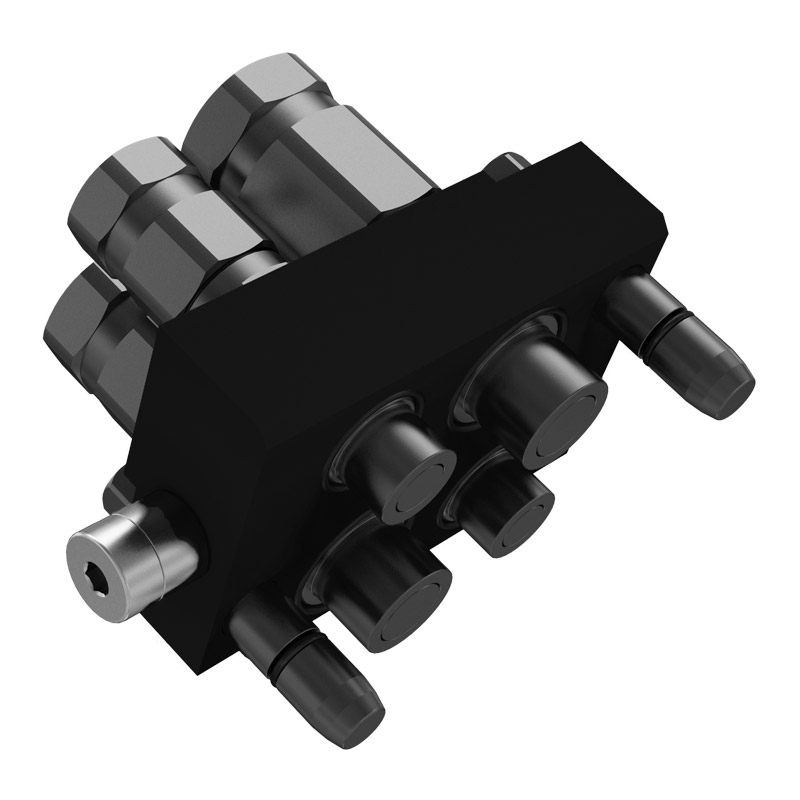

2 x Couplings 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 60 (l/min) at 0.2 MPa 15.85 (gal/min) at 0.2 MPa
2 x Couplings 3/4":BSPP 3/4" FEMALE - ISO 1179-1
Flow Rate: 105 (l/min) at 0.2 MPa 27.738 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 7204 g 15.88 lb

For more information contact us: [email protected]
4 4
12,5 & 20 1/2" & 3/4" PH510S-4-A F C
Specs
2 x Couplings 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 60 (l/min) at 0.2 MPa 15.85 (gal/min) at 0.2 MPa
2 x Couplings 3/4":BSPP 3/4" FEMALE - ISO 1179-1
Flow Rate: 105 (l/min) at 0.2 MPa 27.738 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 7204 g 15.88 lb
4 4

Male

Filter items
Units
PartNumber Specs Housings Couplings
12,5 & 20 1/2" & 3/4" 3PH510-4-A M C
Specs
2 x Couplings 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 60 (l/min) at 0.2 MPa 15.85 (gal/min) at 0.2 MPa
2 x Couplings 3/4":BSPP 3/4" FEMALE - ISO 1179-1
Flow Rate: 105 (l/min) at 0.2 MPa 27.738 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 4137.4 g 9.12 lb

For more information contact us: [email protected]
4 4
12,5 & 20 1/2" & 3/4" 3PH510S-4-A M C
Specs
2 x Couplings 3/4":BSPP 3/4" FEMALE - ISO 1179-1
Flow Rate: 105 (l/min) at 0.2 MPa 27.738 (gal/min) at 0.2 MPa
2 x Couplings 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 60 (l/min) at 0.2 MPa 15.85 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 4137 g 9.12 lb
4 4
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
08 12.5 1/2" 46 MPa 6671.736 psi 60 15.85 0.01 138 MPa 20015.208 psi 138 MPa 20015.208 psi 138 MPa 20015.208 psi
12 20 3/4" 46 MPa 6671.736 psi 105 27.738 0.02 138 MPa 20015.208 psi 138 MPa 20015.208 psi 138 MPa 20015.208 psi
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
MATE 1000 (ZnNi) & Paint
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual
