Product series
PH408
Applications
Construction Equipment Vehicles & Road Machines

MultiFaster, high pressure version, 4 lines size 08.

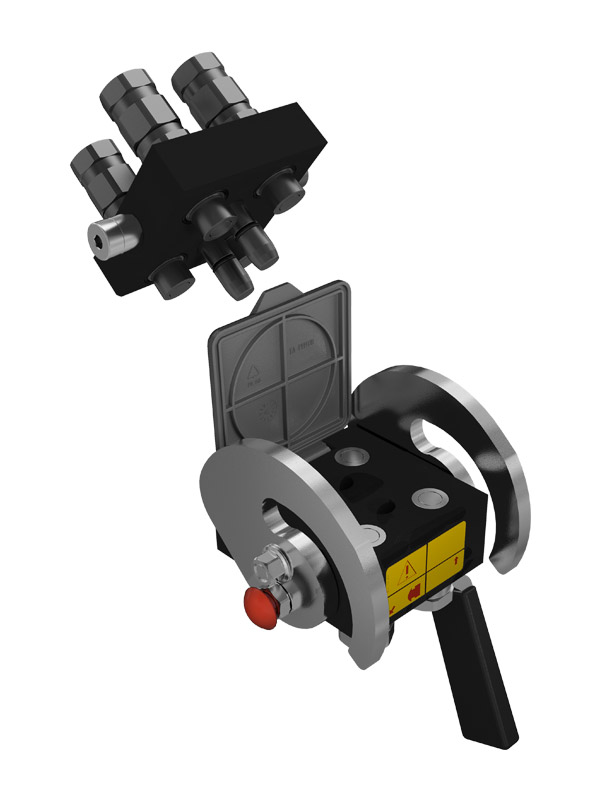

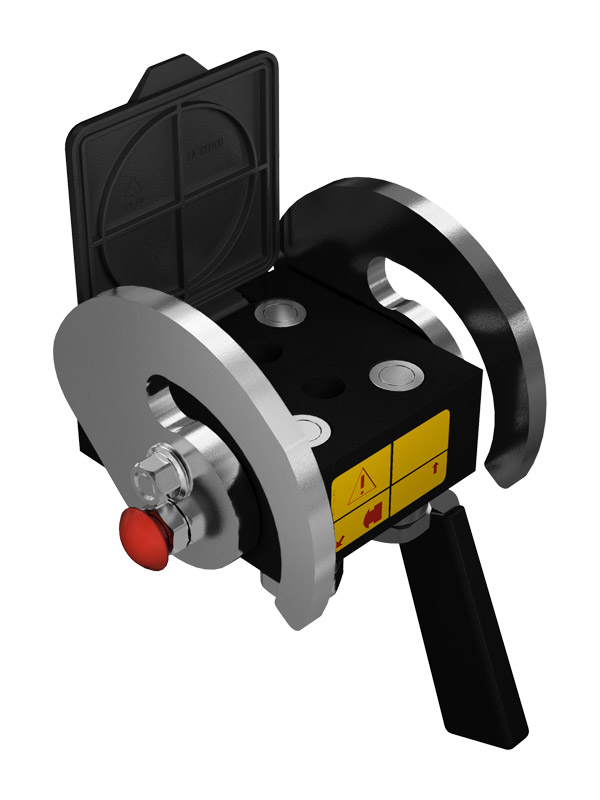

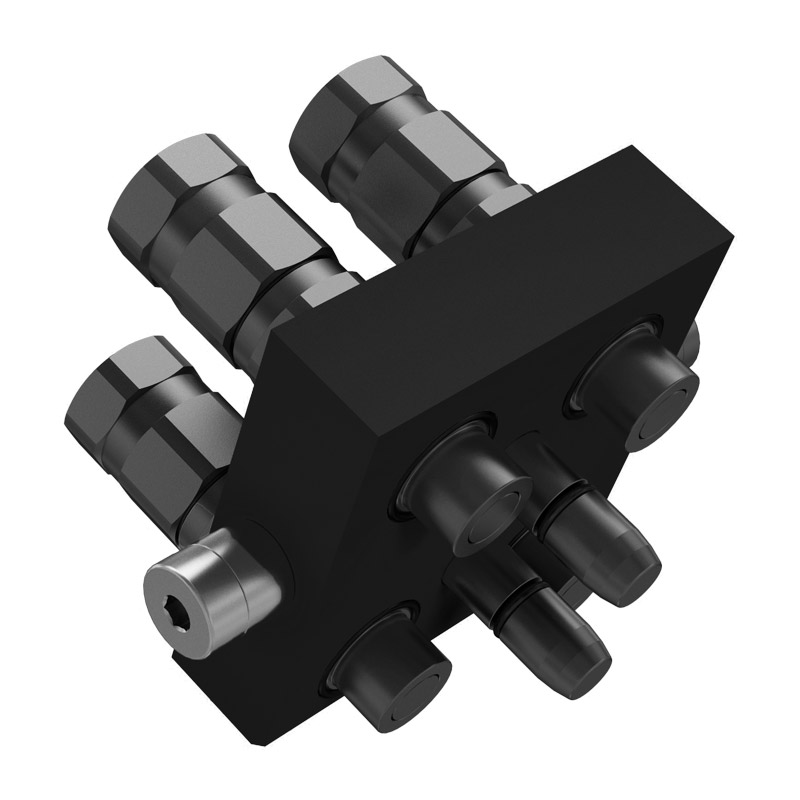

New multi-connection system specifically designed to withstand high pressure applications (46 MPa). Equipped with 4 lines size 08. Available in two versions: Red paint plates with stainless steel handle and cams, or Black cataphoresis plates with Zn-Ni plated carbon steel handle and cams (part number with S).
Configure your Multifaster

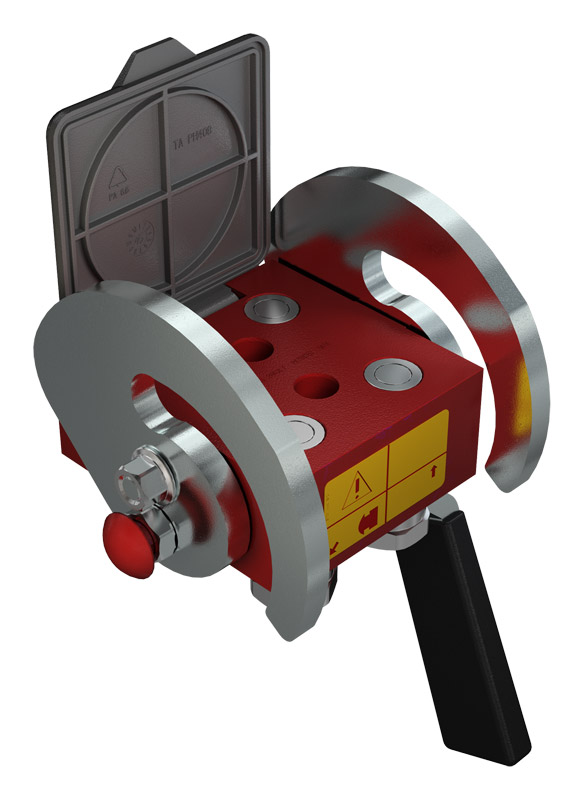

Female

Filter items
Units
PartNumber Details Housings Couplings
12,5 1/2" PH408-4-12G F C
Specs
4 x Couplings 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 60 (l/min) at 0.2 MPa 15.85 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 6115.5 g 13.48 lb

For more information contact us: [email protected]
4 4
12,5 1/2" PH408S-4-12G F C
Specs
4 x Couplings 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 60 (l/min) at 0.2 MPa 15.85 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 6116 g 13.48 lb
4 4

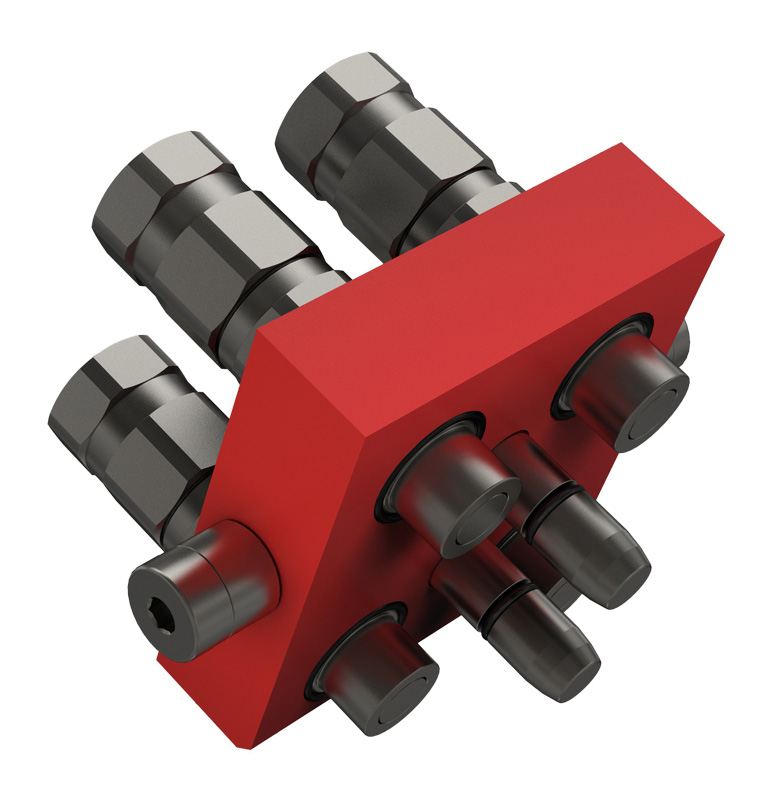

Male

Filter items
Units
PartNumber Specs Housings Couplings
12,5 1/2" 3PH408-4-12G MC
Specs
4 x Couplings 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 60 (l/min) at 0.2 MPa 15.85 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR

For more information contact us: [email protected]
4 4
12,5 1/2" 3PH408S-4-12G M C
Specs
4 x Couplings 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 60 (l/min) at 0.2 MPa 15.85 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 3220 g 7.1 lb
4 4
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
08 12.5 1/2" 46 MPa 6671.736 psi 60 15.85 0.01 138 MPa 20015.208 psi 138 MPa 20015.208 psi 138 MPa 20015.208 psi
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
MATE 1000 (ZnNi) & Paint
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual
