Product series
P510G
Applications
Construction Equipment Vehicles & Road Machines

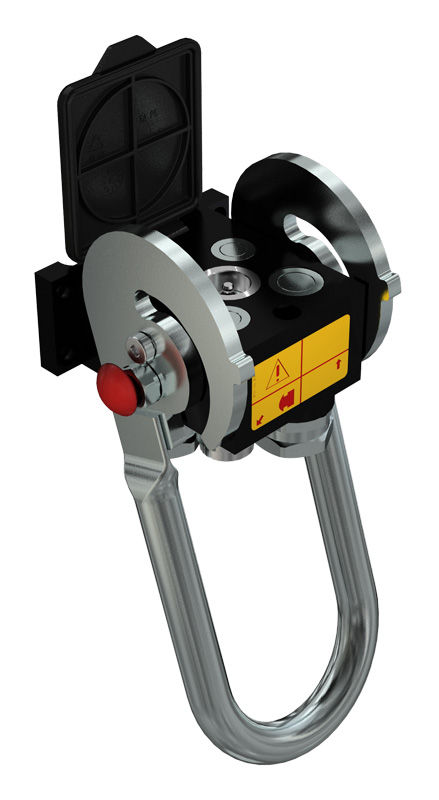

MultiFaster 4 lines, "G" type, with greaser and Zinc-Nickel plating. 2 lines size 08, 2 lines size 12.

Configure your Multifaster

Female

Filter items
Units
PartNumber Details Housings Couplings
12,5 & 20 1/2" & 3/4" 2P510G-4-A F C
Specs
2 x Couplings 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
2 x Couplings 3/4":BSPP 3/4" FEMALE - ISO 1179-1
Flow Rate: 105 (l/min) at 0.2 MPa 27.738 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 4893 g 10.79 lb

For more information contact us: [email protected]
* Max. grease volume to insert into the plate: 60 cc. Use of a PTFE-based grease is recommended.
4 4

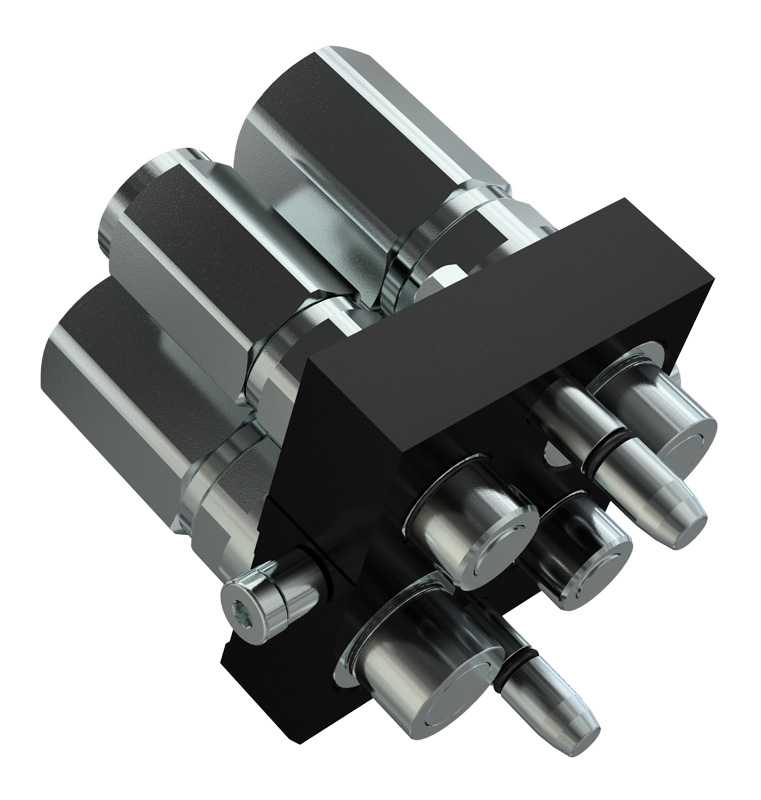

Male

Filter items
Units
PartNumber Specs Housings Couplings
12,5 & 20 1/2" & 3/4" 3P510G-4-A M C
Specs
2 x Couplings 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
2 x Couplings 3/4":BSPP 3/4" FEMALE - ISO 1179-1
Flow Rate: 105 (l/min) at 0.2 MPa 27.738 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3766 g 8.3 lb

For more information contact us: [email protected]
4 4
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
08 12.5 1/2" 25 MPa 3625.943 psi 70 18.492 0.01 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
12 20 3/4" 25 MPa 3625.943 psi 105 27.738 0.02 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
MATE 1000 (ZnNi) & Paint
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual
