Product series
P5068
Applications
Agriculture Construction Equipment Vehicles & Road Machines

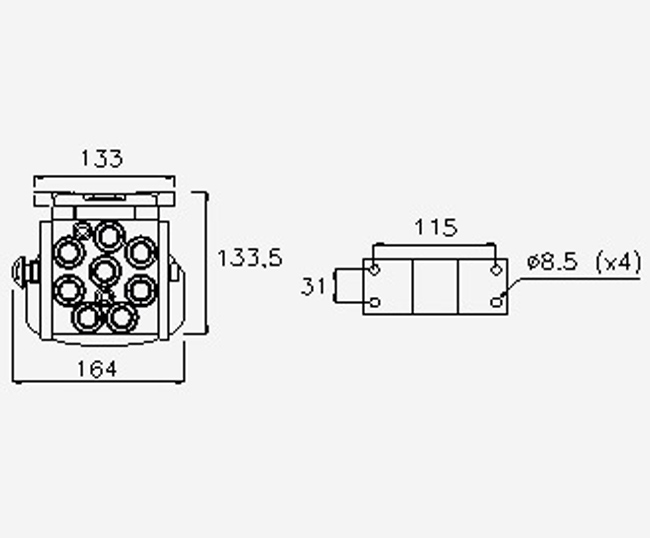

MultiFaster 8 lines, size 06.

Configure your Multifaster

Female

Filter items
Units
PartNumber Details Housings Couplings
10 3/8" 2P5068-8-12GF C
Specs
8 x Couplings 3/8":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 4427.8 g 9.76 lb

For more information contact us: [email protected]
8 8
10 3/8" 2P5068-8-2/22F C
Specs
8 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 4500 g 9.92 lb
8 8
10 3/8" 2P5068-8-38GF C
Specs
8 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 4434 g 9.78 lb

For more information contact us: [email protected]
8 8
10 3/8" 2P5068-8-C F C
Specs
8 x Couplings 3/8":3/4"-16 UNF FEMALE ORB MALE JIC - ISO 8434-2
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 4660.4 g 10.27 lb

For more information contact us: [email protected]
8 8

Male

Filter items
Units
PartNumber Specs Housings Couplings
10 3/8" 2P5068-8-38GM C
Specs
8 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 2170 g 4.78 lb

For more information contact us: [email protected]
8 8
10 3/8" 2P5068-8-D M C
Specs
8 x Couplings 3/8":3/4"-16 UNF MALE MALE JIC - ISO 8434-2
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 2098.2 g 4.63 lb

For more information contact us: [email protected]
8 8
10 3/8" 3P5068-8-12G MC
Specs
8 x Couplings 3/8":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 2676 g 5.9 lb

For more information contact us: [email protected]
8 8
10 3/8" 3P5068-8-2/22M C
Specs
8 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 3000 g 6.61 lb
8 8
10 3/8" 3P5068-8-38GM C
Specs
8 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 3000 g 6.61 lb
8 8
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
06 10 3/8" 25 MPa 3625.943 psi 40 10.567 0.008 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
MATE 500 (CrIII) & Paint
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual
