Product series
P5066
Applications
Agriculture Construction Equipment Vehicles & Road Machines

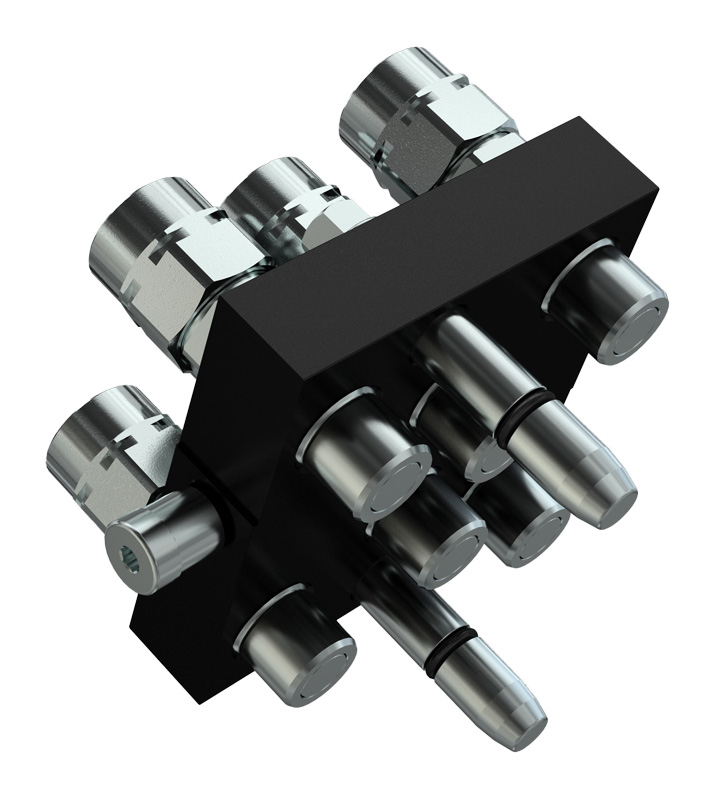

MultiFaster 6 lines, size 06.

Configure your Multifaster

Female

Filter items
Units
PartNumber Details Housings Couplings
10 3/8" 2P5066-6-38G FC
Specs
6 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 4254 g 9.38 lb

For more information contact us: [email protected]
6 6

Male

Filter items
Units
PartNumber Specs Housings Couplings
10 3/8" 2P5066-6-38G MC
Specs
6 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1808 g 3.99 lb

For more information contact us: [email protected]
6 6
10 3/8" 3P5066-6-38G MC
Specs
6 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 2258 g 4.98 lb

For more information contact us: [email protected]
6 6
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
06 10 3/8" 25 MPa 3625.943 psi 40 10.567 0.008 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
MATE 500 (CrIII) & Paint
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual
