Product series
P506
Applications

MultiFaster 4 lines, size 06.

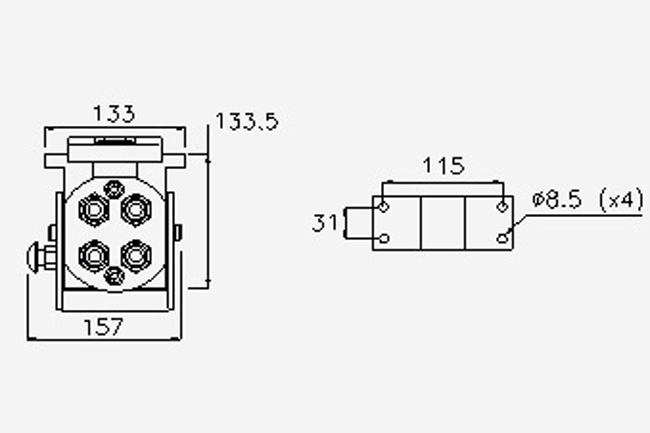

Female

Filter items
Units
PartNumber Details Housings Couplings
10 3/8" 2P506-3-38G F C
Specs
3 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3714 g 8.19 lb

For more information contact us: [email protected]
4 3
10 3/8" 2P506-4-11/FSFC
Specs
4 x Couplings 3/8":13/16"-16 UN MALE ORFS - ISO 8434-3
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 3900 g 8.6 lb
4 4
10 3/8" 2P506-4-12G F C
Specs
4 x Couplings 3/8":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3815 g 8.41 lb

For more information contact us: [email protected]
4 4
10 3/8" 2P506-4-12S F C
Specs
4 x Couplings 3/8":3/4" - 16 UNF FEMALE ORB - ISO 11926-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 3900 g 8.6 lb
4 4
10 3/8" 2P506-4-16/3GFC
Specs
4 x Couplings 3/8":60° 3/8 BSPP MALE 60° CONE MALE THREAD - ISO 8434-6
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 3800 g 8.38 lb
4 4
10 3/8" 2P506-4-2/18F C
Specs
4 x Couplings 3/8":M18x1,5 MALE 12L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3693.2 g 8.14 lb

For more information contact us: [email protected]
4 4
10 3/8" 2P506-4-2/22F C
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3809 g 8.4 lb

For more information contact us: [email protected]
4 4
10 3/8" 2P506-4-3/20F C
Specs
4 x Couplings 3/8":M20x1.5 MALE 12S - ISO 8434-1-S
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3809 g 8.4 lb

For more information contact us: [email protected]
4 4
10 3/8" 2P506-4-38G F C
Specs
4 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3806 g 8.39 lb

For more information contact us: [email protected]
4 4
10 3/8" 2P506-4-38N F C
Specs
4 x Couplings 3/8":NPTF 3/8" FEMALE - ANSI B1.20.3
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 3900 g 8.6 lb
4 4

Male

Filter items
Units
PartNumber Specs Housings Couplings
10 3/8" 2P506-3-38G M C
Specs
3 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1249.2 g 2.75 lb

For more information contact us: [email protected]
4 3
10 3/8" 2P506-4-12G M C
Specs
4 x Couplings 3/8":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1400 g 3.09 lb

For more information contact us: [email protected]
4 4
10 3/8" 2P506-4-16/3GMC
Specs
4 x Couplings 3/8":60° 3/8 BSPP MALE 60° CONE MALE THREAD - ISO 8434-6
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 1400 g 3.09 lb
4 4
10 3/8" 2P506-4-2/18M C
Specs
4 x Couplings 3/8":M18x1,5 MALE 12L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1320.2 g 2.91 lb

For more information contact us: [email protected]
4 4
10 3/8" 2P506-4-2/22M C
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1340 g 2.95 lb

For more information contact us: [email protected]
4 4
10 3/8" 2P506-4-38G M C
Specs
4 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 14086 g 31.05 lb

For more information contact us: [email protected]
4 4
10 3/8" 2P506-4-38N M C
Specs
4 x Couplings 3/8":NPTF 3/8" FEMALE - ANSI B1.20.3
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1407.8 g 3.1 lb

For more information contact us: [email protected]
4 4
10 3/8" 3P506-4-11/FSMC
Specs
4 x Couplings 3/8":13/16"-16 UN MALE ORFS - ISO 8434-3
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 1650 g 3.64 lb
4 4
10 3/8" 3P506-4-12G M C
Specs
4 x Couplings 3/8":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1654 g 3.65 lb

For more information contact us: [email protected]
4 4
10 3/8" 3P506-4-12S M C
Specs
4 x Couplings 3/8":3/4" - 16 UNF FEMALE ORB - ISO 11926-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1674 g 3.69 lb

For more information contact us: [email protected]
4 4
10 3/8" 3P506-4-3/20M C
Specs
4 x Couplings 3/8":M20x1.5 MALE 12S - ISO 8434-1-S
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1643 g 3.62 lb

For more information contact us: [email protected]
4 4
10 3/8" 3P506-4-38G M C
Specs
4 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1700 g 3.75 lb

For more information contact us: [email protected]
4 4
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
06 10 3/8" 25 MPa 3625.943 psi 40 10.567 0.008 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
MATE 500 (CrIII) & Paint
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual
