Product series
P404
Applications
Agriculture Construction Equipment

MultiFaster 4 lines, size 04.

Configure your Multifaster

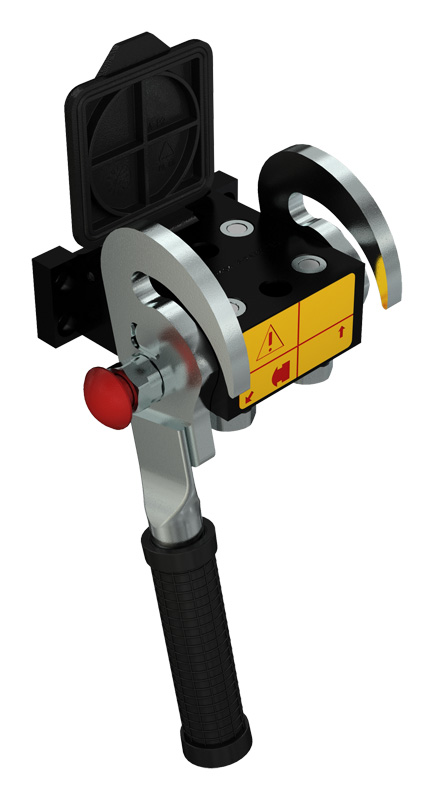

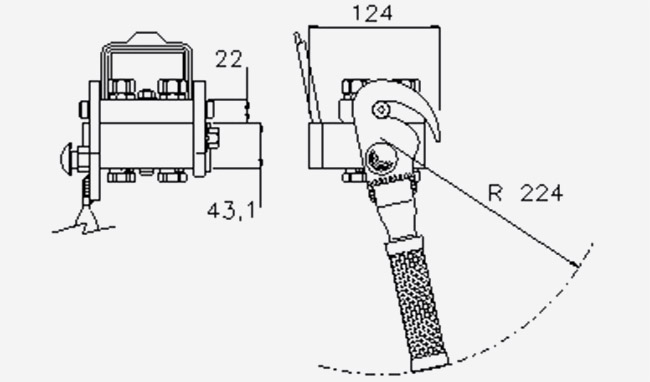

Female

Filter items
Units
PartNumber Details Housings Couplings
6,3 1/4" 2P404-3-A F C
Specs
3 x Couplings 1/4":7/16"-20 UNF MALE JIC - ISO 8434-2
Flow Rate: 20 (l/min) at 0.2 MPa 5.283 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 2418 g 5.33 lb

For more information contact us: [email protected]
4 3
6,3 1/4" 2P404-4-14G F C
Specs
4 x Couplings 1/4":BSPP 1/4" FEMALE - ISO 1179-1
Flow Rate: 20 (l/min) at 0.2 MPa 5.283 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 2480 g 5.47 lb

For more information contact us: [email protected]
4 4

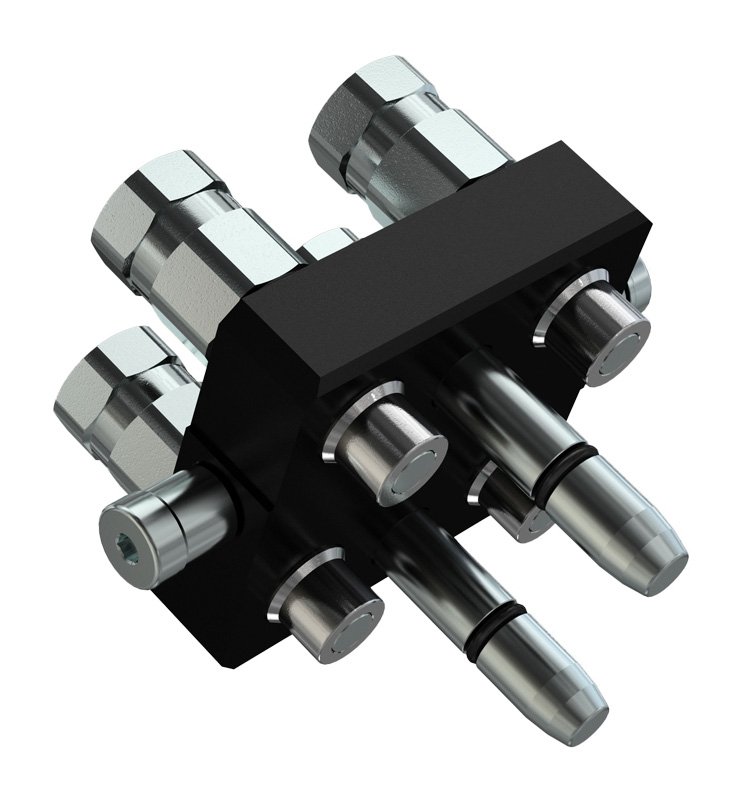

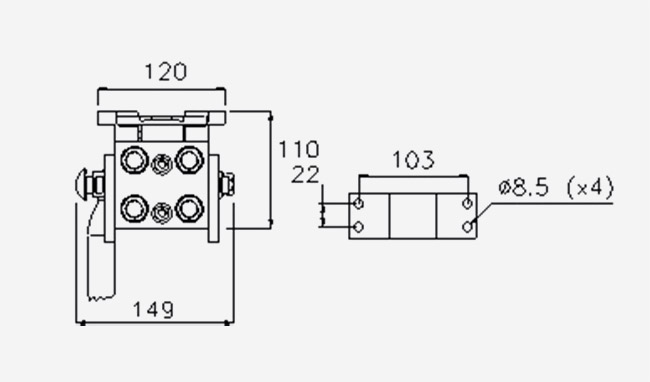

Male

Filter items
Units
PartNumber Specs Housings Couplings
6,3 1/4" 2P404-3-A M C
Specs
3 x Couplings 1/4":BSPP 1/2" FEMALE SWIVEL NUT - ISO 8434-6
Flow Rate: 20 (l/min) at 0.2 MPa 5.283 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1038 g 2.29 lb

For more information contact us: [email protected]
4 3
6,3 1/4" 2P404-4-14G M C
Specs
4 x Couplings 1/4":BSPP 1/4" FEMALE - ISO 1179-1
Flow Rate: 20 (l/min) at 0.2 MPa 5.283 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1192 g 2.63 lb

For more information contact us: [email protected]
4 4
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
04 6.3 1/4" 25 MPa 3625.943 psi 20 5.283 0.008 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
MATE 500 (CrIII) & Paint
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual
