Product series
P316
Applications
Agriculture Construction Equipment Vehicles & Road Machines

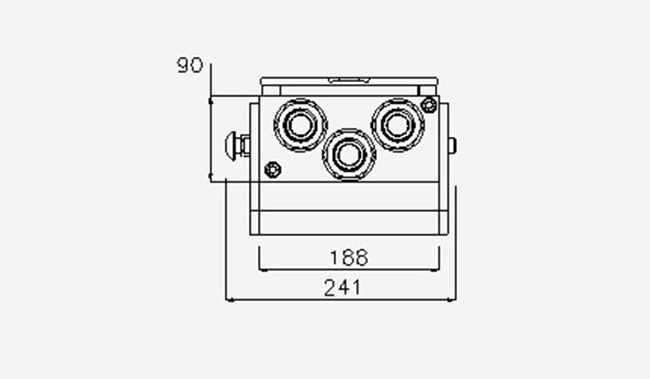

MultiFaster 3 lines, size 16.

Configure your Multifaster

Female

Filter items
Units
PartNumber Details Housings Couplings
25 1" 2P316-2-1G F C
Specs
2 x Couplings 1":BSPP 1" FEMALE - ISO 1179-1
Flow Rate: 150 (l/min) at 0.2 MPa 39.626 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR

For more information contact us: [email protected]
3 2
25 1" 2P316-2-1S F C
Specs
2 x Couplings 1":1-5/16"-12 UN FEMALE ORB - ISO 11926-1
Flow Rate: 150 (l/min) at 0.2 MPa 39.626 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 7949 g 17.52 lb

For more information contact us: [email protected]
3 2
25 1" 2P316-3-1G F C
Specs
3 x Couplings 1":BSPP 1" FEMALE - ISO 1179-1
Flow Rate: 150 (l/min) at 0.2 MPa 39.626 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 8630.5 g 19.03 lb

For more information contact us: [email protected]
3 3
25 1" 2P316-3-1S F C
Specs
3 x Couplings 1":1-5/16"-12 UN FEMALE ORB - ISO 11926-1
Flow Rate: 150 (l/min) at 0.2 MPa 39.626 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR

For more information contact us: [email protected]
3 3

Male

Filter items
Units
PartNumber Specs Housings Couplings
25 1" 3P316-2-1G M C
Specs
2 x Couplings 1":BSPP 1" FEMALE - ISO 1179-1
Flow Rate: 150 (l/min) at 0.2 MPa 39.626 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR

For more information contact us: [email protected]
3 2
25 1" 3P316-2-1S M C
Specs
2 x Couplings 1":1-5/16"-12 UN FEMALE ORB - ISO 11926-1
Flow Rate: 150 (l/min) at 0.2 MPa 39.626 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 4126 g 9.1 lb

For more information contact us: [email protected]
3 2
25 1" 3P316-3-1G M C
Specs
3 x Couplings 1":BSPP 1" FEMALE - ISO 1179-1
Flow Rate: 150 (l/min) at 0.2 MPa 39.626 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 5600 g 12.35 lb

For more information contact us: [email protected]
3 3
25 1" 3P316-3-1S M C
Specs
3 x Couplings 1":1-5/16"-12 UN FEMALE ORB - ISO 11926-1
Flow Rate: 150 (l/min) at 0.2 MPa 39.626 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 5672 g 12.5 lb

For more information contact us: [email protected]
3 3
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
16 25 1" 25 MPa 3625.943 psi 150 39.626 0.02 100 MPa 14503.774 psi 100 MPa 14503.774 psi 110 MPa 15954.151 psi
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
MATE 500 (CrIII) & Paint
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual
