Product series
P306
Applications
Agriculture Construction Equipment Vehicles & Road Machines

MultiFaster, 2 lines, size 06, 1 line size 08.

Multifaster suitable for 2 lines size 06 and 1 line size 08. Possibility to assemble the electrical connector within the 08 size housing.

Configure your Multifaster

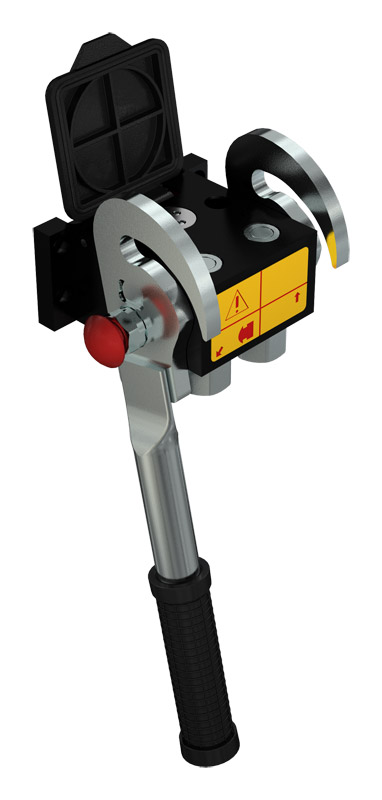

Female

Filter items
Units
PartNumber Details Housings Couplings Electrical Contacts
10 & 12,5 3/8" & 1/2" 2P306-0-3-A F C
Specs
1 x Coupling 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
2 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 2900 g 6.39 lb
3 3
10 & 12,5 3/8" & 1/2" 2P306-1-2-12GFC
Specs
2 x Couplings 3/8":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :3 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 2746 g 6.05 lb

For more information contact us: [email protected]
3 2 1
10 & 12,5 3/8" & 1/2" 2P306-1-2-38GFC
Specs
2 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :3 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 2756 g 6.08 lb

For more information contact us: [email protected]
3 2 1
10 & 12,5 3/8" & 1/2" 2P306-A-2-38GFC
Specs
2 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :7 Pins
Seals: NBR & PUR
Weight: 2800 g 6.17 lb
3 2 1

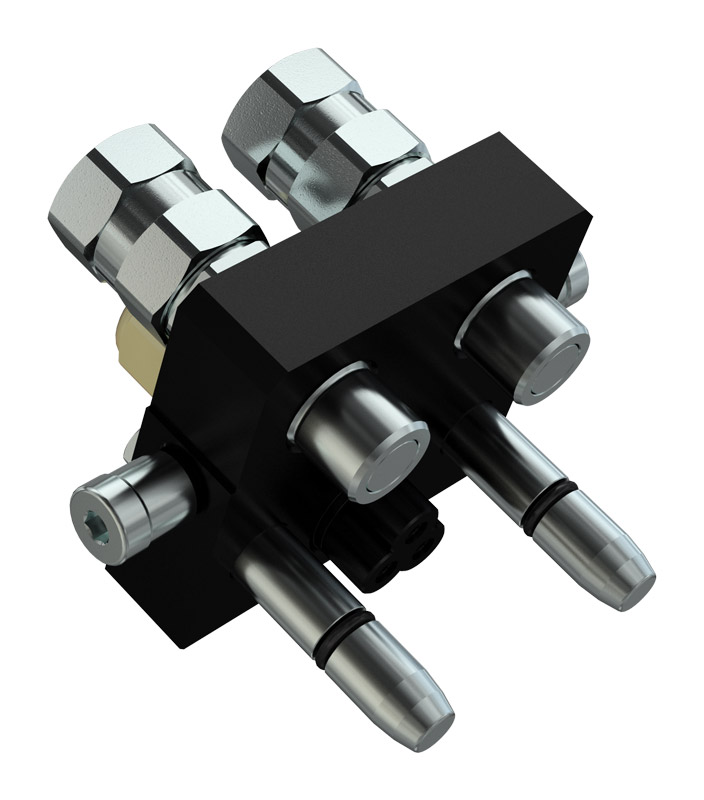

Male

Filter items
Units
PartNumber Specs Housings Couplings Electrical Contacts
10 & 12,5 3/8" & 1/2" 2P306-1-2-12GMC
Specs
2 x Couplings 3/8":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :3 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 976 g 2.15 lb

For more information contact us: [email protected]
3 2 1
10 & 12,5 3/8" & 1/2" 2P306-1-2-38GMC
Specs
2 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :3 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1000 g 2.2 lb

For more information contact us: [email protected]
3 2 1
10 & 12,5 3/8" & 1/2" 3P306-0-3-A MC
Specs
1 x Coupling 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
2 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 1400 g 3.09 lb
3 3
10 & 12,5 3/8" & 1/2" 3P306-A-2-38GMC
Specs
2 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :7 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR

For more information contact us: [email protected]
3 2 1
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
06 10 3/8" 25 MPa 3625.943 psi 40 10.567 0.008 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
08 12.5 1/2" 25 MPa 3625.943 psi 70 18.492 0.01 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
MATE 500 (CrIII) & Paint
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual
