Product series
P208G
Applications

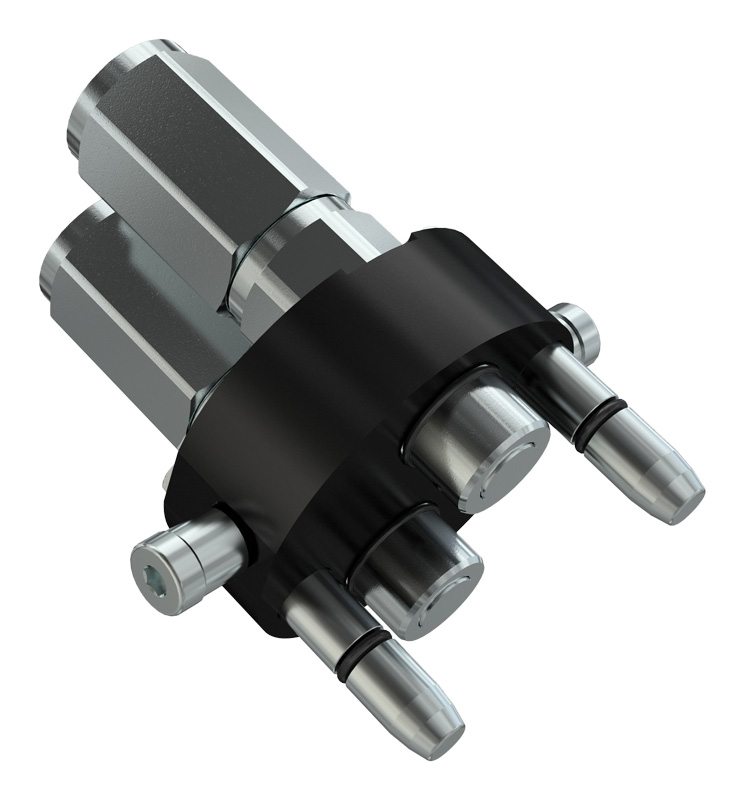

MultiFaster 2 lines, size 08, "G" type, with greaser and Zinc-Nickel plating.
Downloads
Data sheet
User Instruction
Configure your Multifaster
Items
Specs
Female
Male
Accessories
Female
Filter items
Units
Metric
Imperial
Size (mm)
12.5 mm
Size (in)
1/2"
PartNumber
Details
Housings
Couplings
12,5
1/2"
|1/2|
2P208G-2-12G FC
Specs
2 x Couplings 1/2":
BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate:
70 (l/min) at 0.2 MPa
18.492 (gal/min) at 0.2 MPa
Temperature:
-25 °C to 100 °C
-13 °F to 212 °F
Seals:
NBR & PUR
Weight:
3776 g
8.32 lb
For more information contact us:
[email protected]
* Max. grease volume to insert into the plate: 20 cc. Use of a PTFE-based grease is recommended.
2
2
Male
Filter items
Units
Metric
Imperial
Size (mm)
12.5 mm
Size (in)
1/2"
PartNumber
Specs
Housings
Couplings
12,5
1/2"
|1/2|
3P208G-2-12G MC
Specs
2 x Couplings 1/2":
BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate:
70 (l/min) at 0.2 MPa
18.492 (gal/min) at 0.2 MPa
Temperature:
-25 °C to 100 °C
-13 °F to 212 °F
Seals:
NBR & PUR
Weight:
1708 g
3.77 lb
For more information contact us:
[email protected]
2
2
Technical Specifications
Burst pressure (MPa)
Burst pressure (psi)
Dash Size
Size (
mm
Inch
)
Working Pressure
Flow Rate (
l/min
gal/min
)
Spillage (ml)
Male
Burst pressure
Female
Burst pressure
Male + Female
Burst pressure
08
12.5
1/2"
25 MPa
3625.943 psi
70
18.492
0.01
100 MPa
100
14503.774 psi
14503.774
100 MPa
100
14503.774 psi
14503.774
100 MPa
100
14503.774 psi
14503.774
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C
-13 °F to 212 °F
Surface treatment:
MATE 1000 (ZnNi) & Paint
Warnings:
This product can expose you to chemicals such as Lead or Nickel which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to
www.p65warnings.ca.gov
.
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual
