Product series
P208
Applications

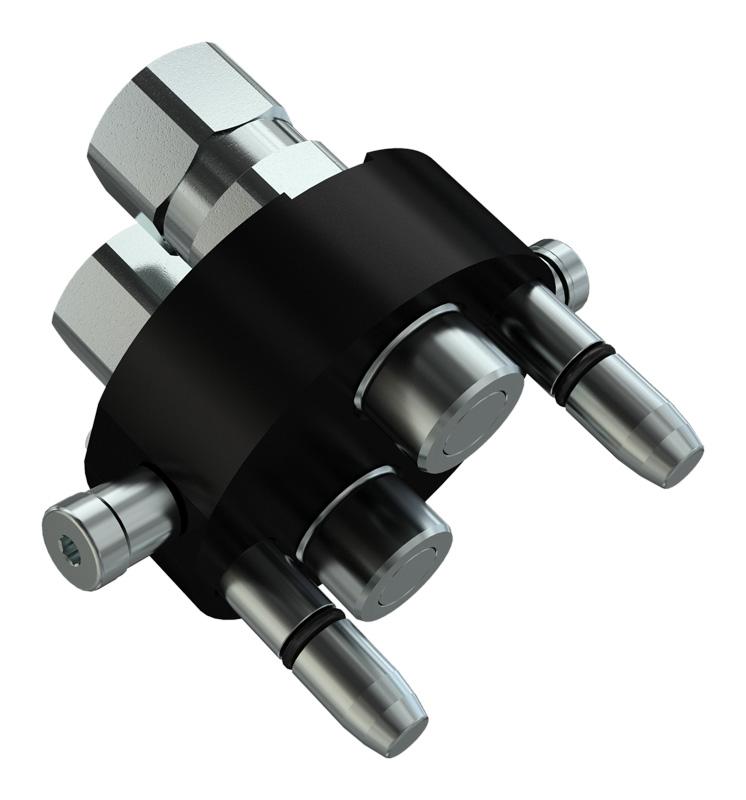

MultiFaster, 2 lines, size 08.

Multifaster suitable for 2 lines size 08. Very compact design.

Female

Filter items
Units
PartNumber Details Housings Couplings
12,5 1/2" 2P208-2-12G F C
Specs
2 x Couplings 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 2864 g 6.31 lb

For more information contact us: [email protected]
2 2
12,5 1/2" 2P208-2-12N F C
Specs
2 x Couplings 1/2":NPTF 1/2" FEMALE - ANSI B1.20.3
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 2864 g 6.31 lb

For more information contact us: [email protected]
2 2
12,5 1/2" 2P208-2-12S F C
Specs
2 x Couplings 1/2":3/4" - 16 UNF FEMALE ORB - ISO 11926-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 2927.5 g 6.45 lb

For more information contact us: [email protected]
2 2
12,5 1/2" 2P208-2-2/22F C
Specs
2 x Couplings 1/2":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 2865 g 6.32 lb

For more information contact us: [email protected]
2 2
12,5 1/2" 2P208-2-34G F C
Specs
2 x Couplings 1/2":BSPP 3/4" FEMALE - ISO 1179-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 2954 g 6.51 lb

For more information contact us: [email protected]
2 2
12,5 1/2" 2P208-2-34S F C
Specs
2 x Couplings 1/2":1 - 1/16" - 12 UN FEMALE ORB - ISO 11926-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 2930 g 6.46 lb

For more information contact us: [email protected]
2 2
12,5 1/2" 3P208-2-12G F C
Specs
2 x Couplings 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 2860 g 6.31 lb

For more information contact us: [email protected]
2 2
12,5 1/2" 3P208-2-E F C
Specs
2 x Couplings 1/2":NPTF 1/2" FEMALE - ANSI B1.20.3
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 2900 g 6.39 lb

For more information contact us: [email protected]
* Right safety lock - Right compact lever
2 2
12,5 1/2" 3P208D-2-12G FC
Specs
1 x Coupling 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 2835 g 6.25 lb

For more information contact us: [email protected]
* Right safety lock - Right compact lever
2 2

Male

Filter items
Units
PartNumber Specs Housings Couplings
12,5 1/2" 2P208-2-12G M C
Specs
2 x Couplings 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1196.8 g 2.64 lb

For more information contact us: [email protected]
2 2
12,5 1/2" 2P208-2-12N M C
Specs
2 x Couplings 1/2":NPTF 1/2" FEMALE - ANSI B1.20.3
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1200 g 2.65 lb

For more information contact us: [email protected]
2 2
12,5 1/2" 2P208-2-12S M C
Specs
2 x Couplings 1/2":3/4" - 16 UNF FEMALE ORB - ISO 11926-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1206 g 2.66 lb

For more information contact us: [email protected]
2 2
12,5 1/2" 2P208-2-2/22M C
Specs
2 x Couplings 1/2":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1197.8 g 2.64 lb

For more information contact us: [email protected]
2 2
12,5 1/2" 2P208-2-34G MC
Specs
2 x Couplings 1/2":BSPP 3/4" FEMALE - ISO 1179-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1259.6 g 2.78 lb

For more information contact us: [email protected]
2 2
12,5 1/2" 2P208-2-34S M C
Specs
2 x Couplings 1/2":1 - 1/16" - 12 UN FEMALE ORB - ISO 11926-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1247 g 2.75 lb

For more information contact us: [email protected]
2 2
12,5 1/2" 3P208-2-12G M C
Specs
2 x Couplings 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1705 g 3.76 lb

For more information contact us: [email protected]
2 2
12,5 1/2" 3P208-2-12S M C
Specs
2 x Couplings 1/2":3/4"-16 UNF FEMALE ORB - ISO 11926-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Seals: NBR & PUR
2 2
12,5 1/2" 3P208-2-34G M C
Specs
2 x Couplings 1/2":BSPP 3/4" FEMALE - ISO 1179-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1647 g 3.63 lb

For more information contact us: [email protected]
2 2
12,5 1/2" 3P208-2-34S M C
Specs
2 x Couplings 1/2":1-1/16"-12 UN FEMALE ORB - ISO 11926-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR

For more information contact us: [email protected]
2 2
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
08 12.5 1/2" 25 MPa 3625.943 psi 70 18.492 0.01 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
MATE 500 (CrIII) & Paint
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual
