Product series
P206G
Applications
Agriculture Construction Equipment Vehicles & Road Machines

MultiFaster 2 lines, size 06, "G" type, with greaser and Zinc-Nickel plating.

Configure your Multifaster

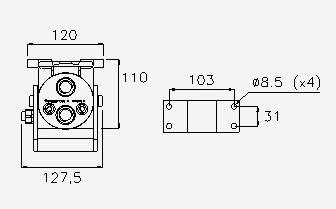

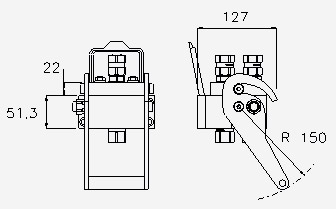

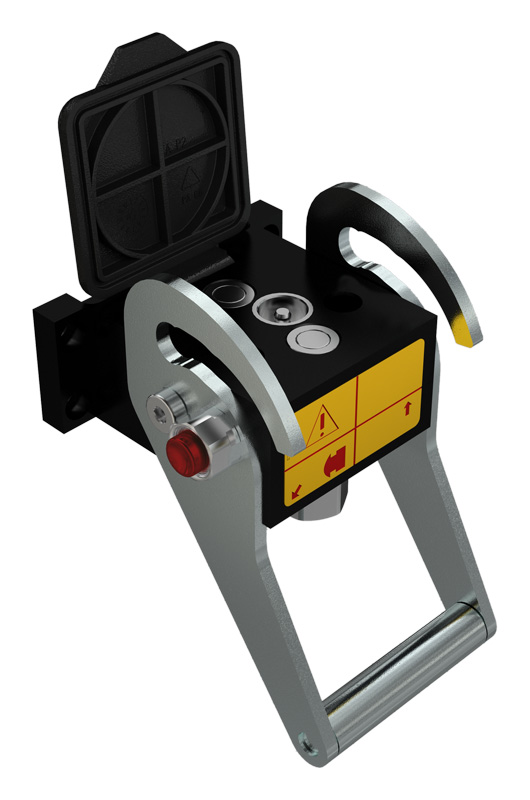

Female

Filter items
Units
PartNumber Details Housings Couplings
10 3/8" 2P206G-2-12G FC
Specs
2 x Couplings 3/8":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3928 g 8.66 lb

For more information contact us: [email protected]
* Max. grease volume to insert into the plate: 10 cc. Use of a PTFE-based grease is recommended.
2 2

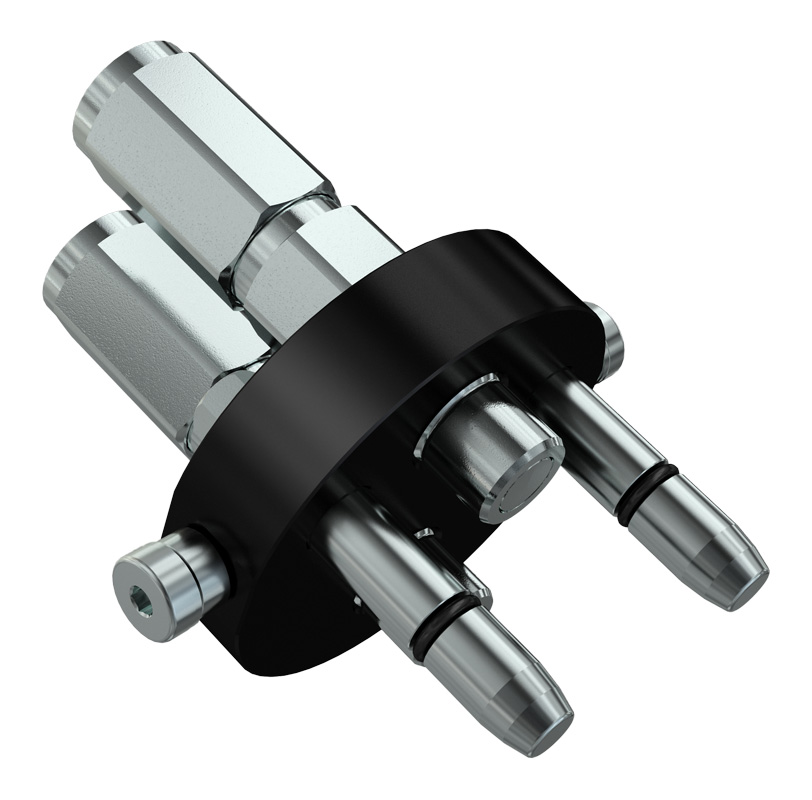

Male

Filter items
Units
PartNumber Specs Housings Couplings
10 3/8" 3P206G-2-12G MC
Specs
2 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1085 g 2.39 lb

For more information contact us: [email protected]
2 2
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
06 10 3/8" 25 MPa 3625.943 psi 40 10.567 0.008 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
MATE 1000 (ZnNi) & Paint
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual
