Product series
P206
Applications
MultiFaster, 2 lines, size 06.
Multifaster suitable for 2 lines size 06. Very compact design.
Downloads
Data sheet
User Instruction
Configure your Multifaster
Items
Specs

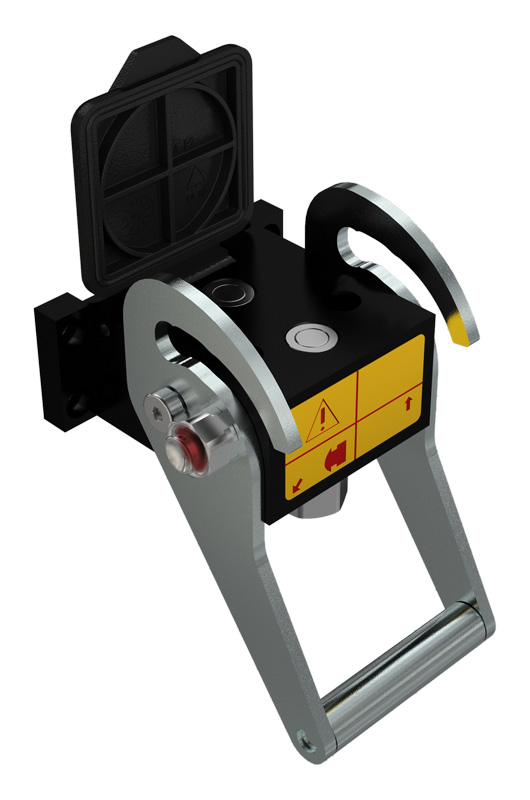

Female
Male
Accessories
Female
Filter items
Units
Metric
Imperial
Size (mm)
10 mm
Size (in)
3/8"
PartNumber
Details
Housings
Couplings
10
3/8"
|3/8|
2P206-2-12G F C
Specs
2 x Couplings 3/8":
BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate:
40 (l/min) at 0.2 MPa
10.567 (gal/min) at 0.2 MPa
Temperature:
-25 °C to 100 °C
-13 °F to 212 °F
Seals:
NBR & PUR
Weight:
2399.2 g
5.29 lb
For more information contact us:
[email protected]
2
2
10
3/8"
|3/8|
2P206-2-12N F C
Specs
2 x Couplings 3/8":
NPTF 1/2" FEMALE - ANSI B1.20.3
Flow Rate:
40 (l/min) at 0.2 MPa
10.567 (gal/min) at 0.2 MPa
Seals:
NBR & PUR
Weight:
2400 g
5.29 lb
2
2
10
3/8"
|3/8|
2P206-2-12S F C
Specs
2 x Couplings 3/8":
3/4" - 16 UNF FEMALE ORB - ISO 11926-1
Flow Rate:
40 (l/min) at 0.2 MPa
10.567 (gal/min) at 0.2 MPa
Seals:
NBR & PUR
Weight:
2400 g
5.29 lb
2
2
10
3/8"
|3/8|
2P206-2-2/18F C
Specs
2 x Couplings 3/8":
M18x1,5 MALE 12L - ISO 8434-1-L
Flow Rate:
40 (l/min) at 0.2 MPa
10.567 (gal/min) at 0.2 MPa
Temperature:
-25 °C to 100 °C
-13 °F to 212 °F
Seals:
NBR & PUR
Weight:
2385 g
5.26 lb
For more information contact us:
[email protected]
2
2
10
3/8"
|3/8|
2P206-2-2/22F C
Specs
2 x Couplings 3/8":
M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate:
40 (l/min) at 0.2 MPa
10.567 (gal/min) at 0.2 MPa
Temperature:
-25 °C to 100 °C
-13 °F to 212 °F
Seals:
NBR & PUR
Weight:
2345 g
5.17 lb
For more information contact us:
[email protected]
2
2
10
3/8"
|3/8|
2P206-2-38G F C
Specs
2 x Couplings 3/8":
BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate:
40 (l/min) at 0.2 MPa
10.567 (gal/min) at 0.2 MPa
Temperature:
-25 °C to 100 °C
-13 °F to 212 °F
Seals:
NBR & PUR
Weight:
2440 g
5.38 lb
For more information contact us:
[email protected]
2
2
10
3/8"
|3/8|
2P206-2-38S F C
Specs
2 x Couplings 3/8":
9/16" - 18 UNF FEMALE ORB - ISO 11926-1
Flow Rate:
40 (l/min) at 0.2 MPa
10.567 (gal/min) at 0.2 MPa
Seals:
NBR & PUR
Weight:
2400 g
5.29 lb
2
2

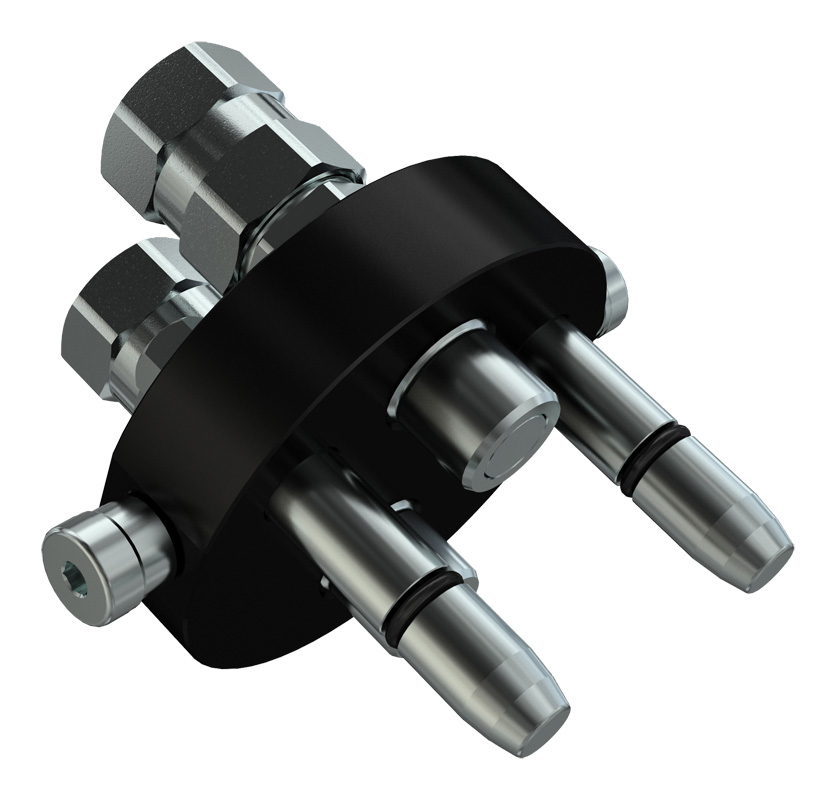

Male
Filter items
Units
Metric
Imperial
Size (mm)
10 mm
12.5 mm
Size (in)
3/8"
1/2"
PartNumber
Specs
Housings
Couplings
10
3/8"
|3/8|
2P206-2-12G M C
Specs
2 x Couplings 3/8":
BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate:
40 (l/min) at 0.2 MPa
10.567 (gal/min) at 0.2 MPa
Temperature:
-25 °C to 100 °C
-13 °F to 212 °F
Seals:
NBR & PUR
Weight:
891 g
1.96 lb
For more information contact us:
[email protected]
2
2
10
3/8"
|3/8|
2P206-2-12N M C
Specs
2 x Couplings 3/8":
NPTF 1/2" FEMALE - ANSI B1.20.3
Flow Rate:
40 (l/min) at 0.2 MPa
10.567 (gal/min) at 0.2 MPa
Seals:
NBR & PUR
Weight:
880 g
1.94 lb
2
2
10
3/8"
|3/8|
2P206-2-2/18M C
Specs
2 x Couplings 3/8":
M18x1,5 MALE 12L - ISO 8434-1-L
Flow Rate:
40 (l/min) at 0.2 MPa
10.567 (gal/min) at 0.2 MPa
Temperature:
-25 °C to 100 °C
-13 °F to 212 °F
Seals:
NBR & PUR
Weight:
846 g
1.87 lb
For more information contact us:
[email protected]
2
2
10
3/8"
|3/8|
2P206-2-2/22M C
Specs
2 x Couplings 3/8":
M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate:
40 (l/min) at 0.2 MPa
10.567 (gal/min) at 0.2 MPa
Temperature:
-25 °C to 100 °C
-13 °F to 212 °F
Seals:
NBR & PUR
Weight:
867 g
1.91 lb
For more information contact us:
[email protected]
2
2
10
3/8"
|3/8|
2P206-2-38G M C
Specs
2 x Couplings 3/8":
BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate:
40 (l/min) at 0.2 MPa
10.567 (gal/min) at 0.2 MPa
Temperature:
-25 °C to 100 °C
-13 °F to 212 °F
Seals:
NBR & PUR
Weight:
896 g
1.98 lb
For more information contact us:
[email protected]
2
2
10
3/8"
|3/8|
2P206-2-38S M C
Specs
2 x Couplings 3/8":
9/16"-18 UNF FEMALE ORB - ISO 11926-1
Flow Rate:
40 (l/min) at 0.2 MPa
10.567 (gal/min) at 0.2 MPa
Temperature:
-25 °C to 100 °C
-13 °F to 212 °F
Seals:
NBR & PUR
Weight:
896 g
1.98 lb
For more information contact us:
[email protected]
2
2
10
3/8"
|3/8|
3P206-2-12S M C
Specs
2 x Couplings 3/8":
3/4" - 16 UNF FEMALE ORB - ISO 11926-1
Flow Rate:
40 (l/min) at 0.2 MPa
10.567 (gal/min) at 0.2 MPa
Seals:
NBR & PUR
Weight:
880 g
1.94 lb
2
2
10
3/8"
|3/8|
3P206-2-38G M C
Specs
2 x Couplings 3/8":
BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate:
40 (l/min) at 0.2 MPa
10.567 (gal/min) at 0.2 MPa
Temperature:
-25 °C to 100 °C
-13 °F to 212 °F
Seals:
NBR & PUR
Weight:
1112 g
2.45 lb
For more information contact us:
[email protected]
2
2
12,5
1/2"
|1/2|
3P206-2-12G M C
Specs
2 x Couplings 1/2":
BSPP 1/2" FEMALE - ISO 1179-1
Temperature:
-25 °C to 100 °C
-13 °F to 212 °F
Seals:
NBR & PUR
Weight:
1178.4 g
2.6 lb
For more information contact us:
[email protected]
2
2
Technical Specifications
Burst pressure (MPa)
Burst pressure (psi)
Dash Size
Size (
mm
Inch
)
Working Pressure
Flow Rate (
l/min
gal/min
)
Spillage (ml)
Male
Burst pressure
Female
Burst pressure
Male + Female
Burst pressure
06
10
3/8"
25 MPa
3625.943 psi
40
10.567
0.008
100 MPa
100
14503.774 psi
14503.774
100 MPa
100
14503.774 psi
14503.774
100 MPa
100
14503.774 psi
14503.774
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C
-13 °F to 212 °F
Surface treatment:
MATE 500 (CrIII) & Paint
Warnings:
This product can expose you to chemicals such as Lead or Nickel which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to
www.p65warnings.ca.gov
.
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual
