Product series
P1004
Applications
Agriculture Construction Equipment Industrial Vehicles & Road Machines

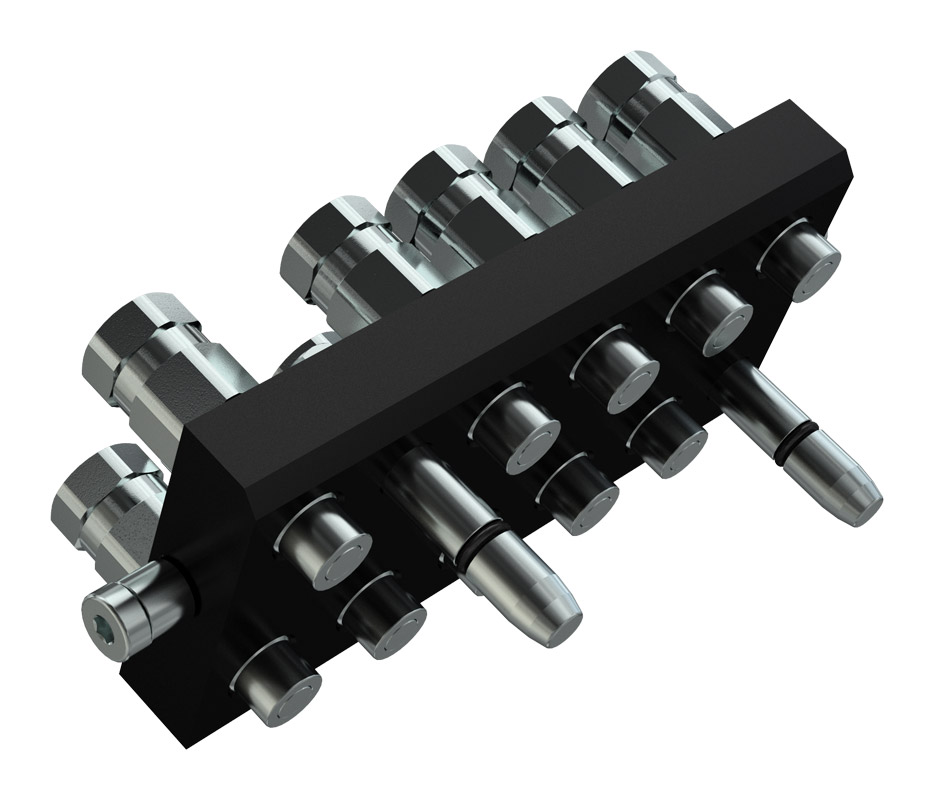

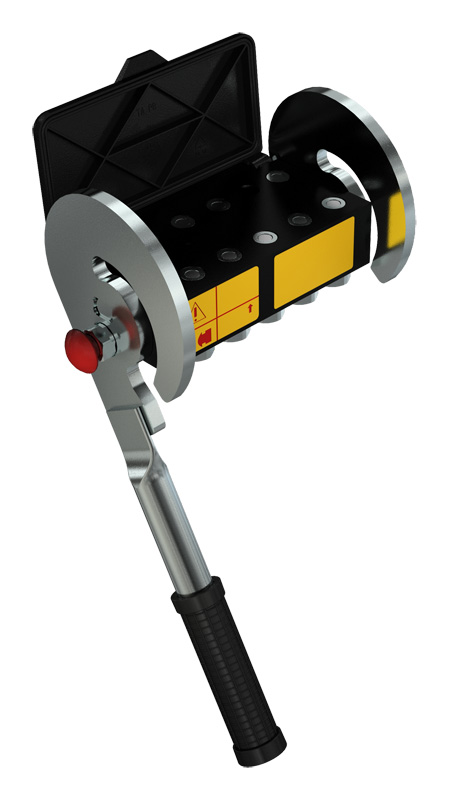

MultiFaster, 10 lines, size 04.

Configure your Multifaster

Female

Filter items
Units
PartNumber Details Housings Couplings
6,3 1/4" 2P1004-10-14GFC
Specs
10 x Couplings 1/4":BSPP 1/4" FEMALE - ISO 1179-1
Flow Rate: 20 (l/min) at 0.2 MPa 5.283 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 5563.4 g 12.27 lb

For more information contact us: [email protected]
10 10

Male

Filter items
Units
PartNumber Specs Housings Couplings
6,3 1/4" 2P1004-10-14GMC
Specs
10 x Couplings 1/4":BSPP 1/4" FEMALE - ISO 1179-1
Flow Rate: 20 (l/min) at 0.2 MPa 5.283 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 2677 g 5.9 lb

For more information contact us: [email protected]
10 10
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
04 6.3 1/4" 25 MPa 3625.943 psi 20 5.283 0.008 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
MATE 500 (CrIII) & Paint
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual
