Product series
NV stainless steel
Applications
Agriculture Industrial

Standard couplings with poppet valve stainless steel versions. ISO 7241-A interchange

Standard couplings in stainless steel for general purpose applications with poppet valve shut-off system. ISO 7241-A interchange
Downloads

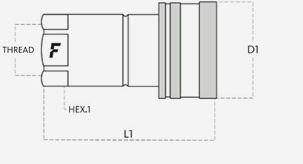

Female

Female

Filter items
Units
PartNumber Thread Details HEX1 D1 L1
12,5 1/2" NV 12 GAS F 2V BSPP 1/2" FEMALE
Specs
Flow Rate: 75 (l/min) at 0.2 MPa 19.813 (gal/min) at 0.2 MPa
Seals: FKM
Weight: 265 g 0.58 lb
27 1.06 38 1.5 2.6 66

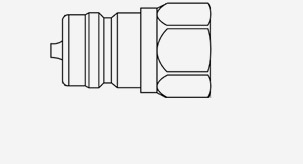

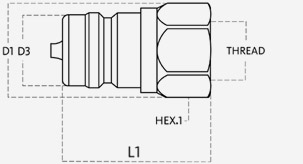

Male

Male

Filter items
Units
PartNumber Thread Specs HEX1 D1 D3 L1
12,5 1/2" NV 12 GAS M 2V BSPP 1/2" FEMALE
Specs
Flow Rate: 75 (l/min) at 0.2 MPa 19.813 (gal/min) at 0.2 MPa
Seals: FKM
Weight: 88 g 0.19 lb
27 1.06 30 1.18 20.5 0.81 1.73 44
  • Various Accessories
  • Dust Protections
  • FastGrip

Accessories & Spares

Size (mm) Size (in) Thread Part Number Material
12,5 1/2" SS 12 M Steel
12,5 1/2" IDES27 B PVC
12,5 1/2" IDES27 G PVC
12,5 1/2" IDES27 R PVC
12,5 1/2" IDES27 V PVC
12,5 1/2" SS 12 M TA R Steel & Plastic
12,5 1/2" SS 12 M TA N Steel & Plastic
FastGrip
Body Sizes Part Number Thread
12,5 mm
1/2"
 LM 12 GAS BS 5380
PVC caps male Dust Protection - PVC - Male
Size Part Number Color
1/2"
12,5 mm
 TF 12 V
Green
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Force to connect (N) Male Burst pressure Female Burst pressure Male + Female Burst pressure
08 12.5 1/2" 27.5 MPa 3988.538 psi 75 19.813 1.8 80 110 MPa 15954.151 psi 110 MPa 15954.151 psi 120 MPa 17404.529 psi
Material:
Stainless Steel
Seals:
FKM
Working temperatures:
-20 °C to 200 °C -4 °F to 392 °F
Specifications:
Series Interchange: FASTER
Valve Type: Poppet
Connection: Sleeve Retraction
Disconnection: Sleeve Retraction
Connection Under Pressure: Not Allowed

Pressure Drop

Data shown in the diagram are indicative and not binding.
(§) 1 MPa = 10 bar
Dash size are specified.

NV stainless steel flow diagram
