Product series
MC6
Applications
Agriculture

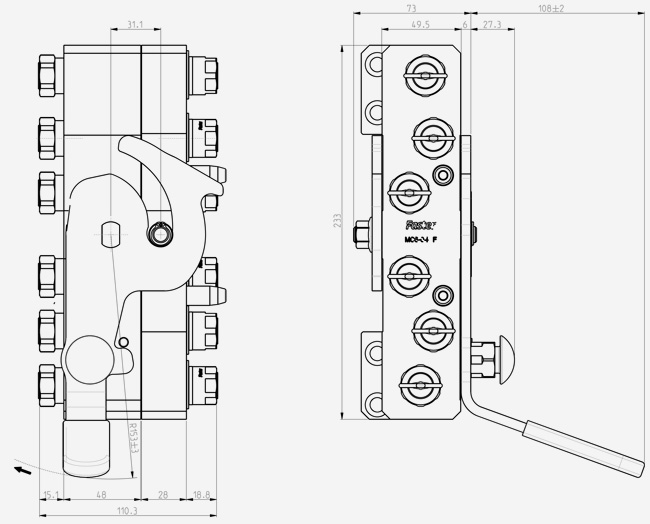

MultiFaster 6 lines, size 04. ISO 16028 individual couplings connectable.

It's possible to connect to the male plate either its counterpart or individual 1/4" female quick couplings compliant with ISO 16028.
Configure your Multifaster

Female

Filter items
Units
PartNumber Details Housings Couplings
6,3 1/4" MC6-04-38S FC
Specs
6 x Couplings 1/4":9/16"-18 UNF FEMALE ORB - ISO 11926-1
Flow Rate: 25 (l/min) at 0.2 MPa 6.604 (gal/min) at 0.2 MPa
Seals: NBR & PUR
6 6

Male

Filter items
Units
PartNumber Specs Housings Couplings
6,3 1/4" MC6-04-38S MC
Specs
6 x Couplings 1/4":9/16"-18 UNF FEMALE ORB - ISO 11926-1
Flow Rate: 25 (l/min) at 0.2 MPa 6.604 (gal/min) at 0.2 MPa
Seals: NBR & PUR
6 6
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
04 6.3 1/4" 20 MPa 2900.755 psi 25 6.604 0.008 80 MPa 11603.019 psi 80 MPa 11603.019 psi 80 MPa 11603.019 psi
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
MATE 500 (CrIII) & Paint
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual

Exceptions:

It’s possible to connect the two plates with residual pressure up to max. 100 bar on female plate side and within no more than two lines.
