Product series
Manifold with screwed couplings for Rear SCV
Applications
Agriculture

Custom-made casting solutions for agriculture

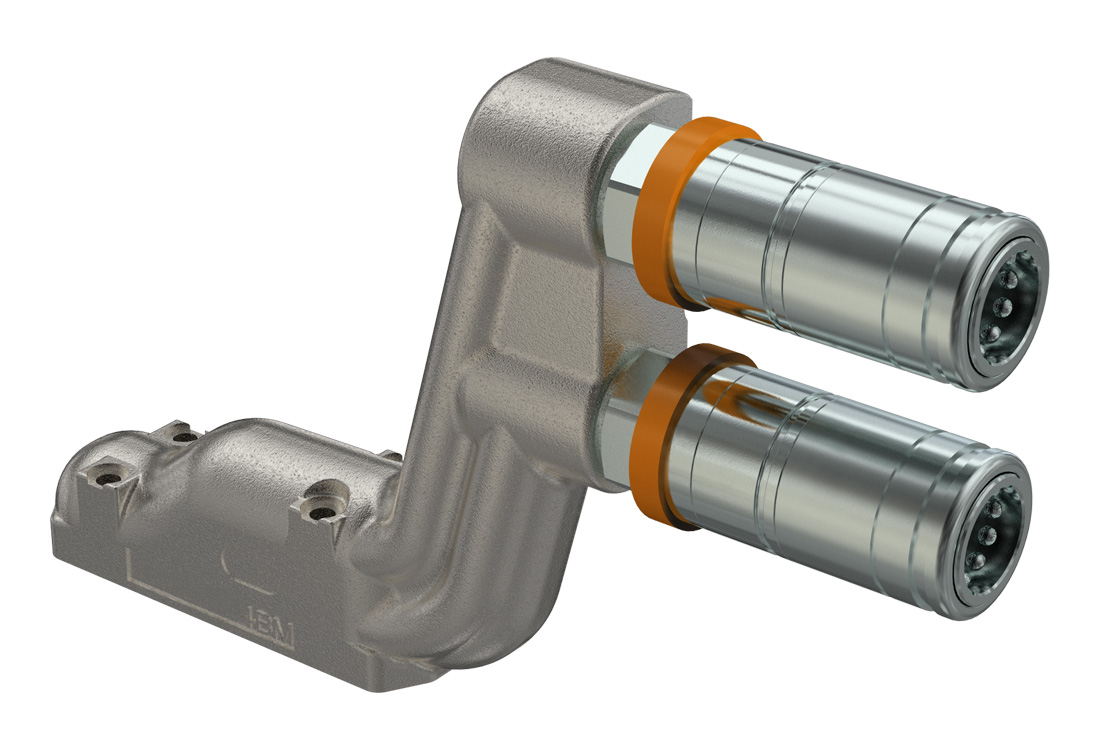

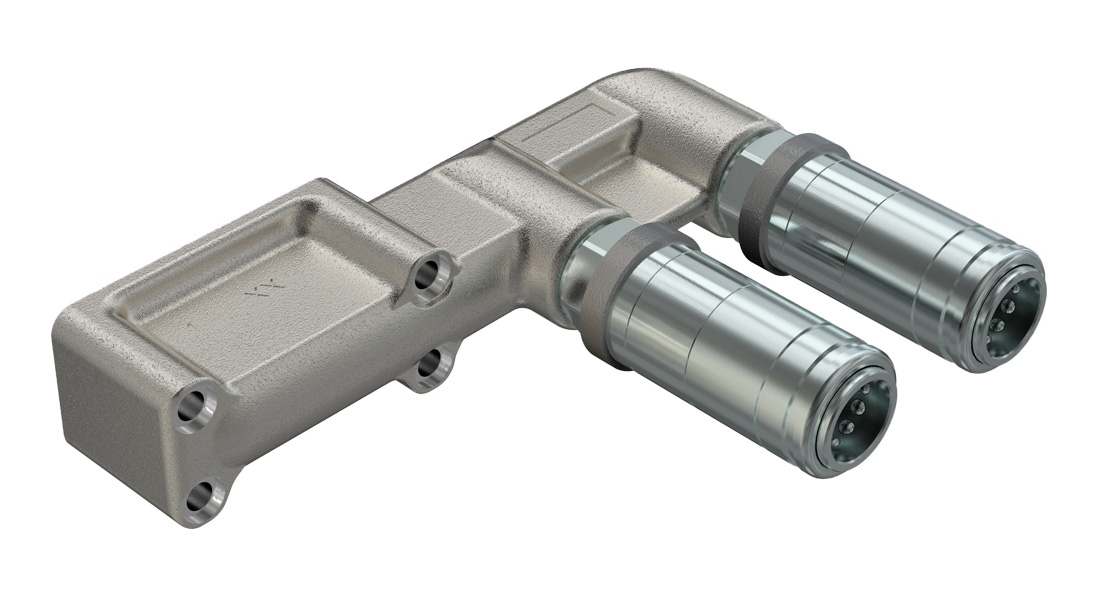

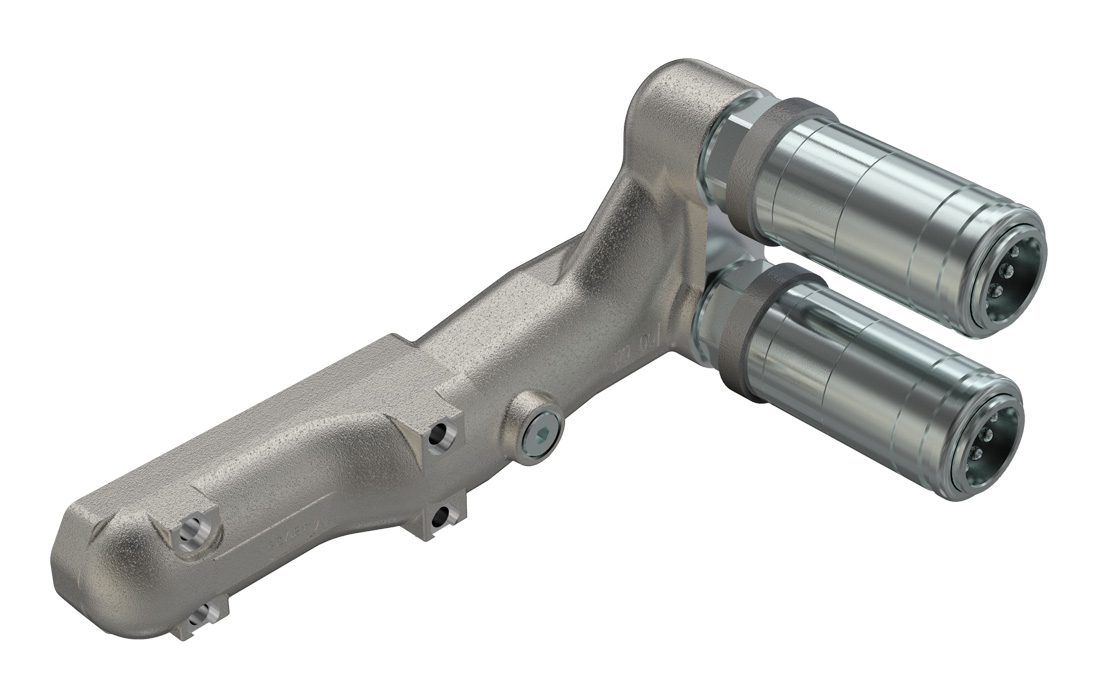

Cast iron manifold with 1/2" couplings screwed on. Designed to be installed directly on selective control valves (SCV). Every single casting is specifically developed for each tractor manufacturer, to meet space requirements and to match SCV interface. Manifolds can be equipped with different push-pull couplers for agriculture, depending on the required features.
Technical Specifications
Material:
Cast Iron & Steel
Seals:
PUR
Working temperatures:
-25 °C to 125 °C -13 °F to 257 °F
Surface treatment:
CrIII
Specifications:
Series Interchange: ISO 7241-A
Valve Type: Poppet
Connection: Push to Connect
Disconnection: Pull to Disconnect
Connection Under Pressure: Allowed Both Halves up to W.P.
