Standard couplings for agriculture, ISO 7241-A interchange

Standard couplings for agriculture applications. Complete range of sizes from 1/4" to 2" (with BSP, NPT or SAE female threads available). ISO 7241 part A interchange.
Downloads
Female

Female

Filter items
Units

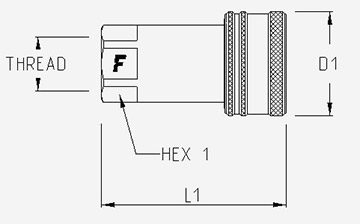

PartNumber Thread Details HEX1 D1 L1
6,3 1/4" ANV 14 GAS F BSPP 1/4" FEMALE
Specs
Flow Rate: 8 (l/min) at 0.2 MPa 2.113 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 84.9 g 0.19 lb
19 0.75 25 0.98 1.86 47.2
6,3 1/4" ANV 14 JPT F RC 1/4 FEMALE (JPT)
Specs
Flow Rate: 8 (l/min) at 0.2 MPa 2.113 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 86.2 g 0.19 lb
19 0.75 25 0.98 1.86 47.2
6,3 1/4" ANV 14 NPT F NPTF 1/4" FEMALE
Specs
Flow Rate: 8 (l/min) at 0.2 MPa 2.113 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 84.9 g 0.19 lb
19 0.75 25 0.98 1.89 48
6,3 1/4" ANV0/1415 F M14x1,5 FEMALE ORB
Specs
Flow Rate: 8 (l/min) at 0.2 MPa 2.113 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 82.7 g 0.18 lb
19 0.75 25 0.98 1.88 47.7
10 3/8" ANV 1815 F M18x1,5 FEMALE
Specs
Flow Rate: 30 (l/min) at 0.2 MPa 7.925 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 144.8 g 0.32 lb
22 0.87 32 1.26 2.24 57
10 3/8" ANV 38 GAS F BSPP 3/8" FEMALE
Specs
Flow Rate: 30 (l/min) at 0.2 MPa 7.925 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 150 g 0.33 lb
22 0.87 32 1.26 2.24 57
10 3/8" ANV 38 JPT F RC 3/8 FEMALE (JPT)
Specs
Flow Rate: 30 (l/min) at 0.2 MPa 7.925 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 150.3 g 0.33 lb
22 0.87 32 1.26 2.25 57.2
10 3/8" ANV 38 NPT F NPTF 3/8" FEMALE
Specs
Flow Rate: 30 (l/min) at 0.2 MPa 7.925 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 150 g 0.33 lb
22 0.87 32 1.26 2.24 57
10 3/8" ANV 38-38SAE F 9/16" - 18 UNF FEMALE ORB
Specs
Flow Rate: 30 (l/min) at 0.2 MPa 7.925 (gal/min) at 0.2 MPa
Seals: NBR
Weight: 56 g 0.12 lb
22 0.87 32 1.26 2.24 57
20 3/4" ANV 34 GAS F BSPP 3/4" FEMALE
Specs
Flow Rate: 180 (l/min) at 0.2 MPa 47.551 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 478.2 g 1.05 lb
34 1.34 48 1.89 3.25 82.5
20 3/4" ANV 34 JPT F RC 3/4 FEMALE (JPT)
Specs
Flow Rate: 180 (l/min) at 0.2 MPa 47.551 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 486.6 g 1.07 lb
34 1.34 48 1.89 3.25 82.5
20 3/4" ANV 34 NPT F NPTF 3/4" FEMALE
Specs
Flow Rate: 180 (l/min) at 0.2 MPa 47.551 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 486.6 g 1.07 lb
34 1.34 48 1.89 3.25 82.5
20 3/4" ANV 34-34SAE F 1-1/16"-12 UN FEMALE ORB
Specs
Flow Rate: 180 (l/min) at 0.2 MPa 47.551 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 414.4 g 0.91 lb
34 1.34 48 1.89 3.25 82.5
25 1" ANV 1 GAS F BSPP 1" FEMALE
Specs
Flow Rate: 270 (l/min) at 0.2 MPa 71.326 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 754.8 g 1.66 lb
41 1.61 56 2.2 3.94 100
25 1" ANV 1 JPT F RC 1 FEMALE (JPT)
Specs
Flow Rate: 270 (l/min) at 0.2 MPa 71.326 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 764 g 1.68 lb
41 1.61 56 2.2 3.94 100
25 1" ANV 1 NPT F NPTF 1" FEMALE
Specs
Flow Rate: 270 (l/min) at 0.2 MPa 71.326 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 754.8 g 1.66 lb
41 1.61 56 2.2 3.94 100
25 1" ANV 1-1 SAE F 1-5/16"-12 UN FEMALE ORB
Specs
Flow Rate: 270 (l/min) at 0.2 MPa 71.326 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 747.6 g 1.65 lb
41 1.61 56 2.2 3.94 100
25 1" ANV1-34NPT F HY NPTF 3/4" FEMALE
Specs
Flow Rate: 180 (l/min) at 0.2 MPa 47.551 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 824 g 1.82 lb
41 1.61 56.2 2.21 3.94 100
31,5 1-1/4" ANV114 GAS F BSPP 1-1/4" FEMALE
Specs
Flow Rate: 330 (l/min) at 0.2 MPa 87.177 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 1445.53 g 3.19 lb
50 1.97 70 2.76 4.57 116
31,5 1-1/4" ANV114 NPT F NPTF 1-1/4" FEMALE
Specs
Flow Rate: 330 (l/min) at 0.2 MPa 87.177 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 1460.3 g 3.22 lb
50 1.97 70 2.76 4.57 116
37,5 1-1/2" ANV112 GAS F BSPP 1-1/2" FEMALE
Specs
Flow Rate: 450 (l/min) at 0.2 MPa 118.877 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 2391.5 g 5.27 lb
60 2.36 84 3.31 5.22 132.5
50 2" ANV 2 GAS F BSPP 2" FEMALE
Specs
Flow Rate: 900 (l/min) at 0.2 MPa 237.755 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 4278.2 g 9.43 lb
75 2.95 100 3.94 6.34 161
50 2" ANV 2 NPT F NPTF 2" FEMALE
Specs
Flow Rate: 900 (l/min) at 0.2 MPa 237.755 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 4278.2 g 9.43 lb
75 2.95 100 3.94 6.34 161

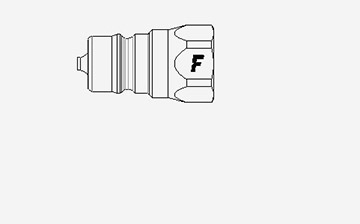

Male

Male

Filter items
Units

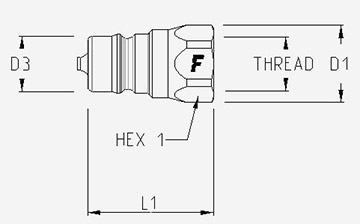

PartNumber Thread Specs HEX1 D1 D3 L1
6,3 1/4" ANV 14 GAS M BSPP 1/4" FEMALE
Specs
Flow Rate: 8 (l/min) at 0.2 MPa 2.113 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 45.6 g 0.1 lb
19 0.75 21 0.83 11.8 0.46 1.52 38.6
6,3 1/4" ANV 14 JPT M RC 1/4 FEMALE (JPT)
Specs
Flow Rate: 8 (l/min) at 0.2 MPa 2.113 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 46.5 g 0.1 lb
19 0.75 21 0.83 11.8 0.46 1.52 38.6
6,3 1/4" ANV 14 NPT M NPTF 1/4" FEMALE
Specs
Flow Rate: 8 (l/min) at 0.2 MPa 2.113 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 45.8 g 0.1 lb
19 0.75 21 0.83 11.8 0.46 1.52 38.6
6,3 1/4" ANV 14-38SAE M 9/16"-18 UNF FEMALE ORB
Specs
Flow Rate: 8 (l/min) at 0.2 MPa 2.113 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 44.2 g 0.1 lb
19 0.75 21 0.83 11.8 0.46 1.58 40.2
6,3 1/4" ANV0/1415 M M14x1,5 FEMALE ORB
Specs
Flow Rate: 8 (l/min) at 0.2 MPa 2.113 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 42.3 g 0.09 lb
19 0.75 21 0.83 11.8 0.46 1.54 39
10 3/8" ANV 1815 M M18x1,5 FEMALE
Specs
Flow Rate: 30 (l/min) at 0.2 MPa 7.925 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 145.6 g 0.32 lb
22 0.87 24 0.94 17.2 0.68 1.54 39
10 3/8" ANV 38 GAS M BSPP 3/8" FEMALE
Specs
Flow Rate: 30 (l/min) at 0.2 MPa 7.925 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 54.9 g 0.12 lb
22 0.87 24 0.94 17.2 0.68 1.54 39
10 3/8" ANV 38 JPT M RC 3/8 FEMALE (JPT)
Specs
Flow Rate: 30 (l/min) at 0.2 MPa 7.925 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 155 g 0.34 lb
22 0.87 24 0.94 17.2 0.68 1.54 39
10 3/8" ANV 38 NPT M NPTF 3/8" FEMALE
Specs
Flow Rate: 30 (l/min) at 0.2 MPa 7.925 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 54.9 g 0.12 lb
22 0.87 24 0.94 17.2 0.68 1.54 39
10 3/8" ANV 38-38SAE M 9/16" - 18 UNF FEMALE ORB
Specs
Flow Rate: 30 (l/min) at 0.2 MPa 7.925 (gal/min) at 0.2 MPa
Seals: NBR
Weight: 55 g 0.12 lb
22 0.87 24 0.94 17.2 0.68 1.54 39
20 3/4" ANV 34 GAS M BSPP 3/4" FEMALE
Specs
Flow Rate: 180 (l/min) at 0.2 MPa 47.551 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 180.5 g 0.4 lb
34 1.34 38 1.5 29 1.14 2.17 55
20 3/4" ANV 34 GAS MVAL
Specs
Flow Rate: 180 (l/min) at 0.2 MPa 47.551 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 216.3 g 0.48 lb
34 1.34 38 1.5 29 1.14 2.17 55
20 3/4" ANV 34 JPT M RC 3/4 FEMALE (JPT)
Specs
Flow Rate: 180 (l/min) at 0.2 MPa 47.551 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 80.7 g 0.18 lb
34 1.34 38 1.5 29 1.14 2.17 55
20 3/4" ANV 34 NPT M NPTF 3/4" FEMALE
Specs
Flow Rate: 180 (l/min) at 0.2 MPa 47.551 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 180.5 g 0.4 lb
34 1.34 38 1.5 29 1.14 2.17 55
20 3/4" ANV 34-34SAE M 1-1/16"-12 UN FEMALE ORB
Specs
Flow Rate: 180 (l/min) at 0.2 MPa 47.551 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 169.8 g 0.37 lb
34 1.34 38 1.5 29 1.14 2.17 55
20 3/4" ANV0/2615 M M26x1,5 FEMALE ORB
Specs
Flow Rate: 180 (l/min) at 0.2 MPa 47.551 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 161.3 g 0.36 lb
34 1.34 38 1.5 29 1.14 2.09 53
25 1" ANV 1 GAS M BSPP 1" FEMALE
Specs
Flow Rate: 270 (l/min) at 0.2 MPa 71.326 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 319.4 g 0.7 lb
41 1.61 45 1.77 34.3 1.35 2.6 66
25 1" ANV 1 JPT M RC 1 FEMALE (JPT)
Specs
Flow Rate: 270 (l/min) at 0.2 MPa 71.326 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 323.5 g 0.71 lb
41 1.61 45 1.77 34.3 1.35 2.6 66
25 1" ANV 1 NPT M NPTF 1" FEMALE
Specs
Flow Rate: 270 (l/min) at 0.2 MPa 71.326 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 328.5 g 0.72 lb
41 1.61 45 1.77 34.3 1.35 2.6 66
25 1" ANV1-34NPT M HY
Specs
Flow Rate: 180 (l/min) at 0.2 MPa 47.551 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 388 g 0.86 lb
41 1.61 45 1.77 34.3 1.35 2.6 66
31,5 1-1/4" ANV114 GAS M BSPP 1-1/4" FEMALE
Specs
Flow Rate: 330 (l/min) at 0.2 MPa 87.177 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 530.6 g 1.17 lb
50 1.97 55.5 2.19 44.9 1.77 2.87 73
31,5 1-1/4" ANV114 NPT M NPTF 1-1/4" FEMALE
Specs
Flow Rate: 330 (l/min) at 0.2 MPa 87.177 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 529.5 g 1.17 lb
50 1.97 55.5 2.19 44.9 1.77 2.87 73
37,5 1-1/2" ANV112 GAS M BSPP 1-1/2" FEMALE
Specs
Flow Rate: 450 (l/min) at 0.2 MPa 118.877 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 529.6 g 1.17 lb
60 2.36 66 2.6 55 2.17 3.27 83
50 2" ANV 2 GAS M BSPP 2" FEMALE
Specs
Flow Rate: 900 (l/min) at 0.2 MPa 237.755 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 1494.1 g 3.29 lb
75 2.95 85 3.35 65 2.56 3.94 100
50 2" ANV 2 NPT M NPTF 2" FEMALE
Specs
Flow Rate: 900 (l/min) at 0.2 MPa 237.755 (gal/min) at 0.2 MPa
Temperature: -25 °C to 125 °C -13 °F to 257 °F
Seals: NBR
Weight: 1494.1 g 3.29 lb
75 2.95 85 3.35 65 2.56 3.94 100
  • Various Accessories
  • Dust Protections
  • Seals

Accessories & Spares

Size (mm) Size (in) Thread Part Number Material
12,5 1/2" SS 12 M Steel
12,5 1/2" SS 12 M TA R Steel & Plastic
12,5 1/2" SS 12 M TA N Steel & Plastic
PVC caps female Dust Protection - PVC - Female
Size Part Number Color
1"
25 mm
 TMA 1
Yellow
1"
25 mm
 TMA 1 N
Black
1"
25 mm
 TMA 1 R
Red
1/4"
6,3 mm
 TMA 14
Yellow
1/4"
6,3 mm
 TMA 14 A
Orange
1/4"
6,3 mm
 TMA 14 B
Blue
1/4"
6,3 mm
 TMA 14 N
Black
1/4"
6,3 mm
 TMA 14 R
Red
1/4"
6,3 mm
 TMA 14 V
Green
3/4"
20 mm
 TMA 34
Yellow
3/4"
20 mm
 TMA 34 N
Black
3/4"
20 mm
 TMA 34 R
Red
3/8"
10 mm
 TMA 38
Yellow
3/8"
10 mm
 TMA 38 A
Orange
3/8"
10 mm
 TMA 38 B
Blue
3/8"
10 mm
 TMA 38 G
Yellow
3/8"
10 mm
 TMA 38 N
Black
3/8"
10 mm
 TMA 38 R
Red
3/8"
10 mm
 TMA 38 V
Green
PVC caps male Dust Protection - PVC - Male
Size Part Number Color
1"
25 mm
 TFA 1
Yellow
1"
25 mm
 TFA 1 N
Black
1"
25 mm
 TFA 1 R
Red
1/4"
6,3 mm
 TFA 14
Yellow
1/4"
6,3 mm
 TFA 14 B
Black
1/4"
6,3 mm
 TFA 14 N
Black
1/4"
6,3 mm
 TFA 14 R
Red
1/4"
6,3 mm
 TFA 14 V
Green
3/4"
20 mm
 TFA 34
Yellow
3/4"
20 mm
 TFA 34 B
Blue
3/4"
20 mm
 TFA 34 N
Black
3/4"
20 mm
 TFA 34 R
Red
3/8"
10 mm
 TFA 38
Yellow
3/8"
10 mm
 TFA 38 A
Orange
3/8"
10 mm
 TFA 38 B
Blue
3/8"
10 mm
 TFA 38 N
Black
3/8"
10 mm
 TFA 38 R
Red
3/8"
10 mm
 TFA 38 V
Green
Seal kits
Size Thread Part Number
25 mm 1" F SK ANV 1
37,5 mm 1-1/2" F SK ANV 112
31,5 mm 1-1/4" F SK ANV 114
6,3 mm 1/4" F SK ANV 14
50 mm 2" F SK ANV 2
20 mm 3/4" F SK ANV 34
10 mm 3/8" F SK ANV 38
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Force to connect (N) Male Burst pressure Female Burst pressure Male + Female Burst pressure
04 6.3 1/4" 50 MPa 7251.887 psi 8 2.113 0.5 45 200 MPa 29007.548 psi 200 MPa 29007.548 psi 200 MPa 29007.548 psi
06 10 3/8" 30 MPa 4351.132 psi 30 7.925 1.1 80 120 MPa 17404.529 psi 140 MPa 20305.283 psi 160 MPa 23206.038 psi
08 12.5 1/2" 30 MPa 4351.132 psi 75 19.813 1.8 80 120 MPa 17404.529 psi 120 MPa 17404.529 psi 130 MPa 18854.906 psi
12 20 3/4" 30 MPa 4351.132 psi 180 47.551 8 150 120 MPa 17404.529 psi 120 MPa 17404.529 psi 120 MPa 17404.529 psi
16 25 1" 25 MPa 3625.943 psi 270 71.326 10 150 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
20 31.5 1-1/4" 25 MPa 3625.943 psi 330 87.177 20 170 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
24 37.5 1-1/2" 20 MPa 2900.755 psi 450 118.877 32 255 80 MPa 11603.019 psi 80 MPa 11603.019 psi 80 MPa 11603.019 psi
32 50 2" 15 MPa 2175.566 psi 900 237.755 85 440 60 MPa 8702.264 psi 60 MPa 8702.264 psi 60 MPa 8702.264 psi
Material:
Steel
Seals:
NBR
Working temperatures:
-25 °C to 125 °C -13 °F to 257 °F
Surface treatment:
MATE 500 (CrIII)
Specifications:
Series Interchange: ISO 7241-A
Valve Type: Poppet
Connection: Sleeve Retraction
Disconnection: Sleeve Retraction
Connection Under Pressure: Not Allowed

Pressure Drop

Data shown in the diagram are indicative and not binding.
(§) 1 MPa = 10 bar
Dash size are specified.

ANV flow diagram
