3PLX
Applications
Agriculture

Mobile Plate for Combine Application

Multiconnection 2 lines dash 04 and 2 lines dash 08, with 3 empty seats suitable for electrical connectors. Flat face couplers, CrIII plated. Plate available in two versions: aluminum natural color sandblasted finish, and black painted. Multiconnection is MARKET interchangeable, suitable for Claas combine application
Configure your Multifaster

Male

Filter items
Units

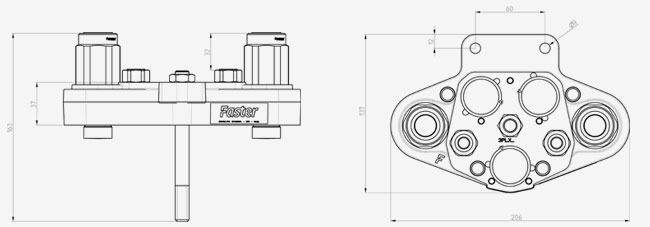

PartNumber Specs Housings Couplings
6,3 & 12,5 1/4" & 1/2" 3PLX-0-4 M C
Specs
2 x Couplings 1/4":BSPP 1/4" FEMALE - ISO 1179-1
Flow Rate: 16 (l/min) at 0.2 MPa 4.227 (gal/min) at 0.2 MPa
2 x Couplings 1/2":7/8"-14 UNF FEMALE ORB - ISO 11926-1
Flow Rate: 65 (l/min) at 0.2 MPa 17.171 (gal/min) at 0.2 MPa
Seals: PUR

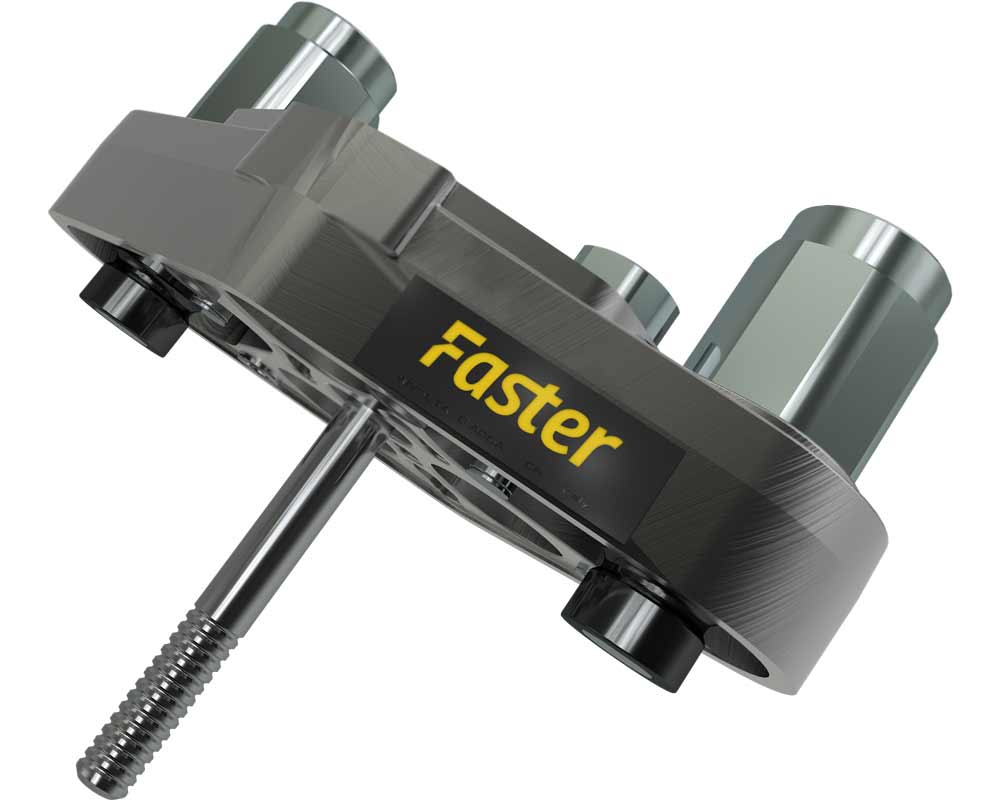

* Gray plate version.
7 4
6,3 & 12,5 1/4" & 1/2" 3PLX-0-4-A M C
Specs
2 x Couplings 1/4":BSPP 1/4" FEMALE - ISO 1179-1
Flow Rate: 16 (l/min) at 0.2 MPa 4.227 (gal/min) at 0.2 MPa
2 x Couplings 1/2":7/8"-14 UNF FEMALE ORB - ISO 11926-1
Flow Rate: 65 (l/min) at 0.2 MPa 17.171 (gal/min) at 0.2 MPa
Seals: PUR

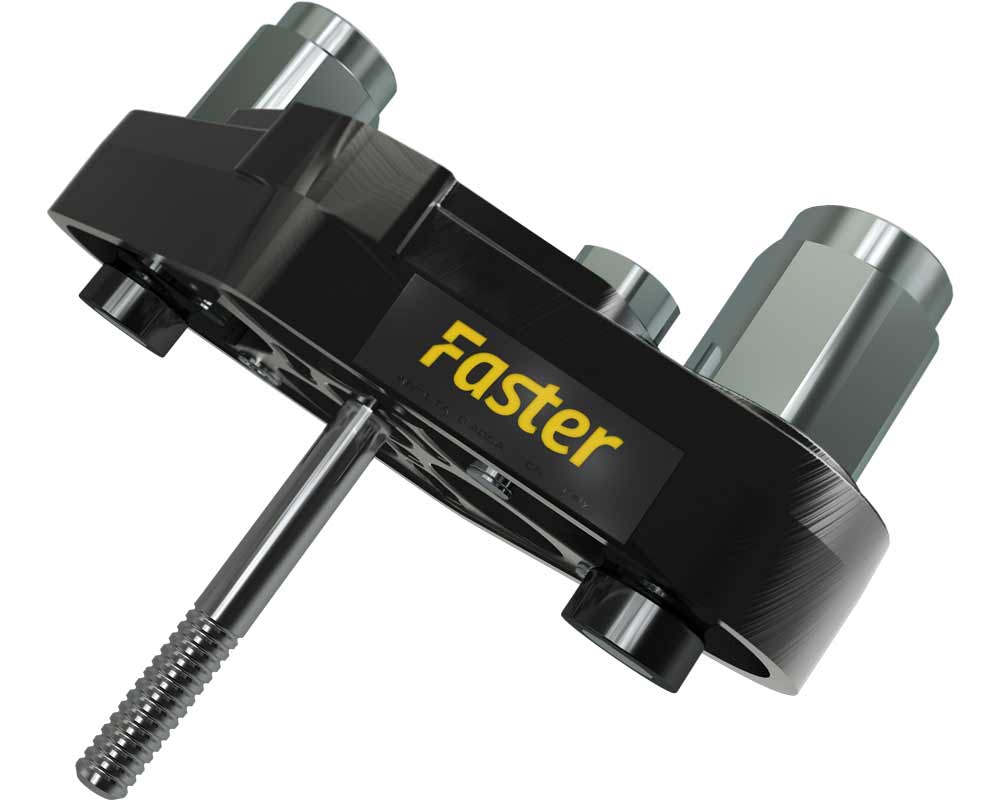

* Black plate version.
7 4
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
04 6.3 1/4" 15 MPa 2175.566 psi 16 4.227 0.006 60 MPa 8702.264 psi 60 MPa 8702.264 psi 60 MPa 8702.264 psi
08 12.5 1/2" 25 MPa 3625.943 psi 65 17.171 0.01 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
Material:
Aluminium & Steel
Seals:
PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
CrIII
Specifications:
Series Interchange: MARKET
Valve Type: Flat
Connection: Screw to Connect
Disconnection: Unscrew to Disconnect
Connection Under Pressure: Not Allowed

Exceptions:

Working pressure values referred to uncoupled condition. Working Pressure in coupled condition (Market Interchange): 30 MPa

Performance may vary depending on counterpart plate.
