Accessories & Spares
Various Accessories

Filter items
Units
PartNumber Description
SS 12 M Docking station for 1/2" ISO 7241 series A male couplings
IDES27 B Blue soft PVC line identifier suitable for 1/2" quick couplings with 27 mm hexagon
IDES27 G Yellow soft PVC line identifier suitable for 1/2" quick couplings with 27 mm hexagon
IDES27 R Red soft PVC line identifier suitable for 1/2" quick couplings with 27 mm hexagon
IDES27 V Green soft PVC line identifier suitable for 1/2" quick couplings with 27 mm hexagon
IDLP A Orange line identifier ring for 13/16"-16 UN male ORFS threads
IDLP B Blue line identifier ring for 13/16"-16 UN male ORFS threads
IDLP G Yellow line identifier ring for 13/16"-16 UN male ORFS threads
IDLP R Red line identifier ring for 13/16"-16 UN male ORFS threads
IDLP V Green line identifier ring for 13/16"-16 UN male ORFS threads
KIT PG Spare part for straight rubber holder assembled on modular oil-collection dust caps
KIT PG 45 Spare part for 45° rubber holder assembled on modular oil-collection dust caps
KIT PG 90 Spare part for 90° rubber holder assembled on modular oil-collection dust caps
KIT TARO TOP Spare part for top component of modular oil-collection dust caps (suitable for TARO series).
KIT TARV12 TOP Spare part for top component of modular oil-collection dust caps (suitable for TARV, TSRS and TSRD series)
KIT TUBOG8X2000 Rubber hose 8 mm diameter, 2000 mm length
RDRF 04 Lock washer and jam nut for bulkhead mounting of RF male couplings 1/4"
RDRF 06 Lock washer and jam nut for bulkhead mounting of RF male couplings 3/8"
RDRF 08 Lock washer and jam nut for bulkhead mounting of RF male couplings 1/2"
RDRF 12 Lock washer and jam nut for bulkhead mounting of RF male couplings 3/4"
RF 04 TD38 Steel adaptor for 1/4" couplings RF-RFL-RFLS series. 5/8"-18 UNF thread according to FIAT 14293 standards
RF 04 TS065 Brass braze tubing adaptor for 1/4"couplings RF - RFL - RFLS series (D=6.5 mm)
RF 06 TD38 Steel adaptor for 3/8" couplings RF-RFL-RFLS series. 5/8"-18 UNF thread according to FIAT 14293 standards
RF 06 TDL38 Steel adaptor for 3/8" couplings RF-RFL-RFLS series. 5/8"-18 UNF bulkhead thread according to FIAT 14293 standards
RF 06 TS065 Brass braze tubing adaptor for 3/8"couplings RF - RFL - RFLS series (D =6.5 mm)
RF 06 TS095 Brass braze tubing adaptor for 3/8"couplings RF - RFL - RFLS series (D=9.5 mm)
RF 06 TS100 Brass braze tubing adaptor for 3/8"couplings RF - RFL - RFLS series (D=10.0 mm)
RF 06 TS125 Brass braze tubing adaptor for 3/8"couplings RF - RFL - RFLS series (D=12.5 mm)
RF 06 TS125 2 Stainless steel braze tubing adaptor for 3/8"couplings RF - RFL - RFLS series (D=12.5 mm)
RF 08 P125 Steel hose barb fitting for 1/2" couplings RF-RFL-RFLS series, suitable for 1/2" hoses. D = 13.7 mm
RF 08 TD12 Steel adaptor for 1/2" couplings RF-RFL-RFLS series. 3/4"-16 UNF thread according to FIAT 14293 standards
RF 08 TD38 Steel adaptor for 1/2" couplings RF-RFL-RFLS series. 5/8"-18 UNF thread according to FIAT 14293 standards
RF 08 TD58 Steel adaptor for 1/2" couplings RF-RFL-RFLS series. 7/8"-14 UNF thread according to FIAT 14293 standards
RF 08 TS095 Brass braze tubing adaptor for 1/2"couplings RF - RFL - RFLS series (D=9.5 mm)
RF 08 TS100 Brass braze tubing adaptor for 1/2"couplings RF - RFL - RFLS series (D=10.0 mm)
RF 08 TS125 Brass braze tubing adaptor for 1/2"couplings RF - RFL - RFLS series (D=12.5 mm)
RF 08 TS160 Brass braze tubing adaptor for 1/2"couplings RF - RFL - RFLS series (D=16.0 mm)
RF 12 P190 Steel hose barb fitting for 3/4" couplings RF-RFL-RFLS series, suitable for 3/4" hoses. D = 20 mm
RF 12 TD58 Steel adaptor for 3/4" couplings RF-RFL-RFLS series. 7/8"-14 UNF thread according to FIAT 14293 standards
RF 12 TS125 Brass braze tubing adaptor for 3/4"couplings RF - RFL - RFLS series (D=12.5 mm)
RF 12 TS160 Brass braze tubing adaptor for 3/4"couplings RF - RFL - RFLS series (D=16.0 mm)
RF 12 TS190 Brass braze tubing adaptor for 3/4"couplings RF - RFL - RFLS series (D=19.0 mm)
RF 12 TS220 Brass braze tubing adaptor for 3/4"couplings RF - RFL - RFLS series (D=22.0 mm)
RF 16 TS220 Brass braze tubing adaptor for 1"couplings RF - RFL - RFLS series (D=22.0 mm)
RF 16 TS255 Brass braze tubing adaptor for 1"couplings RF - RFL - RFLS series (D=25.5 mm)
RF 16 TS290 Brass braze tubing adaptor for 1"couplings RF - RFL - RFLS series (D=29.0 mm)
RFMF 04 Mounting flange for 1/4" male couplings RFCS series
RFMF 06 Mounting flange for 3/8" male couplings RFCS series
RFMF 08 Mounting flange for 1/2" male couplings RFCS series
RFMF 12 Mounting flange for 3/4" male couplings RFCS series
RFMF 16 Mounting flange for 1" male couplings RFCS series
SD 12 Double clamp for 1/2" push-pull couplings ensuring the breakaway feature
TAR 12 B Oil collection tank (600 cc)
TAR 12 B L1 Oil collection tank (left side installation)
TAR 12 B L2 Oil collection tank (right side installation)
TAR 12 B P Oil collection tank (300 cc)
TAR 12 SB Metal bracket for TAR 12 B tank
TAR 12 SB P Metal bracket for TAR 12 B P tank
TAR 12 Y8 Y junction for 8 mm. diameter hoses
TARO D SPT Modular dust cap for oil collection (side hung opening, right, no hose fitting, no top cover). Suits a 48 mm center-to-center vertical distance between couplers.
TARO S SPT Modular dust cap for oil collection (side hung opening, left, no hose fitting, no top cover). Suits a 48 mm center-to-center vertical distance between couplers.
TARV 12 BDC B3 Oil collection tank with two inlet ports
TARV 12 BSC A3 Oil collection tank with one inlet port
TARV 12 GBS NH Seal for oil collection tanks TARV 12 BSC A3 and TARV 12 BDC B3
TARV 12 SBDA3NH Stainless steel tank bracket for TARV 12 BDC B3
TARV 12 SBS3 Stainless steel tank holder for TARV 12 BSC A3
TARV SPT Modular dust cap for oil collection (top hung opening, no hose fitting, no top cover). Suits a 55 mm center-to-center vertical distance between couplers.
TARVB2 76 Double TARV, 76 mm vertical distance between ports, straight rubber holder, internal rubber anti-splash diaphragm, no identifier discs
IDLP BI White line identifier ring for 13/16"-16 UN male ORFS threads
TARV 2 5590 Double TARV, 55 mm vertical distance between ports, 90° rubber holder, no identifier discs
KIT TARV12 D72 Spacer for TARV, TSRS and TSRD series (center to center distance between ports: 72 mm)
TSRD SPT Modular sliding dust cap for oil collection (anti-clockwise opening, no hose fitting, no top cover). Suits a 55 mm center-to-center vertical distance between couplers.
TSRS SPT Modular sliding dust cap for oil collection (clockwise opening, no hose fitting, no top cover). Suits a 55 mm center-to-center vertical distance between couplers.
KIT TARV12 D82 Spacer for TARV, TSRS and TSRD series (center to center distance between ports: 82 mm)
KIT TARVB OSM Spare kit for modular oil collection systems containing a rubber anti-splash diaphragm and its support
KIT PG D1 Spare part for double rubber holder assembled on modular oil-collection dust caps
KIT PG D2 Spare part for "T" rubber holder assembled on modular oil-collection dust caps
TARV 2 7290 Double TARV, 72 mm vertical distance between ports, 90° rubber holder, no identifier discs
SS 12 M TA R Docking station for 1/2" ISO 7241 series A male couplings with red flip cap
SS 12 M TA N Docking station for 1/2" ISO 7241 series A male couplings with black flip cap
TARV 2 61 Double TARV, 61 mm vertical distance between ports, straight rubber holder, no identifier discs
FFHB 08 TOOL Installation tool for FFHB cartridges size 1/2"
FFHB 12 TOOL Installation tool for FFHB cartridges size 3/4"
FFHB 06 TOOL Installation tool for FFHB cartridges size 3/8"
AD 08-NVF-FFHM ISO 16028 to ISO 5675 1/2" adapter (female flat face to female poppet valve or male poppet to male flat face)
AD 08-FFHF-NVM ISO 16028 to ISO 5675 1/2" adapter (male flat face to male poppet valve or female poppet to female flat face)
TARV 2 72SP Double TARV, 72 mm vertical distance between ports, no rubber holder, no identifier discs

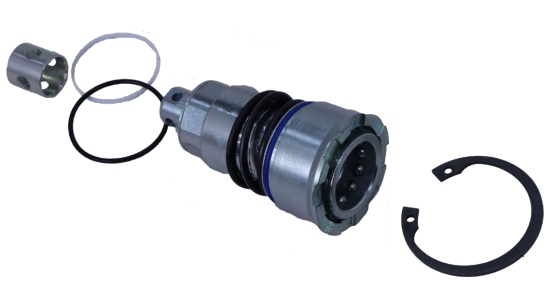

KIT AE+OR 4DCPV Spare Kit AE + OR GC 4DCPV H S2
KIT HOSE CLAMP Fixing clamps (250 pieces)
TAR 12 T8 "T" junction for 8 mm. diameter hoses
KIT TARV12 OR Spare part kit for o-ring ensuring sealing between bodies of TARV, TSRS, TSRD series
RF 04 TS095 Brass braze tubing adaptor for 1/4"couplings RF - RFL - RFLS series (D=9.7 mm)
D12 B Pusher (blue colour) fo Push-Pull ISO A size 12.5 (PV & CPV); for an easier connection and disconnection by hand.
