PVSM
Applications
Industrial High Pressure

Screw to connect couplings for high pressure, ISO 14540 interchange, ball valve

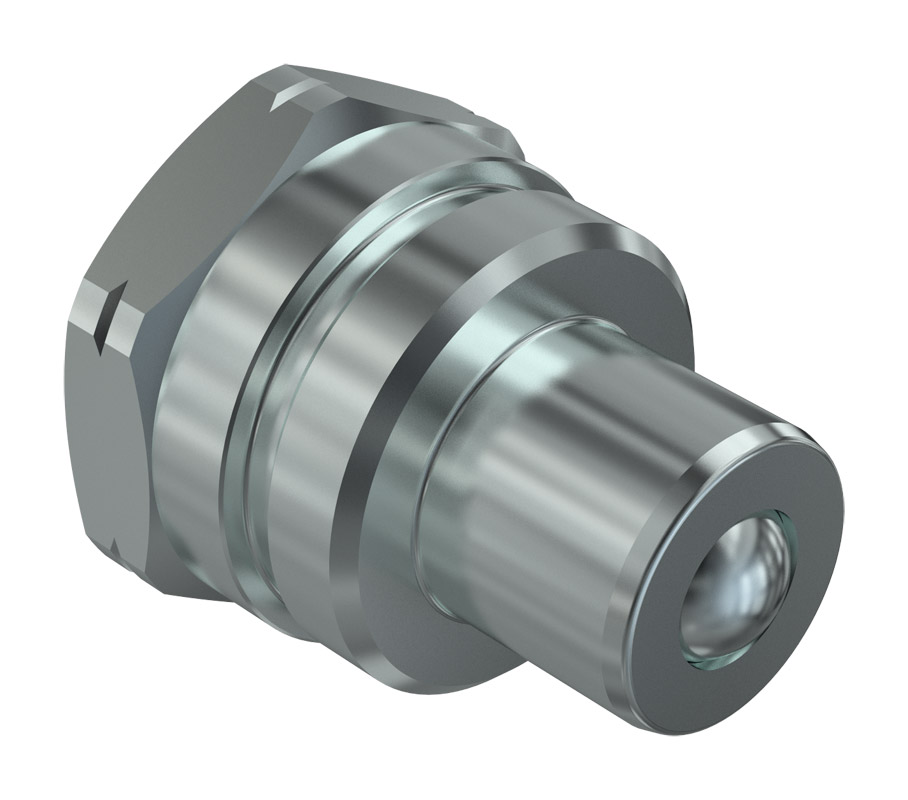

PVSM screw-to-connect couplings have been purposely designed for the heaviest applications in terms of working pressure. Equipped with a metal-to-metal sealing ball valve they are interchangeable according to ISO 14540 standards.
Downloads
Female

Female

Filter items
Units
PartNumber Thread Details
10 PVSM1/38NPT F NPTF 3/8" MALE
Specs
Flow Rate: 14 (l/min) at 0.2 MPa
Temperature: -25 °C to 125 °C
Seals: NBR
Weight: 275 g
36 77.5
Male

Male

Filter items
Units
PartNumber Thread Specs
10 PVSM 38 NPT M NPTF 3/8" FEMALE
Specs
Flow Rate: 14 (l/min) at 0.2 MPa
Temperature: -25 °C to 125 °C
Seals: NBR
Weight: 136 g
32 35.5 19 39
  • Dust Protections
  • Seals

Accessories & Spares

Seal kits
Size Thread Part Number
10 mm F SK PVVM 38
Technical Specifications
Dash Size Size (mm) Working Pressure Flow Rate (l/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
06 10 72 MPa 14 1 144 MPa 180 MPa 260 MPa
Material:
Steel
Seals:
NBR
Working temperatures:
-25 °C to 125 °C
Surface treatment:
MATE 500 (CrIII)
Specifications:
Series Interchange: ISO 14540
Valve Type: Ball
Connection: Screw to Connect
Disconnection: Unscrew to Disconnect
Connection Under Pressure: Allowed Residual

Pressure Drop

Data shown in the diagram are indicative and not binding.
(§) 1 MPa = 10 bar
Dash size are specified.

PVSM flow diagram
