Product series

HNVFR

Applications

Standard couplings for industrial applications, ISO 7241-B interchange, BOP certified

Special version derived from HNV couplings purposely designed for BOP applications and API certified. Interchangeable according to ISO 7241-B standards.

Downloads

Data sheet

Items
Specs

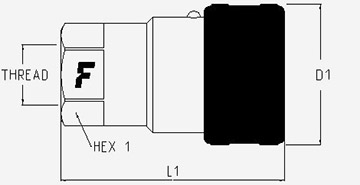

Female

Filter items

Units

PartNumber

Thread

12,5

HNVFR 12 NPT F

NPTF 1/2" FEMALE

Specs
Hex1:	30 mm 1.18"
D1:	47.2 mm 1.86"
L1:	72 mm 2.83"
Flow Rate:	75 (l/min) at 0.2 MPa 19.813 (gal/min) at 0.2 MPa
Temperature:	BOP to BOP BOP to BOP
Seals:	SPECIAL

HNVFR 34 NPT F

NPTF 3/4" FEMALE

Specs
Hex1:	36 mm 1.42"
D1:	56.2 mm 2.21"
L1:	89 mm 3.5"
Flow Rate:	190 (l/min) at 0.2 MPa 50.193 (gal/min) at 0.2 MPa
Temperature:	BOP to BOP BOP to BOP
Seals:	SPECIAL

HNVFR 1 NPT F

NPTF 1" FEMALE

Specs
Hex1:	41 mm 1.61"
D1:	62.2 mm 2.45"
L1:	106.4 mm 4.19"
Flow Rate:	270 (l/min) at 0.2 MPa 71.326 (gal/min) at 0.2 MPa
Temperature:	BOP to BOP BOP to BOP
Seals:	SPECIAL
Weight:	962.9 g 2.12 lb

Male

Filter items

Units

PartNumber

Thread

12,5

HNVFR 12 NPT M

NPTF 1/2" FEMALE

Specs
Hex1:	27 mm 1.06"
D1:	30 mm 1.18"
D3:	23.5 mm 0.93"
L1:	44 mm 1.73"
Flow Rate:	75 (l/min) at 0.2 MPa 19.813 (gal/min) at 0.2 MPa
Temperature:	BOP to BOP BOP to BOP
Seals:	SPECIAL

HNVFR 34 NPT M

NPTF 3/4" FEMALE

Specs
Hex1:	36 mm 1.42"
D1:	38 mm 1.5"
D3:	31.5 mm 1.24"
L1:	55 mm 2.17"
Flow Rate:	190 (l/min) at 0.2 MPa 50.193 (gal/min) at 0.2 MPa
Temperature:	BOP to BOP BOP to BOP
Seals:	SPECIAL

HNVFR 1 NPT M

NPTF 1" FEMALE

Specs
Hex1:	41 mm 1.61"
D1:	45 mm 1.77"
D3:	37.8 mm 1.49"
L1:	66 mm 2.6"
Flow Rate:	270 (l/min) at 0.2 MPa 71.326 (gal/min) at 0.2 MPa
Temperature:	BOP to BOP BOP to BOP
Seals:	SPECIAL
Weight:	482.3 g 1.06 lb

Dust Protections

Accessories & Spares

Dust Protection - PVC - Female

Size	Part Number	Color
1" 25 mm	TMH 1	Red
1/2" 12,5 mm	TMH 12	Red
3/4" 20 mm	TMH 34	Red
3/4" 20 mm	TMH 34 N	Black

Dust Protection - PVC - Male

Size	Part Number	Color
1" 25 mm	TFH 1	Red
1/2" 12,5 mm	TFH 12	Red
3/4" 20 mm	TFH 34	Red
3/4" 20 mm	TFH 34 N	Black

Technical Specifications

Burst pressure (MPa)

Dash Size	Size (mmInch)	Working Pressure	Flow Rate (l/mingal/min)	Spillage (ml)	Force to connect (N)	Male Burst pressure	Female Burst pressure	Male + Female Burst pressure
08	12.5 1/2"	21 MPa 3045.792 psi	75 19.813	2.8	97	140 MPa 140 20305.283 psi 20305.283	140 MPa 140 20305.283 psi 20305.283	150 MPa 150 21755.661 psi 21755.661
12	20 3/4"	21 MPa 3045.792 psi	190 50.193	10	120	110 MPa 110 15954.151 psi 15954.151	100 MPa 100 14503.774 psi 14503.774	100 MPa 100 14503.774 psi 14503.774
16	25 1"	23 MPa 3335.868 psi	270 71.326	13	180	120 MPa 120 17404.529 psi 17404.529	120 MPa 120 17404.529 psi 17404.529	120 MPa 120 17404.529 psi 17404.529

Material:
Steel

Seals:
SPECIAL

Working temperatures:
BOP to BOP

Surface treatment:
MATE 500 (CrIII) & Paint

Specifications:
Series Interchange: ISO 7241-B
Valve Type: Poppet
Connection: Sleeve Retraction
Disconnection: Sleeve Retraction
Connection Under Pressure: Not Allowed

Pressure Drop

Data shown in the diagram are indicative and not binding.
(§) 1 MPa = 10 bar
Dash size are specified.
