Product series

CVC

Applications

screw-to-connect couplings for construction equipment application

Screw-on couplings purposely designed for Caterpillar machines. Connectable under residual pressure. High resistance to pressure and flow impulses. Equipped with a hexagon-shaped sleeve and an external o-ring ensuring high friction and low risk of accidental disconnection due to vibrations.

Downloads

Data sheet

Items
Specs

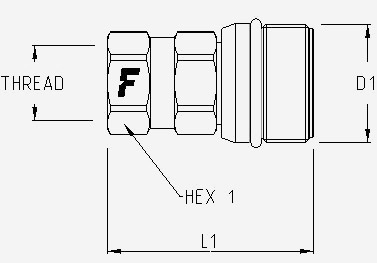

Female

Filter items

Units

PartNumber

Thread

12,5

CVC08 12 GAS F

BSPP 1/2" FEMALE

Specs
Hex1:	27 mm 1.06"
D1:	35 mm 1.38"
L1:	60 mm 2.36"
Flow Rate:	50 (l/min) at 0.2 MPa 13.209 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 125 °C -13 °F to 257 °F
Seals:	NBR
Weight:	209.1 g 0.46 lb

12,5

CVC08 58S F

7/8"-14 UNF FEMALE ORB

Specs
Hex1:	30 mm 1.18"
D1:	35 mm 1.38"
L1:	62 mm 2.44"
Flow Rate:	50 (l/min) at 0.2 MPa 13.209 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 125 °C -13 °F to 257 °F
Seals:	NBR
Weight:	236.7 g 0.52 lb

12,5

CVC080/2215 F

M22x1,5 FEMALE ORB

Specs
Hex1:	27 mm 1.06"
D1:	35 mm 1.38"
L1:	60 mm 2.36"
Flow Rate:	50 (l/min) at 0.2 MPa 13.209 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 125 °C -13 °F to 257 °F
Seals:	NBR
Weight:	200.2 g 0.44 lb

12,5

CVC0811/12S F

13/16"-16 UN MALE ORFS

Specs
Hex1:	27 mm 1.06"
D1:	35 mm 1.38"
L1:	58 mm 2.28"
Flow Rate:	50 (l/min) at 0.2 MPa 13.209 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 125 °C -13 °F to 257 °F
Seals:	NBR
Weight:	198.6 g 0.44 lb

12,5

CVC0812/12S F

13/16"-16 UN MALE BULKHEAD ORFS

Specs
Hex1:	27 mm 1.06"
D1:	35 mm 1.38"
L1:	80 mm 3.15"
Flow Rate:	50 (l/min) at 0.2 MPa 13.209 (gal/min) at 0.2 MPa
Seals:	NBR
Weight:	260 g 0.57 lb

12,5

CVC082/1815 F

M18x1,5 MALE 12L

Specs
Hex1:	27 mm 1.06"
D1:	35 mm 1.38"
L1:	56 mm 2.2"
Flow Rate:	50 (l/min) at 0.2 MPa 13.209 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 125 °C -13 °F to 257 °F
Seals:	NBR
Weight:	187.8 g 0.41 lb

12,5

CVC082/2215 F

M22x1,5 MALE 15L

Specs
Hex1:	27 mm 1.06"
D1:	35 mm 1.38"
L1:	57 mm 2.24"
Flow Rate:	50 (l/min) at 0.2 MPa 13.209 (gal/min) at 0.2 MPa
Seals:	NBR
Weight:	200 g 0.44 lb

CVC16 3015 F

M30x1,5 FEMALE

Specs
Hex1:	42 mm 1.65"
Hex3:	42 mm 1.65"
D1:	54 mm 2.13"
L1:	97 mm 3.82"
Flow Rate:	160 (l/min) at 0.2 MPa 42.268 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 125 °C -13 °F to 257 °F
Seals:	NBR
Weight:	803.2 g 1.77 lb

CVC16 78S F

1-3/16"-12 UN FEMALE ORB

Specs
Hex1:	42 mm 1.65"
Hex3:	42 mm 1.65"
D1:	54 mm 2.13"
L1:	97 mm 3.82"
Flow Rate:	160 (l/min) at 0.2 MPa 42.268 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 125 °C -13 °F to 257 °F
Seals:	NBR
Weight:	802.5 g 1.77 lb

CVC163/362 F

M36x2 MALE 25S

Specs
Hex1:	38 mm 1.5"
D1:	54 mm 2.13"
L1:	98 mm 3.86"
Flow Rate:	160 (l/min) at 0.2 MPa 42.268 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 125 °C -13 °F to 257 °F
Seals:	NBR
Weight:	731.5 g 1.61 lb

CVC1634/12 F

SAE FLANGE 3/4

Specs
Hex1:	42 mm 1.65"
D1:	54 mm 2.13"
L1:	96 mm 3.78"
Flow Rate:	160 (l/min) at 0.2 MPa 42.268 (gal/min) at 0.2 MPa
Seals:	NBR

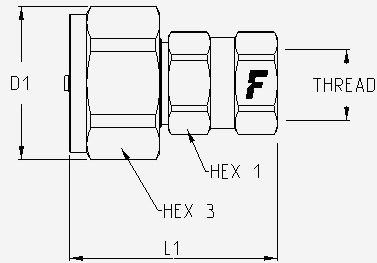

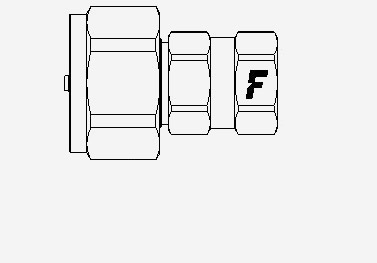

Male

Filter items

Units

PartNumber

Thread

12,5

CVC08 12 GAS M

BSPP 1/2" FEMALE

Specs
Hex1:	30 mm 1.18"
D1:	45 mm 1.77"
L1:	48 mm 1.89"
Flow Rate:	50 (l/min) at 0.2 MPa 13.209 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 125 °C -13 °F to 257 °F
Seals:	NBR
Weight:	239.9 g 0.53 lb

12,5

CVC08 58S M

7/8"-14 UNF FEMALE ORB

Specs
Hex1:	30 mm 1.18"
Hex3:	41 mm 1.61"
D1:	45 mm 1.77"
L1:	63 mm 2.48"
Flow Rate:	50 (l/min) at 0.2 MPa 13.209 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 125 °C -13 °F to 257 °F
Seals:	NBR
Weight:	265.8 g 0.59 lb

12,5

CVC080/2215 M

M22x1,5 FEMALE ORB

Specs
Hex1:	27 mm 1.06"
Hex3:	41 mm 1.61"
D1:	45 mm 1.77"
L1:	61 mm 2.4"
Flow Rate:	50 (l/min) at 0.2 MPa 13.209 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 125 °C -13 °F to 257 °F
Seals:	NBR
Weight:	230.9 g 0.51 lb

12,5

CVC081/12S M

3/4"-16 UNF MALE

Specs
Hex1:	27 mm 1.06"
Hex3:	41 mm 1.61"
D1:	45 mm 1.77"
L1:	57 mm 2.24"
Flow Rate:	50 (l/min) at 0.2 MPa 13.209 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 125 °C -13 °F to 257 °F
Seals:	NBR
Weight:	223.3 g 0.49 lb

12,5

CVC0812/12S M

13/16"-16 UN MALE BULKHEAD ORFS

Specs
Hex1:	27 mm 1.06"
Hex3:	41 mm 1.61"
D1:	45 mm 1.77"
L1:	80 mm 3.15"
Flow Rate:	50 (l/min) at 0.2 MPa 13.209 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 125 °C -13 °F to 257 °F
Seals:	NBR
Weight:	268.1 g 0.59 lb
* Not equipped with bulkhead nut.

12,5

CVC0812/58S M

1"-14 UNS MALE BULKHEAD ORFS

Specs
Hex1:	34 mm 1.34"
Hex3:	41 mm 1.61"
D1:	45 mm 1.77"
L1:	91 mm 3.58"
Flow Rate:	50 (l/min) at 0.2 MPa 13.209 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 125 °C -13 °F to 257 °F
Seals:	NBR
Weight:	366 g 0.81 lb

12,5

CVC082/2215 M

M22x1,5 MALE 15L

Specs
Hex1:	27 mm 1.06"
Hex3:	41 mm 1.61"
D1:	45 mm 1.77"
L1:	58 mm 2.28"
Flow Rate:	50 (l/min) at 0.2 MPa 13.209 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 125 °C -13 °F to 257 °F
Seals:	NBR
Weight:	224.9 g 0.5 lb

CVC16 1SAE M

1-5/16"-12 UN FEMALE ORB

Specs
Hex1:	42 mm 1.65"
Hex3:	65 mm 2.56"
D1:	72 mm 2.83"
L1:	91 mm 3.58"
Flow Rate:	160 (l/min) at 0.2 MPa 42.268 (gal/min) at 0.2 MPa
Seals:	NBR
Weight:	950 g 2.09 lb

CVC16 3015 M

M30x1,5 FEMALE

Specs
Hex1:	42 mm 1.65"
Hex3:	65 mm 2.56"
D1:	72 mm 2.83"
L1:	90 mm 3.54"
Flow Rate:	160 (l/min) at 0.2 MPa 42.268 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 125 °C -13 °F to 257 °F
Seals:	NBR
Weight:	950.1 g 2.09 lb

CVC16 78S M

1-3/16"-12 UN FEMALE ORB

Specs
Hex1:	42 mm 1.65"
Hex3:	65 mm 2.56"
D1:	72 mm 2.83"
L1:	90 mm 3.54"
Flow Rate:	160 (l/min) at 0.2 MPa 42.268 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 125 °C -13 °F to 257 °F
Seals:	NBR
Weight:	943.5 g 2.08 lb

CVC163/362 M

M36x2 MALE 25S

Specs
Hex1:	38 mm 1.5"
Hex3:	65 mm 2.56"
D1:	54 mm 2.13"
L1:	91 mm 3.58"
Flow Rate:	160 (l/min) at 0.2 MPa 42.268 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 125 °C -13 °F to 257 °F
Seals:	NBR
Weight:	879.5 g 1.94 lb

CVC163/422 M

M42x2 MALE 30S

Specs
Hex1:	46 mm 1.81"
Hex3:	65 mm 2.56"
D1:	72 mm 2.83"
L1:	88 mm 3.46"
Flow Rate:	160 (l/min) at 0.2 MPa 42.268 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 125 °C -13 °F to 257 °F
Seals:	NBR
Weight:	949.4 g 2.09 lb

CVC1634/12 M

SAE FLANGE 3/4

Specs
Hex1:	42 mm 1.65"
Hex3:	65 mm 2.56"
D1:	72 mm 2.83"
L1:	89 mm 3.5"
Flow Rate:	160 (l/min) at 0.2 MPa 42.268 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 125 °C -13 °F to 257 °F
Seals:	NBR
Weight:	1769.9 g 3.9 lb

Dust Protections
Seals

Accessories & Spares

Dust Protection - Aluminium - Female

Size	Part Number	Color
1/2" 12,5 mm	TMCVC 08 S	Metal
1" 25 mm	TMCVC 16 S	Metal

Dust Protection - Aluminium - Male

Size	Part Number	Color
1/2" 12,5 mm	TFCVC 08 S	Metal
1" 25 mm	TFCVC 16 S	Metal

Seal kits

Size	Thread	Part Number
12,5 mm	1/2"	F	SK CVC 08
25 mm	1"	F	SK CVC 16

Technical Specifications

Burst pressure (MPa)

Dash Size	Size (mmInch)	Working Pressure	Flow Rate (l/mingal/min)	Spillage (ml)	Male Burst pressure	Female Burst pressure	Male + Female Burst pressure
08	12.5 1/2"	34 MPa 4931.283 psi	50 13.209	2	102 MPa 102 14793.849 psi 14793.849	102 MPa 102 14793.849 psi 14793.849	105 MPa 105 15228.962 psi 15228.962
16	25 1"	34 MPa 4931.283 psi	160 42.268	10	112 MPa 112 16244.227 psi 16244.227	112 MPa 112 16244.227 psi 16244.227	112 MPa 112 16244.227 psi 16244.227

Material:
Steel

Seals:
NBR

Working temperatures:
-25 °C to 125 °C

Surface treatment:
MATE 500 (CrIII)

Specifications:
Series Interchange: MARKET
Valve Type: Poppet
Connection: Screw to Connect
Disconnection: Unscrew to Disconnect
Connection Under Pressure: Allowed Residual

Pressure Drop

Data shown in the diagram are indicative and not binding.
(§) 1 MPa = 10 bar
Dash size are specified.
