Product series
90° SWIVEL
Applications

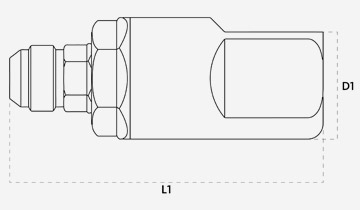

Taimi's 90°swivel is the result of a shank-nut assembly inserted into a housing. It is considered a stand alone swivel with a 90° thread.
Downloads
Data sheet
Items
Specs
Applications
Male
Male
Filter items
Units
Metric
Imperial
Size (mm)
10 mm
12.5 mm
20 mm
25 mm
31.5 mm
Size (mm)
Size (mm)
10 mm
12.5 mm
20 mm
25 mm
31.5 mm
Size (in)
3/8"
1/2"
3/4"
1"
1-1/4"
Size (in)
Size (in)
3/8"
1/2"
3/4"
1"
1-1/4"
PartNumber
Thread
Specs
D1
L1
10
3/8"
|3/8|
SZ90-F06M-F06F
Specs
Seals:
FKM
10
3/8"
|3/8|
SZ90-J06M-B06F
Specs
Seals:
FKM
12,5
1/2"
|1/2|
SZ90-F08M-B08F
Specs
Seals:
FKM
12,5
1/2"
|1/2|
SZ90-F08M-F08F
Specs
Seals:
FKM
12,5
1/2"
|1/2|
SZ90-J08M-B08F
3/4"-16 UNF MALE JIC
Specs
Thread:
3/4"-16 UNF MALE JIC - ISO 8434-2
Thread Outlet:
3/4"-16 UNF FEMALE ORB - ISO 11926-1
D1:
33 mm
1.3"
L1:
97.6 mm
3.84"
Seals:
FKM
* Ex reference S30813FS00FS-10V000
33
1.3
3.84
97.6
12,5
1/2"
|1/2|
SZ90-M20SM-B08F
Specs
Seals:
FKM
12,5
1/2"
|1/2|
SZ90-P08M-B08F
Specs
Seals:
FKM
12,5
1/2"
|1/2|
SZ90-S08M-B08F
Specs
Seals:
FKM
20
3/4"
|3/4|
SZ90-F12M-B12F
Specs
Seals:
FKM
20
3/4"
|3/4|
SZ90-F12M-F12F
Specs
Seals:
FKM
20
3/4"
|3/4|
SZ90-J12M-B12F
Specs
Seals:
FKM
20
3/4"
|3/4|
SZ90-M30SM-B12F
Specs
Seals:
FKM
20
3/4"
|3/4|
SZ90-P12M-B12F
Specs
Seals:
FKM
20
3/4"
|3/4|
SZ90-S12M-B12F
Specs
Seals:
FKM
25
1"
|1|
SZ90-F16M-B16F
Specs
Seals:
FKM
25
1"
|1|
SZ90-F16M-F16F
Specs
Seals:
FKM
25
1"
|1|
SZ90-J16M-B16F
Specs
Seals:
FKM
25
1"
|1|
SZ90-P16M-B16F
Specs
Seals:
FKM
25
1"
|1|
SZ90-S16M-B16F
Specs
Seals:
FKM
31,5
1-1/4"
|1-1/4|
SZ90-F20M-B20F
Specs
Seals:
FKM
31,5
1-1/4"
|1-1/4|
SZ90-J20M-B20F
Specs
Seals:
FKM
31,5
1-1/4"
|1-1/4|
SZ90-P20M-B20F
Specs
Seals:
FKM
31,5
1-1/4"
|1-1/4|
SZ90-S20M-B20F
Specs
Seals:
FKM
Forestry Harvester Heads
Roadside Maintenance Machines
Mining Trucks
Underground Mining Machines
Solar Concentrators
Technical Specifications
Dash Size
Size (
mm
Inch
)
Working Pressure
Burst pressure
08
12.5
1/2"
43 MPa
6236.623 psi
172 MPa
172 MPa
24946.491 psi
24946.491 psi
Material:
Steel
Seals:
FKM
Working temperatures:
-40 °C to 180 °C
-40 °F to 356 °F
Surface treatment:
CrIII
Warnings:
This product can expose you to chemicals such as Lead or Nickel which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to
www.p65warnings.ca.gov
.
