Product series
2NS
Applications
Agriculture

Standard couplings, ball valve, shielded

Male coupling for agriculture application, with ball valve and internal shielded valve-guide to prevent accidental disconnections caused by sudden backflow. ISO 7241 part A interchange.
Downloads
Male

Male

Filter items
Units
PartNumber Thread Specs
12,5 2NS 12 NPT M NPTF 1/2" FEMALE
Specs
Flow Rate: 40 (l/min) at 0.2 MPa
Temperature: -25 °C to 125 °C
Weight: 103 g

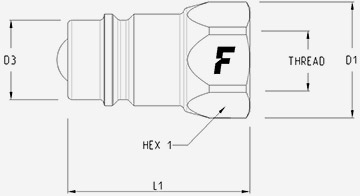

27 30 20.5 47
  • Dust Protections
  • Various Accessories

Accessories & Spares

Size (mm) Thread Part Number Material
12,5 SS 12 M Steel
12,5 SS 12 M TA R Steel & Plastic
12,5 SS 12 M TA N Steel & Plastic
12,5 MF AD 08-FFHF-NVM Steel
PVC caps male Dust Protection - PVC - Male
Size Part Number Color
12,5 mm
 TF 12
Blue
12,5 mm
 TF 12 A
Orange
12,5 mm
 TF 12 G
Yellow
12,5 mm
 TF 12 GR
Grey
12,5 mm
 TF 12 M
Brown
12,5 mm
 TF 12 N
Black
12,5 mm
 TF 12 R
Red
12,5 mm
 TF 12 V
Green
Aluminium caps male Dust Protection - Aluminium - Male
Size Part Number Color
12,5 mm
 TF 12 S
Metal
Technical Specifications
Dash Size Size (mm) Working Pressure Flow Rate (l/min) Spillage (ml) Force to connect (N) Male Burst pressure Male + Female Burst pressure
08 12.5 25 MPa 40 1.8 80 100 MPa 130 MPa
Material:
Steel
Working temperatures:
-25 °C to 125 °C
Surface treatment:
MATE 500 (CrIII)
Specifications:
Series Interchange: ISO 7241-A
Valve Type: Ball
Connection: Sleeve Retraction
Disconnection: Sleeve Retraction
Connection Under Pressure: Not Allowed

Pressure Drop

Data shown in the diagram are indicative and not binding.
(§) 1 MPa = 10 bar
Dash size are specified.

2NS flow diagram
