FLV
Applicazioni
Costruzioni

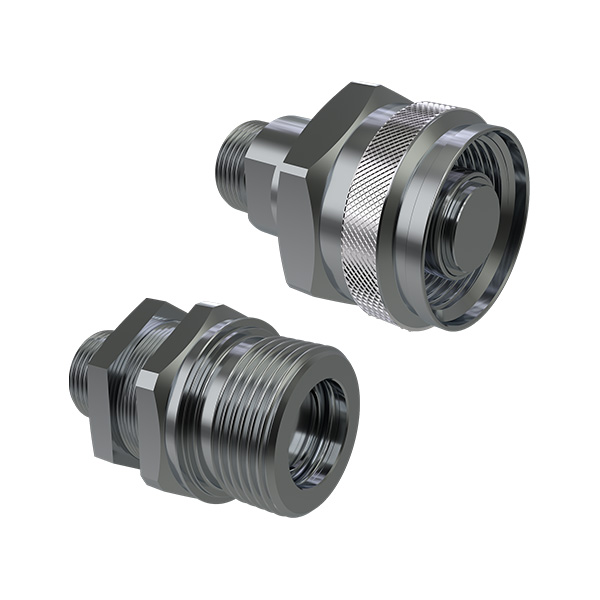

Screw-on flat face couplings, robust and compact design. Market interchange.

This series combines the advantages of flat face screw coupling technology with an extremely compact and robust design. Ideal for applications in which a flat face connection is required and there are no significant residual pressures to manage. The Zinc-Nickel plating guarantees a remarkable resistance to corrosion. Female couplers body allows panel installation.
Downloads
Femmina

Femmina

Filtra
Unità di Misura
Codice Prodotto Thread Details HEX1 HEX2 HEX3 D1 D3 L1 Connection Thread (D2)
10 3/8" FLV06-2/1415 F M14x1,5 MALE 8L
Specs
Portata: 32 (l/min) at 0.2 MPa 8,454 (gal/min) at 0.2 MPa
Guarnizioni: NBR
36 1,42 36 1,42 42 1,65 2,28 58 M32x3
10 3/8" FLV06-2/1615 F M16x1,5 MALE 12L
Specs
Portata: 32 (l/min) at 0.2 MPa 8,454 (gal/min) at 0.2 MPa
Guarnizioni: NBR
36 1,42 25 0,98 36 1,42 42 1,65 42 1,65 2,33 59,2 M32x3
10 3/8" FLV06-2/1815 F M18x1,5 MALE 12L
Specs
Portata: 32 (l/min) at 0.2 MPa 8,454 (gal/min) at 0.2 MPa
Guarnizioni: NBR
36 1,42 36 1,42 42 1,65 42 1,65 2,33 59,2 M32x3
10 3/8" FLV06-2/2215 F M22x1,5 MALE 15L
Specs
Portata: 32 (l/min) at 0.2 MPa 8,454 (gal/min) at 0.2 MPa
Guarnizioni: NBR
36 1,42 25 0,98 36 1,42 42 1,65 42 1,65 2,37 60,2 M32x3
10 3/8" FLV06-3/1815 F M18x1.5 MALE 10S
Specs
Portata: 32 (l/min) at 0.2 MPa 8,454 (gal/min) at 0.2 MPa
Guarnizioni: NBR
36 1,42 25 0,98 36 1,42 42 1,65 42 1,65 2,37 60,2 M32x3
10 3/8" FLV06-3/2015 F M20x1.5 MALE BULKHEAD 12S
Specs
Portata: 32 (l/min) at 0.2 MPa 8,454 (gal/min) at 0.2 MPa
Guarnizioni: NBR
36 1,42 25 0,98 36 1,42 42 1,65 42 1,65 2,37 60,2 M32x3
10 3/8" FLV06-3/2215 F M22x1.5 MALE 14S
Specs
Portata: 32 (l/min) at 0.2 MPa 8,454 (gal/min) at 0.2 MPa
Guarnizioni: NBR
36 1,42 25 0,98 36 1,42 42 1,65 42 1,65 2,45 62,2 M32x3
10 3/8" FLV06-3/2415 F M24x1,5 Male
Specs
Portata: 32 (l/min) at 0.2 MPa 8,454 (gal/min) at 0.2 MPa
Guarnizioni: NBR
36 1,42 25 0,98 36 1,42 42 1,65 42 1,65 2,45 62,2 M32x3
12,5 1/2" FLV08-2/2215 F M22x1,5 MALE 15L
Specs
Portata: 75 (l/min) at 0.2 MPa 19,813 (gal/min) at 0.2 MPa
Guarnizioni: NBR
41 1,61 41 1,61 47 1,85 2,76 70 M36x3
12,5 1/2" FLV08-3/2415 F M24x1,5 Male
Specs
Portata: 75 (l/min) at 0.2 MPa 19,813 (gal/min) at 0.2 MPa
Guarnizioni: NBR
41 1,61 41 1,61 47 1,85 47 1,85 2,83 72 M36x3
12,5 1/2" FLV08-3/3020 F M30x2 MALE 20S
Specs
Portata: 75 (l/min) at 0.2 MPa 19,813 (gal/min) at 0.2 MPa
Guarnizioni: NBR
41 1,61 41 1,61 47 1,85 47 1,85 2,93 74,5 M36x3
20 3/4" FLV12-2/2215 F M22x1,5 MALE 15L
Specs
Portata: 120 (l/min) at 0.2 MPa 31,701 (gal/min) at 0.2 MPa
Guarnizioni: NBR
55 2,17 50 1,97 61 2,4 3,19 81 M48x3
20 3/4" FLV12-2/2615 F M26x1,5 MALE 18L
Specs
Portata: 120 (l/min) at 0.2 MPa 31,701 (gal/min) at 0.2 MPa
Guarnizioni: NBR
55 2,17 36 1,42 50 1,97 61 2,4 3,19 81 M48x3
20 3/4" FLV12-3/2415 F M24x1,5 MALE 16S
Specs
Portata: 120 (l/min) at 0.2 MPa 31,701 (gal/min) at 0.2 MPa
Guarnizioni: NBR
55 2,17 50 1,97 61 2,4 3,27 83 M48x3
20 3/4" FLV12-3/3020 F M30x2 MALE 20S
Specs
Portata: 120 (l/min) at 0.2 MPa 31,701 (gal/min) at 0.2 MPa
Guarnizioni: NBR
55 2,17 36 1,42 50 1,97 61 2,4 3,35 85 M48x3
25 1" FLV16-2/2615 F M26x1,5 MALE 18L
Specs
Portata: 165 (l/min) at 0.2 MPa 43,588 (gal/min) at 0.2 MPa
Guarnizioni: NBR
60 2,36 46 1,81 70 2,76 3,78 96 M54x4
25 1" FLV16-2/3020 F M30x2 MALE 22L
Specs
Portata: 165 (l/min) at 0.2 MPa 43,588 (gal/min) at 0.2 MPa
Guarnizioni: NBR
55 2,17 46 1,81 60 2,36 62 2,44 70 2,76 3,86 98 M54x4
25 1" FLV16-2/3620 F M36x2 MALE 28L
Specs
Portata: 165 (l/min) at 0.2 MPa 43,588 (gal/min) at 0.2 MPa
Guarnizioni: NBR
55 2,17 46 1,81 60 2,36 62 2,44 70 2,76 3,86 98 M54x4
25 1" FLV16-3/3020 F M30x2 MALE 20S
Specs
Portata: 165 (l/min) at 0.2 MPa 43,588 (gal/min) at 0.2 MPa
Guarnizioni: NBR
55 2,17 46 1,81 60 2,36 62 2,44 70 2,76 3,98 101 M54x4
25 1" FLV16-3/3620 F M36x2 MALE 25S
Specs
Portata: 165 (l/min) at 0.2 MPa 43,588 (gal/min) at 0.2 MPa
Guarnizioni: NBR
55 2,17 46 1,81 60 2,36 62 2,44 70 2,76 4,06 103 M54x4
25 1" FLV16-3/4220 F M42x2 MALE 30S
Specs
Portata: 165 (l/min) at 0.2 MPa 43,588 (gal/min) at 0.2 MPa
Guarnizioni: NBR
55 2,17 60 2,36 70 2,76 4,29 109 M54x4
31,5 1-1/4" FLV20-2/4520 F M45x2 MALE 35L
Specs
Portata: 430 (l/min) at 0.2 MPa 113,594 (gal/min) at 0.2 MPa
Guarnizioni: NBR
85 3,35 55 2,17 89,8 3,54 100 3,94 5,08 129 M79x4
31,5 1-1/4" FLV20-3/5220 F M52x2 MALE 38S
Specs
Portata: 430 (l/min) at 0.2 MPa 113,594 (gal/min) at 0.2 MPa
Guarnizioni: NBR
85 3,35 55 2,17 89,8 3,54 100 3,94 5,2 132 M79x4
Maschio

Maschio

Filtra
Unità di Misura
Codice Prodotto Thread Specs HEX1 HEX3 D1 L1 Connection Thread (D2)
10 3/8" FLV06-2/1415 M M14x1,5 MALE 8L
Specs
Portata: 32 (l/min) at 0.2 MPa 8,454 (gal/min) at 0.2 MPa
Guarnizioni: NBR
41 1,61 22 0,87 46 1,81 2,48 63 M32x3
10 3/8" FLV06-2/1615 M M16x1,5 MALE 12L
Specs
Portata: 32 (l/min) at 0.2 MPa 8,454 (gal/min) at 0.2 MPa
Guarnizioni: NBR
41 1,61 22 0,87 46 1,81 2,52 64 M32x3
10 3/8" FLV06-2/1815 M M18x1,5 MALE 12L
Specs
Portata: 32 (l/min) at 0.2 MPa 8,454 (gal/min) at 0.2 MPa
Guarnizioni: NBR
41 1,61 22 0,87 46 1,81 2,52 64 M32x3
10 3/8" FLV06-2/2215 M M22x1,5 MALE 15L
Specs
Portata: 32 (l/min) at 0.2 MPa 8,454 (gal/min) at 0.2 MPa
Guarnizioni: NBR
41 1,61 22 0,87 46 1,81 2,56 65 M32x3
10 3/8" FLV06-3/1815 M M18x1.5 MALE 10S
Specs
Portata: 32 (l/min) at 0.2 MPa 8,454 (gal/min) at 0.2 MPa
Guarnizioni: NBR
41 1,61 22 0,87 46 1,81 2,56 65 M32x3
10 3/8" FLV06-3/2015 M M20x1,5 Male
Specs
Portata: 32 (l/min) at 0.2 MPa 8,454 (gal/min) at 0.2 MPa
Guarnizioni: NBR
41 1,61 22 0,87 46 1,81 2,56 65 M32x3
10 3/8" FLV06-3/2215 M M22x1.5 MALE 14S
Specs
Portata: 32 (l/min) at 0.2 MPa 8,454 (gal/min) at 0.2 MPa
Guarnizioni: NBR
41 1,61 22 0,87 46 1,81 2,64 67 M32x3
10 3/8" FLV06-3/2415 M M24x1,5 Male
Specs
Portata: 32 (l/min) at 0.2 MPa 8,454 (gal/min) at 0.2 MPa
Guarnizioni: NBR
41 1,61 22 0,87 46 1,81 2,64 67 M32x3
12,5 1/2" FLV08-2/2215 M M22x1,5 MALE 15L
Specs
Portata: 75 (l/min) at 0.2 MPa 19,813 (gal/min) at 0.2 MPa
Guarnizioni: NBR
46 1,81 24 0,94 52 2,05 2,89 73,4 M36x3
12,5 1/2" FLV08-3/2415 M M24x1,5 Male
Specs
Portata: 75 (l/min) at 0.2 MPa 19,813 (gal/min) at 0.2 MPa
Guarnizioni: NBR
46 1,81 24 0,94 52 2,05 2,97 75,4 M36x3
12,5 1/2" FLV08-3/3020 M M30x2 MALE 20S
Specs
Portata: 75 (l/min) at 0.2 MPa 19,813 (gal/min) at 0.2 MPa
Guarnizioni: NBR
46 1,81 24 0,94 54 2,13 3,05 77,4 M36x3
20 3/4" FLV12-2/2215 M M22x1,5 MALE 15L
Specs
Portata: 120 (l/min) at 0.2 MPa 31,701 (gal/min) at 0.2 MPa
Guarnizioni: NBR
60 2,36 32 1,26 68 2,68 3,31 84 M48x3
20 3/4" FLV12-2/2615 M M26x1,5 MALE 18L
Specs
Portata: 120 (l/min) at 0.2 MPa 31,701 (gal/min) at 0.2 MPa
Guarnizioni: NBR
60 2,36 32 1,26 68 2,68 3,31 84 M48x3
20 3/4" FLV12-3/2415 M M24x1,5 MALE 16S
Specs
Portata: 120 (l/min) at 0.2 MPa 31,701 (gal/min) at 0.2 MPa
Guarnizioni: NBR
60 2,36 32 1,26 68 2,68 3,39 86 M48x3
20 3/4" FLV12-3/3020 M M30x2 MALE 20S
Specs
Portata: 120 (l/min) at 0.2 MPa 31,701 (gal/min) at 0.2 MPa
Guarnizioni: NBR
60 2,36 32 1,26 68 2,68 3,46 88 M48x3
25 1" FLV16-2/2615 M M26x1,5 MALE 18L
Specs
Portata: 165 (l/min) at 0.2 MPa 43,588 (gal/min) at 0.2 MPa
Guarnizioni: NBR
55 2,17 41 1,61 65 2,56 4,21 107 M54x4
25 1" FLV16-2/3020 M M30x2 MALE 22L
Specs
Portata: 165 (l/min) at 0.2 MPa 43,588 (gal/min) at 0.2 MPa
Guarnizioni: NBR
55 2,17 41 1,61 65 2,56 4,29 109 M54x4
25 1" FLV16-2/3620 M M36x2 MALE 28L
Specs
Portata: 165 (l/min) at 0.2 MPa 43,588 (gal/min) at 0.2 MPa
Guarnizioni: NBR
55 2,17 41 1,61 65 2,56 4,29 109 M54x4
25 1" FLV16-3/3020 M M30x2 MALE 20S
Specs
Portata: 165 (l/min) at 0.2 MPa 43,588 (gal/min) at 0.2 MPa
Guarnizioni: NBR
55 2,17 41 1,61 65 2,56 4,37 111 M54x4
25 1" FLV16-3/3620 M M36x2 MALE 25S
Specs
Portata: 165 (l/min) at 0.2 MPa 43,588 (gal/min) at 0.2 MPa
Guarnizioni: NBR
55 2,17 41 1,61 65 2,56 4,45 113 M54x4
25 1" FLV16-3/4220 M M42x2 MALE 30S
Specs
Portata: 165 (l/min) at 0.2 MPa 43,588 (gal/min) at 0.2 MPa
Guarnizioni: NBR
55 2,17 41 1,61 65 2,56 4,53 115 M54x4
31,5 1-1/4" FLV20-2/4520 M M45x2 MALE 35L
Specs
Portata: 430 (l/min) at 0.2 MPa 113,594 (gal/min) at 0.2 MPa
Guarnizioni: NBR
80 3,15 55 2,17 90 3,54 5,35 136 M79x4
31,5 1-1/4" FLV20-3/5220 M M52x2 MALE 38S
Specs
Portata: 430 (l/min) at 0.2 MPa 113,594 (gal/min) at 0.2 MPa
Guarnizioni: NBR
80 3,15 55 2,17 90 3,54 5,35 136 M79x4
  • Tappi per Innesti
  • Guarnizioni

Accessori e Ricambi

Plastica caps female Tappi di Protezione - Plastica - Femmina
Dimensioni Codice Colore
3/8"
10 mm
 TMFLV06
Red
1/2"
12,5 mm
 TMFLV08
Red
3/4"
20 mm
 TMFLV12
Red
Plastica caps male Tappi di Protezione - Plastica - Maschio
Dimensioni Codice Colore
3/8"
10 mm
 TFFLV06
Red
1/2"
12,5 mm
 TFFLV08
Red
3/4"
20 mm
 TFFLV12
Red
Alluminio caps female Tappi di Protezione - Alluminio - Femmina
Dimensioni Codice Colore
3/4"
20 mm
 TMFLV12 S
Metal
1"
25 mm
 TMFLV16 S
Metal
1-1/4"
31,5 mm
 TMFLV20 S
Metal
Alluminio caps male Tappi di Protezione - Alluminio - Maschio
Dimensioni Codice Colore
3/4"
20 mm
 TFFLV12 S
Metal
1"
25 mm
 TFFLV16 S
Metal
1-1/4"
31,5 mm
 TFFLV20 S
Metal
Guarnizioni
Size Thread Codice
10 mm 3/8" F SK FLV06 F
12,5 mm 1/2" F SK FLV08 F
20 mm 3/4" F SK FLV12 F
25 mm 1" F SK FLV16 F
31,5 mm 1-1/4" F SK FLV20 F
Specifiche Tecniche
Dash Size Dimensioni (mmInch) Pressione di esercizio Portata (l/mingal/min) Fuoriuscita (ml) Maschio Pressione di Scoppio Femmina Pressione di Scoppio Maschio + Femmina Pressione di Scoppio
06 10 3/8" 42 MPa 6091,585 psi 32 8,454 0,02 130 MPa 18854,906 psi 140 MPa 20305,283 psi 250 MPa 36259,435 psi
08 12,5 1/2" 42 MPa 6091,585 psi 75 19,813 0,02 130 MPa 18854,906 psi 130 MPa 18854,906 psi 200 MPa 29007,548 psi
12 20 3/4" 42 MPa 6091,585 psi 120 31,701 0,06 120 MPa 17404,529 psi 130 MPa 18854,906 psi 130 MPa 18854,906 psi
16 25 1" 42 MPa 6091,585 psi 165 43,588 0,1 130 MPa 18854,906 psi 140 MPa 20305,283 psi 170 MPa 24656,415 psi
20 31,5 1-1/4" 42 MPa 6091,585 psi 430 113,594 1 120 MPa 17404,529 psi 120 MPa 17404,529 psi 130 MPa 18854,906 psi
Materiale:
Acciaio
Guarnizioni:
NBR
Temperature di lavoro:
-25 °C to 100 °C -13 °F to 212 °F
Trattamento della superficie:
MATE 1000 (ZnNi)
Specifiche:
Series Interchange: MARKET
Tipo Valvola: a Sfera Piana
Connessione: Avvitare per collegare
Disconnessione: Svitare per scollegare
Connessione in Pressione: Non consentita

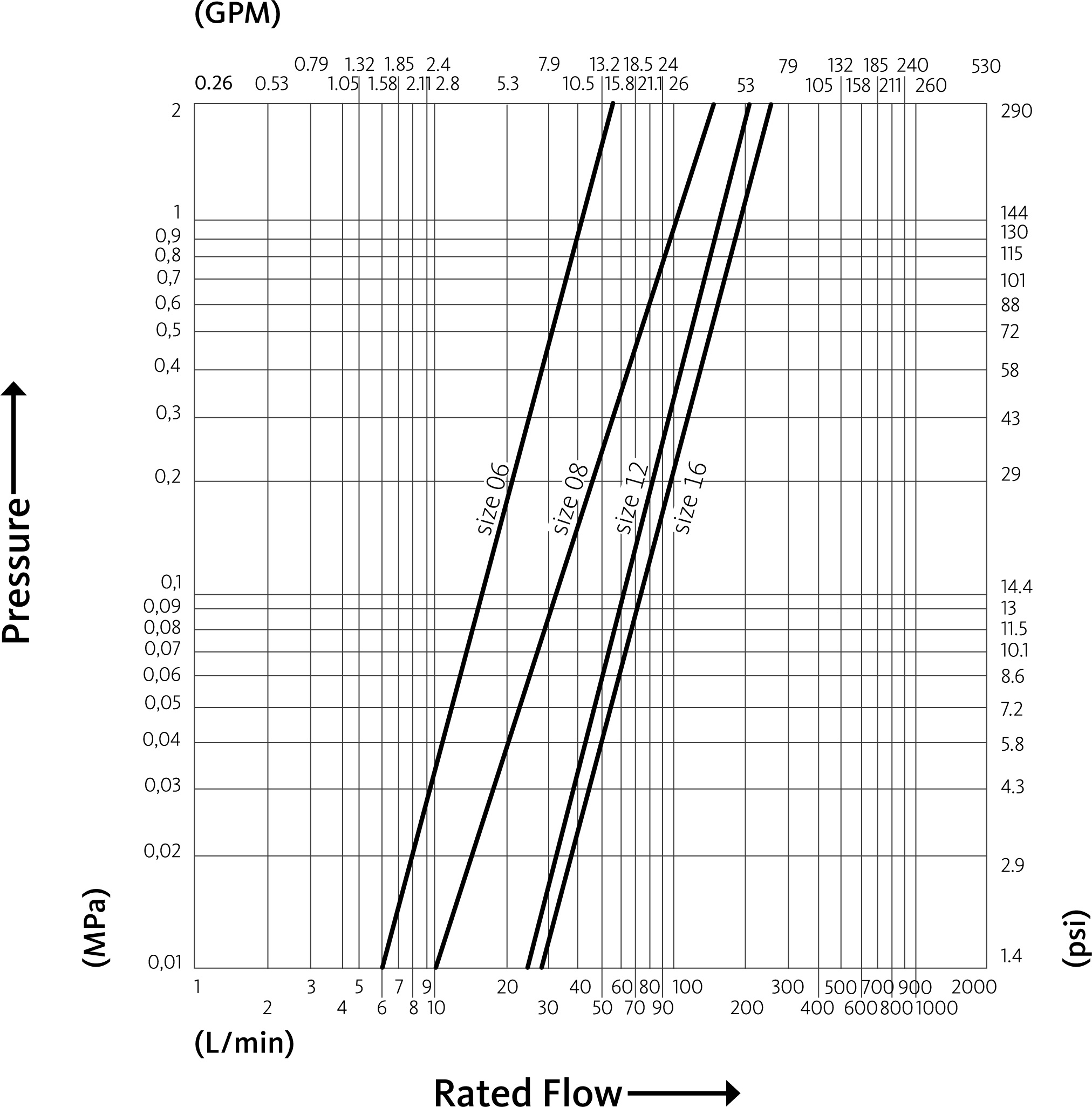

Perdita di Carico

I dati riportati nel diagramma sono indicativi e non vincolanti.
(§) 1 MPa = 10 bar
Le dimensioni sono riportate nel grafico.

FLV flow diagram
