Auxiliary Lines Block (3+2 HF ports)
Anwendungsbereich
Baubranche

Castings with 5 couplings (standard and high flow lines) for construction equipment

5 Lines blocks make machines more versatile and suitable for a wide range of attachments thanks to 5 quick-couplings hosted in one single casting: two couplings 1/2”, two couplings 3/4” for high flow applications and one 3/8” to connect drain lines. The blocks can be hooked up to the machine hydraulic circuit by means of 2 input ports. Hydraulic decompression of the 1/2" lines is performed through the same patented system implemented on the 3-ports auxiliary lines blocks, whereas decompression of the 3/4" lines is achieved through a manual activation. Items shown into this section are off the shelf products not requiring any further design development or investment for production tools.
Downloads

Male & Female

Filtern
Maßeinheit

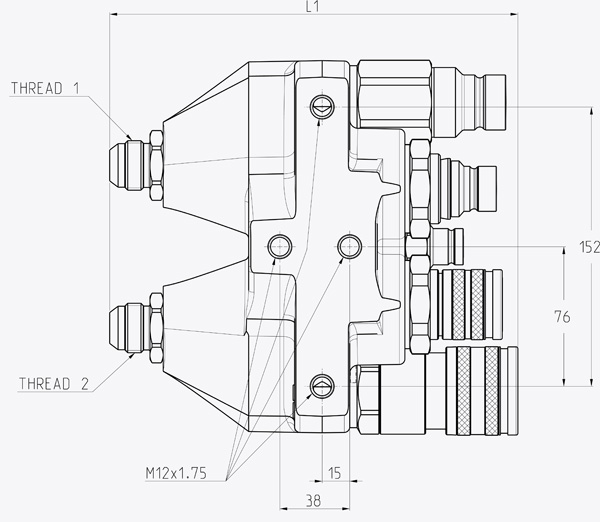

Produktcode Thread Details L1 L2 Gehäuse Kupplungen
12,5 & 20 3/4" & 1/2" 5BDHF0812-13/34S 1-1/16"-12 UN MALE JIC
Specs
2 x Kupplungen 3/4":1-1/16"-12 UN MALE JIC - ISO 8434-2
Durchfluss: 146 (l/min) at 0.2 MPa 38,569 (gal/min) at 0.2 MPa
2 x Kupplungen 1/2":1-1/16"-12 UN MALE JIC - ISO 8434-2
Durchfluss: 69 (l/min) at 0.2 MPa 18,228 (gal/min) at 0.2 MPa
Temperatur: -25 °C to 100 °C -13 °F to 212 °F
Dichtungen: NBR & PUR
Gewicht: 10000 g 22,05 lb
8,74 222,1 7,90,2,0,2 202,5 5 5
  • Accessories for 4BD4FH
  • Dichtungen

Zubehör

Size (mm) Size (in) Thread Code Material
KIT 4BD-13/34S Stahl
10 3/8" KIT 4BD-FFH06M Stahl
12,5 1/2" KIT 4FH08 F Stahl
12,5 1/2" KIT 4FH08 M Stahl
Seal kits
Size Thread Code
10 mm 3/8" SK FFH06
12,5 mm 1/2" SK FFH08
Technische Daten
Dash Size Size (mmInch) Arbeitsdruck Durchfluss (l/mingal/min) Spillage (ml) Force to connect (N) Stecker Berstdruck Muffe Berstdruck Stecker + Muffe Berstdruck
08 12,5 1/2" 35 MPa 5076,321 psi 69 18,228 0,01 200 100 MPa 14503,774 psi 100 MPa 14503,774 psi 100 MPa 14503,774 psi
12 20 3/4" 35 MPa 5076,321 psi 146 38,569 0,02 215 100 MPa 14503,774 psi 100 MPa 14503,774 psi 100 MPa 14503,774 psi
Material:
Gusseisen & Stahl
Dichtungen:
NBR & PUR
Betriebstemperaturen:
-25 °C to 100 °C -13 °F to 212 °F
Oberflächenbehandlung:
MATE 500 (CrIII) & MATE 1000 (ZnNi)
Technische Daten:
Austauschbarkeit Serien: ISO 16028
Ventiltyp: Flach
Verbinden: Zum Verbinden drücken
Trennen: Hülse zurückziehen
Verbindung bei anstehendem Druck: Mit Druck in beiden Buchse/Stecker
